Fortigate uses VIP of down Interface (Bug?)

  • October 31, 2024
  • 1 reply
  • 1645 views

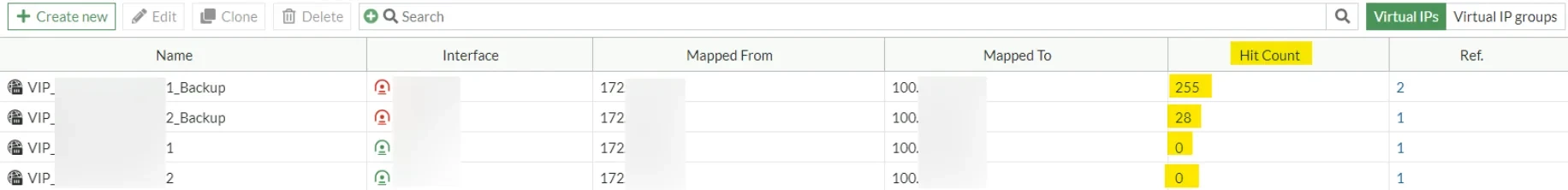

Some weird behavior I saw today. I'm doing NAT for two VLANs on a branch FGT with two VPN tunnels, so four VIPs in total. Two VIPs for the primary tunnel and two for the backup tunnel. In noticed that only the VIPs that reference the backup tunnel have a hit count (which has always been down so far). I attached a screenshot of that:




Only when I reference the backup VIP in a policy, ping to the VIP works, even though it clearly uses a tunnel that isn't even up! How can that be? When I use the primary VIP in the policy, ping doesn't work bc of implicit deny.

In grouped both IPsec interfaces shown here into a zone, maybe that has something to do with that?

1 reply

pminarik
Staff
pminarik
Staff
October 31, 2024

Packet to a local IP doesn't have to come through its own interface. So likely there was a packet coming in over <another interface> with dst-ip = <VIP[...]backup>, and it was processed like that.

smxko
smxkoAuthor
Visitor III
October 31, 2024

Ok, so basically I don't need backup VIPs, even when ingress traffic for that VIP can originate from a different interface?

pminarik
Staff
pminarik
Staff
October 31, 2024

Not necessary, yup.
As a matter of fact, you can just bind the VIPs to "any" interface, and control the access by deciding in which firewall policies you use the VIPs (=> controlling the permitted srcintf). The source tunnel/interface will not matter then, as long as the direction of flow is allowed by a firewall policy.
