Fortigate static routes and policies dont't work with VPN

  • November 4, 2022
  • 2 replies
  • 3097 views

Hi,

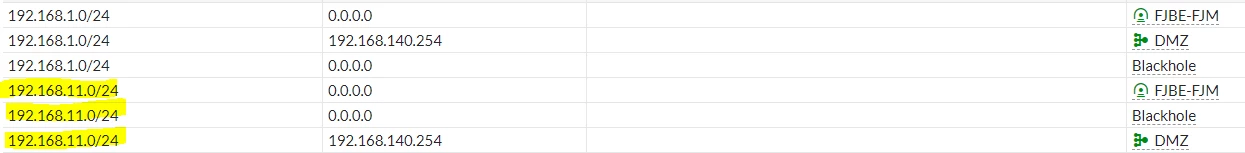

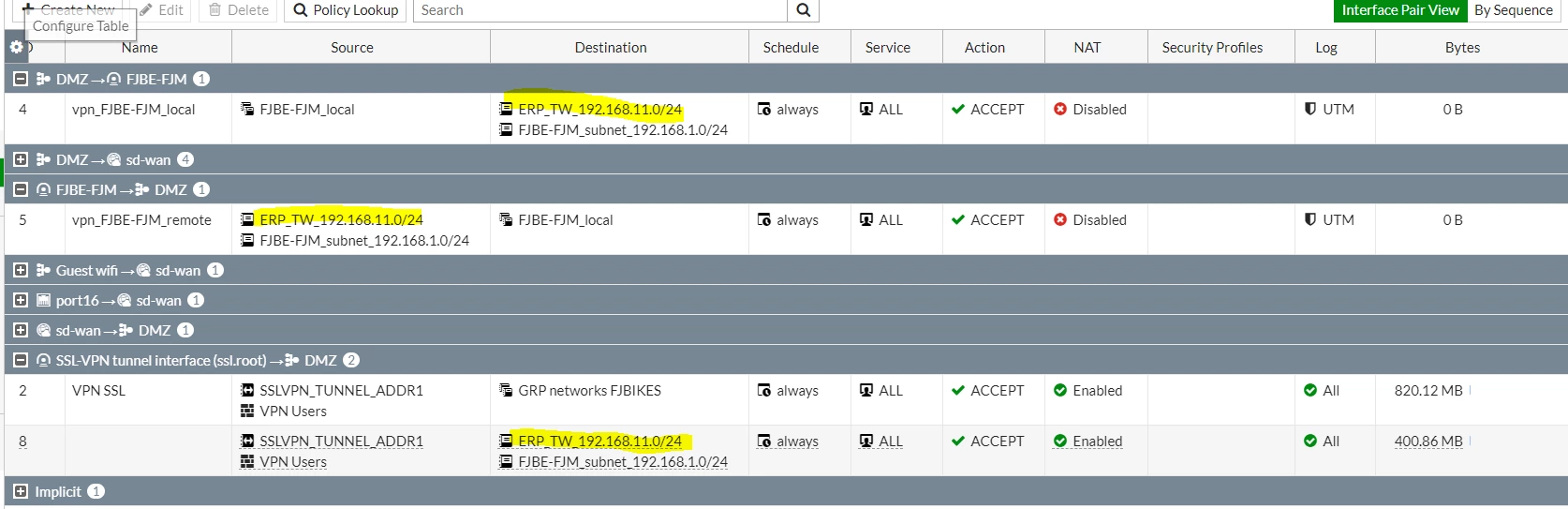

I have static routes and some policies to a IP range that don't work properly in FortiGate #

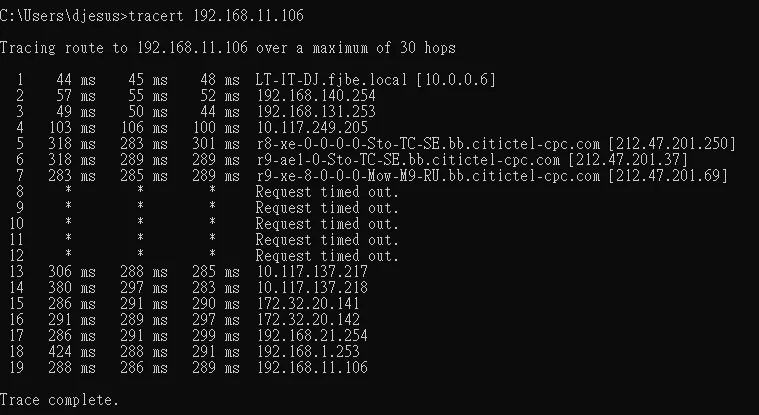

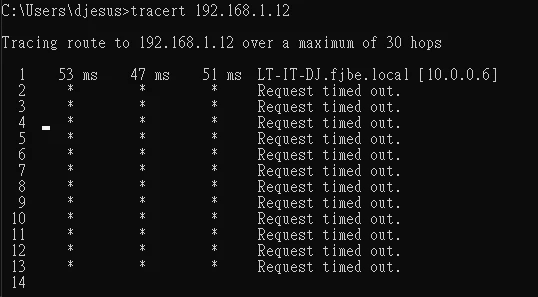

Yellow works correctly but the other one doesn't.











2 replies

akristof
Staff
akristof
Staff
November 4, 2022

Hello,

Simple debug flow should give you more information what is happening and why the traffic is not working.

https://docs.fortinet.com/document/fortigate/6.2.3/cookbook/54688/debugging-the-packet-flow

inferi
inferiAuthor
New Member
November 4, 2022

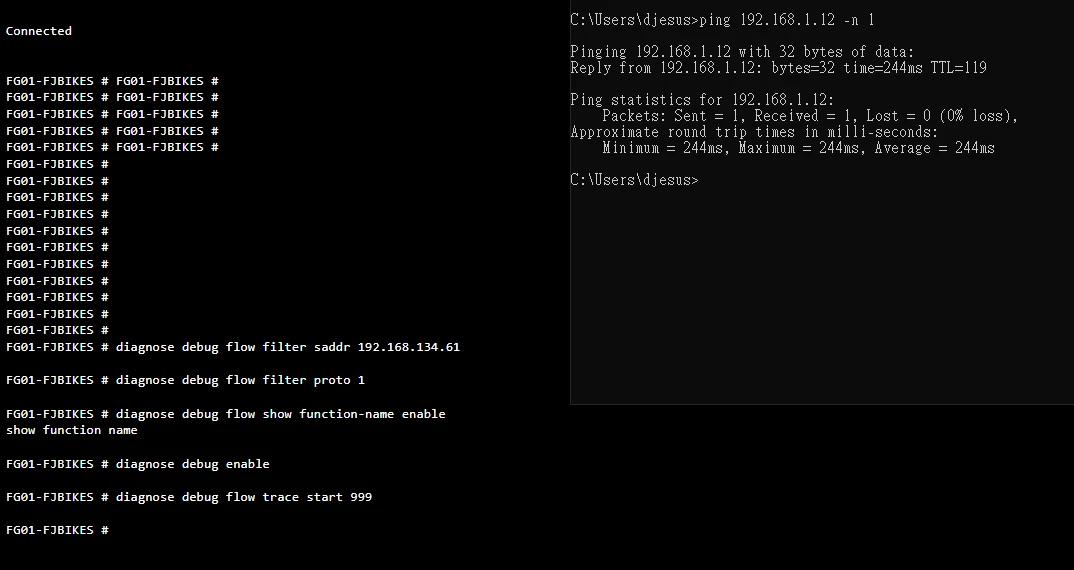

Doesnt work :(




Toshi_Esumi
SuperUser
Toshi_Esumi
SuperUser
November 4, 2022

First, use the destination IP 192.168.1.12 for the filter then don't specify protocol #.
Then you might need to disable ASIC offloading with "set auto-asic-offload diable" on the policy ID 4 and 5. Don't forget to re-enable after your test. It would affect its performance.



Toshi

Toshi_Esumi
SuperUser
Toshi_Esumi
SuperUser
November 4, 2022

The working one from 192.168.140.253 to 192.168.11.106 is, at least, not going to FJBE-FJM tunnel as the debug result is showing.


While non-working one, which is sourced from 172.31.254.2 to 192.168.1.12 showing what I would expect when a packet is going into a tunnel.

Even if you don't know how to read the sequence, at least you can read below:


"enter IPsec interface-FJBE-FJM"



Are those source subnets included in the phase2 network selectors? To run a ping test from the FGT itself, you likely need to set the source with "exe ping-option source" to match the selectors.



Toshi
