Fortigate SDWAN with Cisco ASR1K

Forum|Forum|1 year ago
November 22, 2024
3 replies
1240 views

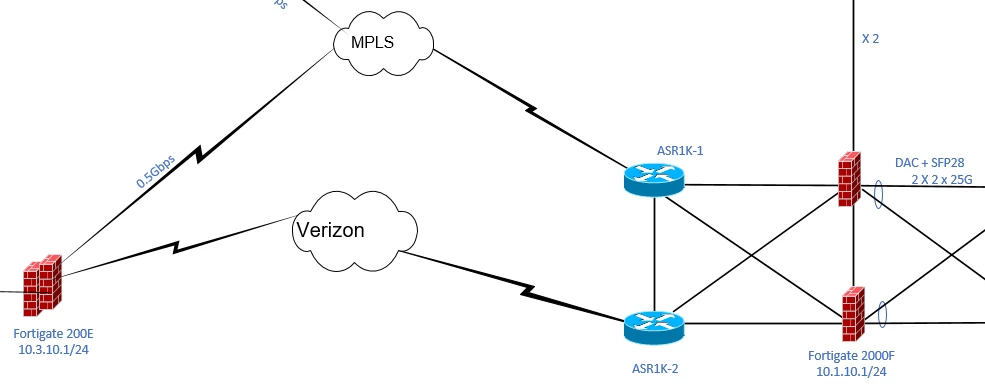

Hi, Please see the below diagram which shows connection for fortigate SDWAN. My question is after adding two Cisco ASR1K in front of Fortigate, what special configuration do we have to add so that we can let the fortigate SDWAN work well? Thanks

Best answer by hbac

Hi @fortinet-davidy,

Your diagram looks good. I don't think you need any special configuration for SDWAN if it is already working. You can refer to https://docs.fortinet.com/document/fortigate/7.6.0/administration-guide/23145/sd-wan-with-fgcp-ha

Regards,

hbacAnswer

Staff

Hi @fortinet-davidy,

Your diagram looks good. I don't think you need any special configuration for SDWAN if it is already working. You can refer to https://docs.fortinet.com/document/fortigate/7.6.0/administration-guide/23145/sd-wan-with-fgcp-ha

Regards,

fortinet-davidyAuthor

New Member

Great! Thank you!

fortinet-davidyAuthor

New Member

One more question, when fortigate is connected to isp interface, sdwan in fortigate can detect these interface and allow us to add isp interface into some zone of sdwan, but after adding two asr1k at front of fortigate, the fortigate still can feel the isp interface to allow us to add isp interface into sdwan zone?
