Fortigate MGMT (dedicated) access over IPSEC

  • October 20, 2022
  • 1 reply
  • 2583 views

Hi all,

My first post here!

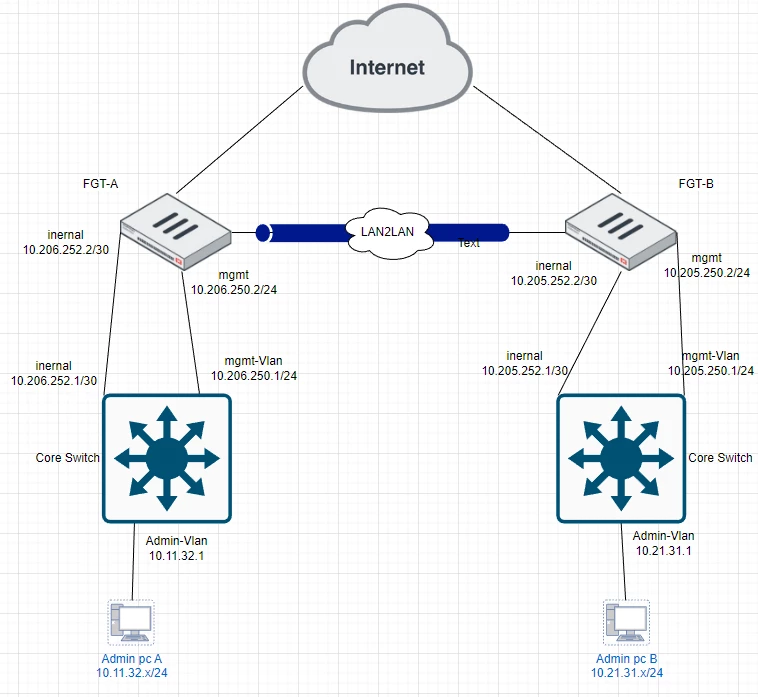

I am trying to deploy FGT (V7.0.8) on two sites, each FGT with its own dedicated mgmt interface, and have HTTPS access over an IPSEC tunnel, diagram below:



From the local site, each admin pc can access the local FGT web interface, the issue starts when the admin at pc A tries to access the FGT-B web interface tunnel and when the admin at pc B tries to access the FGT-A web interface.



mgmt interface configuration of each FGT below:
FGT-A:



config system interface edit "mgmt" set vdom "root" set ip 10.206.250.2 255.255.255.0 set allowaccess ping https ssh fgfm fabric set type physical set dedicated-to management set snmp-index 2 set trust-ip-1 10.21.31.0 255.255.255.0 set trust-ip-2 10.11.32.0 255.255.255.0 next




FGT-B:



config system interface edit "mgmt" set vdom "root" set ip 10.205.250.2 255.255.255.0 set allowaccess ping https ssh fgfm fabric set type physical set dedicated-to management set snmp-index 2 set trust-ip-1 10.21.31.0 255.255.255.0 set trust-ip-2 10.11.32.0 255.255.255.0 next





Diagnose debug flow from FGT-A when admin B tries to access FGT-A icmp/ping





2022-10-20 18:59:49 id=20085 trace_id=1505 func=print_pkt_detail line=5871 msg="vd-root:0 received a packet(proto=1, 10.21.31.53:2->10.206.250.2:2048) tun_id=169.254.111.1 from vpn_mpls_0. type=8, code=0, id=2, seq=7741." 2022-10-20 18:59:49 id=20085 trace_id=1505 func=init_ip_session_common line=6050 msg="allocate a new session-01a534dd, tun_id=169.254.111.1" 2022-10-20 18:59:49 id=20085 trace_id=1505 func=vf_ip_route_input_common line=2605 msg="find a route: flag=80000000 gw-10.206.250.2 via root" 2022-10-20 18:59:49 id=20085 trace_id=1505 func=fw_local_in_handler line=500 msg="iprope_in_check() check failed on policy 0, drop" 2022-10-20 18:59:54 id=20085 trace_id=1506 func=print_pkt_detail line=5871 msg="vd-root:0 received a packet(proto=1, 10.21.31.53:2->10.206.250.2:2048) tun_id=169.254.111.1 from vpn_mpls_0. type=8, code=0, id=2, seq=7746." 2022-10-20 18:59:54 id=20085 trace_id=1506 func=init_ip_session_common line=6050 msg="allocate a new session-01a535df, tun_id=169.254.111.1" 2022-10-20 18:59:54 id=20085 trace_id=1506 func=vf_ip_route_input_common line=2605 msg="find a route: flag=80000000 gw-10.206.250.2 via root" 2022-10-20 18:59:54 id=20085 trace_id=1506 func=fw_local_in_handler line=500 msg="iprope_in_check() check failed on policy 0, drop"






My understanding is tha traffic was denied by default policy, so I tried to create a firewall policy as below, but I can't set mgmt interface as destinf.



edit 0 set name "overlay_to_mgmt" set srcintf "overlay" set dstintf "mgmt" set action accept set srcaddr "x" set dstaddr "y" set schedule "always" set service "ALL" set logtraffic all



The error msg:
set dstintf "mgmt"
node_check_object fail! for name mgmt

value parse error before 'mgmt'
Command fail. Return code -651


I believe that there is no way to allow this https access to dedicated mgmt interface from source address incoming from a remote site over IPSEC, am I correct?



some related docs:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Troubles-accessing-management-access-through-VPN/ta-p/192415

https://community.fortinet.com/t5/FortiGate/Technical-Note-How-to-dedicate-an-interface-to-management/ta-p/189625?externalId=FD37035



Best answer by sagha

Hi DiegoSouza,



Yes, this looks to be the case.

I would suggest trying this with reserved management interfaces.



Thank you.

Shahan

1 reply

sagha
Staff
sagha
Staff
October 21, 2022

Hi DiegoSouza,



How does your HA config look like?

Article that will help: https://community.fortinet.com/t5/FortiGate/Technical-Tip-HA-Reserved-Management-Interface/ta-p/190132

From the debug flows you shared, it appears there is no policy between IPsec tunnel and mgmt interface:



2022-10-20 18:59:54 id=20085 trace_id=1506 func=print_pkt_detail line=5871 msg="vd-root:0 received a packet(proto=1, 10.21.31.53:2->10.206.250.2:2048) tun_id=169.254.111.1 from vpn_mpls_0. type=8, code=0, id=2, seq=7746."
2022-10-20 18:59:54 id=20085 trace_id=1506 func=init_ip_session_common line=6050 msg="allocate a new session-01a535df, tun_id=169.254.111.1"
2022-10-20 18:59:54 id=20085 trace_id=1506 func=vf_ip_route_input_common line=2605 msg="find a route: flag=80000000 gw-10.206.250.2 via root"
2022-10-20 18:59:54 id=20085 trace_id=1506 func=fw_local_in_handler line=500 msg="iprope_in_check() check failed on policy 0, drop"



Please configure a policy with source interface as vpn_mpls and destination interface as mgmt.



Thank you.

Shahan Agha

DiegoSouza
DiegoSouzaAuthor
New Member
October 21, 2022

Hi Sagha,



Thanks for the reply!



Here is the HA config:
FGT-A:

config system ha set group-id 11 set group-name "***" set mode a-p set hbdev "ha1" 50 "ha2" 100 set session-pickup enable set session-pickup-delay enable set override disable set priority 192 set monitor "lacp-external" "lacp-internal" end

FGT-B:

config system ha set group-id 21 set group-name "***" set mode a-p set hbdev "ha1" 50 "ha2" 100 set session-pickup enable set session-pickup-delay enable set override disable set priority 192 set monitor "lacp-internal" "lacp-external" end

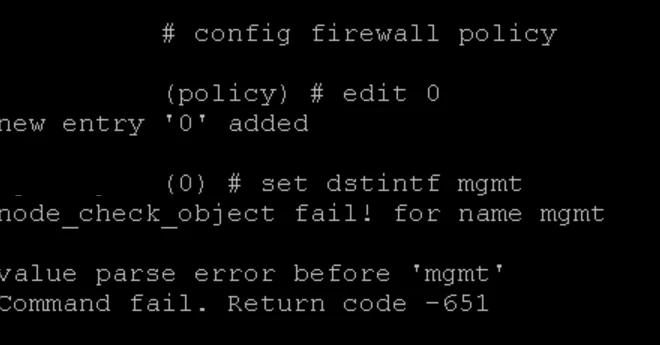

When I try to create a new firewall policy with mgmt as the destination interface I receive the error below, the result is the same on both FGTs, I believe this is normal behavior because mgmt interface is configured as dedicated management:
Error:





mgmt interfaces config
FGT-A:

config system interface edit "mgmt" set vdom "root" set management-ip 10.206.250.11 255.255.255.0 set ip 10.206.250.2 255.255.255.0 set allowaccess ping https ssh fgfm fabric set type physical set dedicated-to management set snmp-index 2 set trust-ip-1 10.21.31.0 255.255.255.0 set trust-ip-2 10.11.32.0 255.255.255.0 next end

FGT-B:

config system interface edit "mgmt" set vdom "root" set management-ip 10.205.250.11 255.255.255.0 set ip 10.205.250.2 255.255.255.0 set allowaccess ping https ssh fgfm fabric set type physical set dedicated-to management set snmp-index 2 set trust-ip-1 10.21.31.0 255.255.255.0 set trust-ip-2 10.11.32.0 255.255.255.0 next end




the vpn_mpls_o is member of the overlay sdwan zone, btw sdwan zone and members configuration below (identical config on both FGT):

config system sdwan set status enable config zone edit "virtual-wan-link" next edit "SASE" next edit "underlay_isp" set service-sla-tie-break fib-best-match next edit "underlay_broadband" next edit "overlay" next end config members edit 4 set interface "inet_4" set zone "underlay_broadband" set cost 250 next edit 1 set interface "inet_1" set zone "underlay_isp" next edit 2 set interface "inet_2" set zone "underlay_isp" next edit 3 set interface "inet_3" set zone "underlay_isp" next edit 5 set interface "vpn_mpls_0" set zone "overlay" next edit 6 set interface "vpn_inet_2" set zone "overlay" next edit 7 set interface "vpn_inet_3" set zone "overlay" next end



sagha
Staff
saghaAnswer
Staff
October 21, 2022

Hi DiegoSouza,



Yes, this looks to be the case.

I would suggest trying this with reserved management interfaces.



Thank you.

Shahan
