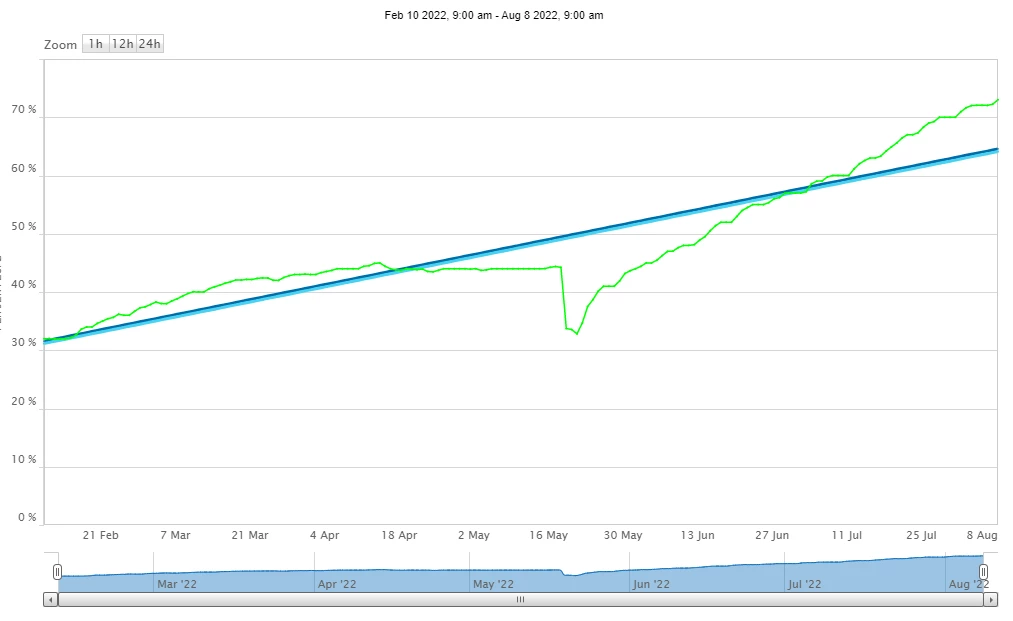

Fortigate memory continues to grow

Hi Joshi,

normal sessions count -> 100.000

Sessions in this moment: 145.000

normal memory usage -> 35%

changes in the firewall -> This firewall is used only for do IPS things.. I buy the product and I have never made any changes in relation to the memory.

-------------------------

FORTIGATE # get sys perf stat
CPU states: 0% user 0% system 0% nice 100% idle 0% iowait 0% irq 0% softirq
CPU0 states: 0% user 1% system 0% nice 99% idle 0% iowait 0% irq 0% softirq
CPU1 states: 0% user 2% system 0% nice 98% idle 0% iowait 0% irq 0% softirq
CPU2 states: 1% user 0% system 0% nice 99% idle 0% iowait 0% irq 0% softirq
CPU3 states: 0% user 1% system 0% nice 99% idle 0% iowait 0% irq 0% softirq
CPU4 states: 0% user 0% system 0% nice 100% idle 0% iowait 0% irq 0% softirq
CPU5 states: 0% user 0% system 0% nice 100% idle 0% iowait 0% irq 0% softirq
Memory: 8040284k total, 5937404k used (73.8%), 1669840k free (20.8%), 433040k freeable (5.4%)
Average network usage: 49048 / 50526 kbps in 1 minute, 40347 / 41626 kbps in 10 minutes, 37871 / 39144 kbps in 30 minutes
Average sessions: 151391 sessions in 1 minute, 146275 sessions in 10 minutes, 144981 sessions in 30 minutes
Average session setup rate: 197 sessions per second in last 1 minute, 185 sessions per second in last 10 minutes, 181 sessions per second in last 30 minutes
Average NPU sessions: 5487 sessions in last 1 minute, 5067 sessions in last 10 minutes, 4880 sessions in last 30 minutes
Average nTurbo sessions: 5487 sessions in last 1 minute, 5067 sessions in last 10 minutes, 4880 sessions in last 30 minutes
Virus caught: 0 total in 1 minute
IPS attacks blocked: 0 total in 1 minute
Uptime: 208 days, 3 hours, 27 minutes

----------------------------------------

FORTIGATE # get sys perf firewall statistics
getting traffic statistics...
Browsing: 63738838655 packets, 36316833226765 bytes
DNS: 3980658704 packets, 482300256471 bytes
E-Mail: 1088821775 packets, 811538202308 bytes
FTP: 4648007 packets, 3733446500 bytes
Gaming: 633 packets, 27319 bytes
IM: 3170 packets, 136412 bytes
Newsgroups: 2082 packets, 89112 bytes
P2P: 10161 packets, 445770 bytes
Streaming: 26356 packets, 1617980 bytes
TFTP: 98146 packets, 25826463 bytes
VoIP: 10229522 packets, 6818285241 bytes
Generic TCP: 1239299098 packets, 445062872848 bytes
Generic UDP: 1880994134 packets, 1370106540543 bytes
Generic ICMP: 57237297 packets, 2875309319 bytes
Generic IP: 395102 packets, 81095464 bytes

-----------------------------------------

FORTIGATE # get sys perf firewall packet-distribution
getting packet distribution statistics...
0 bytes - 63 bytes: 2444456287 packets
64 bytes - 127 bytes: 2779211593 packets
128 bytes - 255 bytes: 997826340 packets
256 bytes - 383 bytes: 243966483 packets
384 bytes - 511 bytes: 110574496 packets
512 bytes - 767 bytes: 10772404 packets
768 bytes - 1023 bytes: 3827786 packets
1024 bytes - 1279 bytes: 3822652 packets
1280 bytes - 1500 bytes: 39902344 packets
> 1500 bytes: 0 packets

-----------------------------------------

FORTIGATE # diag sys session stat
misc info: session_count=150382 setup_rate=134 exp_count=0 clash=100415
memory_tension_drop=0 ephemeral=0/588800 removeable=0
npu_session_count=5292
nturbo_session_count=5292
delete=249834, flush=190, dev_down=113/2941 ses_walkers=0
TCP sessions:
116275 in ESTABLISHED state
12 in SYN_SENT state
573 in FIN_WAIT state
12 in TIME_WAIT state
51 in CLOSE state
63 in CLOSE_WAIT state
firewall error stat:
error1=00000000
error2=00000000
error3=00000000
error4=00000000
tt=00000000
cont=000b86b0
ips_recv=04ba8b87
url_recv=00000000
av_recv=000b87cd
fqdn_count=00000009
fqdn6_count=00000000
global: ses_limit=0 ses6_limit=0 rt_limit=0 rt6_limit=0

--------------------------------------------------

Run Time: 208 days, 3 hours and 30 minutes
0U, 0N, 1S, 99I, 0WA, 0HI, 0SI, 0ST; 7851T, 1623F
snmpd 220 S 1.5 0.1 1
ipsengine 20807 S < 1.0 9.6 3
ipsengine 20808 S < 1.0 9.5 4
ipsengine 20806 S < 0.5 9.6 2
ipsengine 20805 S < 0.5 9.5 1
ipsengine 20809 S < 0.5 9.5 5
miglogd 272 S 0.5 0.8 4
hasync 10894 S < 0.5 0.5 3
syslogd 202 S 0.5 0.3 2
dnsproxy 255 S 0.5 0.2 5
ipshelper 20804 S < 0.0 3.0 3
node 198 S 0.0 1.2 0
miglogd 273 S 0.0 0.8 4
miglogd 274 S 0.0 0.8 0
cmdbsvr 173 S 0.0 0.7 5
forticron 205 S 0.0 0.5 4
miglogd 216 S 0.0 0.5 5
updated 3317 S 0.0 0.4 2
extenderd 243 S 0.0 0.3 5

----------------------------------------------------

FORTIGATE# diag hardware sysinfo memory
MemTotal: 8040284 kB
MemFree: 1669308 kB
Buffers: 22416 kB
Cached: 925400 kB
SwapCached: 0 kB
Active: 4577376 kB
Inactive: 361288 kB
Active(anon): 4291244 kB
Inactive(anon): 106112 kB
Active(file): 286132 kB
Inactive(file): 255176 kB
Unevictable: 0 kB
Mlocked: 0 kB
SwapTotal: 0 kB
SwapFree: 0 kB
Dirty: 0 kB
Writeback: 0 kB
AnonPages: 3990932 kB
Mapped: 211908 kB
Shmem: 406508 kB
Slab: 462540 kB
SReclaimable: 23200 kB
SUnreclaim: 439340 kB
KernelStack: 2624 kB
PageTables: 44644 kB
NFS_Unstable: 0 kB
Bounce: 0 kB
WritebackTmp: 0 kB
CommitLimit: 4020140 kB
Committed_AS: 31223748 kB
VmallocTotal: 34359738367 kB
VmallocUsed: 712256 kB
VmallocChunk: 34358931064 kB
DirectMap4k: 8192 kB
DirectMap2M: 8232960 kB

----------------------------------

FORTIGATE # diag hard sysinfo conserve
memory conserve mode: off
total RAM: 7851 MB
memory used: 5797 MB 73% of total RAM
memory freeable: 422 MB 5% of total RAM
memory used + freeable threshold extreme: 7458 MB 95% of total RAM
memory used threshold red: 6909 MB 88% of total RAM
memory used threshold green: 6438 MB 82% of total RAM

-----------------------------------

FORTIGATE# diag debug crashlog read
1: 2022-01-14 10:21:07 the killed daemon is /bin/eap_proxy: status=0x0
2: 2022-01-14 10:37:29 the killed daemon is /bin/sflowd: status=0x0
3: 2022-01-17 10:41:38 the killed daemon is /bin/cw_acd: status=0x0
4: 2022-01-18 12:07:34 Interface port5 is brought down. process_id=16295, process_name="newcli"
5: 2022-01-19 09:42:52 Interface port5 is brought up. process_id=173, process_name="cmdbsvr"
6: 2022-01-20 10:11:08 the killed daemon is /bin/dhcpd: status=0x0
7: 2022-01-20 10:11:08 the killed daemon is /bin/radvd: status=0x0
8: 2022-01-22 11:55:54 the killed daemon is /bin/quard: status=0xf
9: 2022-01-22 11:55:54 the killed daemon is /bin/voipd: status=0xf00
10: 2022-01-22 12:41:45 the killed daemon is /bin/getty: status=0x0
11: 2022-03-19 11:21:07 the killed daemon is /bin/updated: status=0x0
Crash log interval is 3600 seconds
Max crash log line number: 16384

---------------------------------------

AS-FORTIPS01 # get sys status
Version: FortiGate-400E-Bypass v7.0.3,build0237,211207 (GA)
Firmware Signature: certified
Virus-DB: 1.00000(2018-04-09 18:07)
Extended DB: 1.00000(2018-04-09 18:07)
Extreme DB: 1.00000(2018-04-09 18:07)
AV AI/ML Model: 0.00000(2001-01-01 00:00)
IPS-DB: 6.00741(2015-12-01 02:30)
IPS-ETDB: 21.00370(2022-08-09 01:16)
APP-DB: 21.00370(2022-08-09 01:16)
INDUSTRIAL-DB: 6.00741(2015-12-01 02:30)
IPS Malicious URL Database: 4.00434(2022-08-10 01:54)
Serial-Number: "Obscuded because i don't want to share it"
BIOS version: 05000002
System Part-Number: P26084-02
Log hard disk: Not available
Hostname: FORTIGATE
Private Encryption: Disable
Operation Mode: Transparent
Current virtual domain: root
Max number of virtual domains: 10
Virtual domains status: 0 in NAT mode, 1 in TP mode
Virtual domain configuration: disable
FIPS-CC mode: disable
Current HA mode: a-p, primary
Cluster uptime: 205 days, 3 hours, 32 minutes, 44 seconds
Cluster state change time: 2022-04-16 08:48:03
Branch point: 0237
Release Version Information: GA
FortiOS x86-64: Yes
System time: Wed Aug 10 15:10:06 2022
Last reboot reason: warm reboot

--------------------------------------------

AS-FORTIPS01 (global) # get
admin-concurrent : enable
admin-console-timeout: 0
admin-forticloud-sso-login: disable
admin-hsts-max-age : 15552000
admin-https-pki-required: disable
admin-https-redirect: enable
admin-https-ssl-banned-ciphers:
admin-https-ssl-ciphersuites: TLS-AES-128-GCM-SHA256 TLS-AES-256-GCM-SHA384 TLS-CHACHA20-POLY1305-SHA256
admin-https-ssl-versions: tlsv1-2 tlsv1-3
admin-lockout-duration: 60
admin-lockout-threshold: 3
admin-login-max : 100
admin-maintainer : enable
admin-port : 80
admin-restrict-local: disable
admin-scp : disable
admin-server-cert : self-sign
admin-sport : 443
admin-ssh-grace-time: 120
admin-ssh-password : enable
admin-ssh-port : 22
admin-ssh-v1 : disable
admin-telnet : enable
admin-telnet-port : 23
admintimeout : 60
alias : FortiGate-400E-Bypass
allow-traffic-redirect: enable
anti-replay : strict
arp-max-entry : 131072
auth-cert : Fortinet_Factory
auth-http-port : 1000
auth-https-port : 1003
auth-keepalive : disable
auth-session-limit : block-new
auto-auth-extension-device: enable
autorun-log-fsck : disable
av-affinity : 0
av-failopen : pass
av-failopen-session : disable
batch-cmdb : enable
block-session-timer : 30
br-fdb-max-entry : 8192
cert-chain-max : 8
cfg-save : automatic
check-protocol-header: loose
check-reset-range : disable
cli-audit-log : disable
cloud-communication : enable
clt-cert-req : disable
cmdbsvr-affinity : 0
cpu-use-threshold : 90
csr-ca-attribute : enable
daily-restart : disable
default-service-source-port: 1-65535
device-idle-timeout : 300
dh-params : 2048
dnsproxy-worker-count: 1
dst : enable
extender-controller-reserved-network: 10.252.0.1 255.255.0.0
fds-statistics : enable
fgd-alert-subscription:
fortiextender : enable
fortiextender-data-port: 25246
fortiextender-discovery-lockdown: disable
fortiextender-vlan-mode: disable
fortiservice-port : 8013
fortitoken-cloud : enable
gui-allow-default-hostname: disable
gui-certificates : enable
gui-custom-language : disable
gui-date-format : yyyy/MM/dd
gui-date-time-source: system
gui-device-latitude :
gui-device-longitude:
gui-display-hostname: disable
gui-firmware-upgrade-warning: enable
gui-forticare-registration-setup-warning: enable
gui-fortigate-cloud-sandbox: disable
gui-ipv6 : disable
gui-local-out : disable
gui-replacement-message-groups: disable
gui-rest-api-cache : enable
gui-theme : jade
gui-wireless-opensecurity: disable
ha-affinity : 0
honor-df : enable
hostname : FORTIGATE
igmp-state-limit : 3200
ip-src-port-range : 1024-25000
ips-affinity : 0
ipsec-asic-offload : enable
ipsec-ha-seqjump-rate: 10
ipsec-hmac-offload : enable
ipsec-soft-dec-async: disable
ipv6-accept-dad : 1
ipv6-allow-anycast-probe: disable
ipv6-allow-traffic-redirect: enable
irq-time-accounting : auto
language : english
ldapconntimeout : 500
lldp-reception : disable
lldp-transmission : disable
log-ssl-connection : disable
log-uuid-address : disable
login-timestamp : disable
management-ip :
management-port : 443
management-port-use-admin-sport: disable
management-vdom : root
max-route-cache-size: 0
memory-use-threshold-extreme: 95
memory-use-threshold-green: 82
memory-use-threshold-red: 88
miglog-affinity : 0
miglogd-children : 0
multi-factor-authentication: optional
ndp-max-entry : 0
pmtu-discovery : disable
policy-auth-concurrent: 0
post-login-banner : disable
pre-login-banner : disable
private-data-encryption: disable
proxy-auth-lifetime : disable
proxy-auth-timeout : 10
proxy-hardware-acceleration: enable
proxy-re-authentication-mode: session
proxy-resource-mode : disable
proxy-worker-count : 3
radius-port : 1812
reboot-upon-config-restore: enable
refresh : 0
remoteauthtimeout : 5
reset-sessionless-tcp: disable
revision-backup-on-logout: disable
revision-image-auto-backup: disable
scanunit-count : 6
security-rating-result-submission: enable
security-rating-run-on-schedule: enable
send-pmtu-icmp : enable
snat-route-change : disable
special-file-23-support: disable
speedtest-server : disable
ssh-enc-algo : chacha20-poly1305@openssh.com aes256-ctr aes256-gcm@openssh.com
ssh-kex-algo : diffie-hellman-group-exchange-sha256 curve25519-sha256@libssh.org ecdh-sha2-nistp256 ecdh-sha2-nistp384 ecdh-sha2-nistp521
ssh-mac-algo : hmac-sha2-256 hmac-sha2-256-etm@openssh.com hmac-sha2-512 hmac-sha2-512-etm@openssh.com
ssl-min-proto-version: TLSv1-2
ssl-static-key-ciphers: enable
sslvpn-cipher-hardware-acceleration: enable
sslvpn-ems-sn-check : disable
sslvpn-kxp-hardware-acceleration: enable
sslvpn-max-worker-count: 5
sslvpn-plugin-version-check: enable
strict-dirty-session-check: enable
strong-crypto : enable
switch-controller : enable
switch-controller-reserved-network: 10.255.0.0 255.255.0.0
sys-perf-log-interval: 5
tcp-halfclose-timer : 120
tcp-halfopen-timer : 10
tcp-option : enable
tcp-rst-timer : 5
tcp-timewait-timer : 1
timezone : (GMT+1:00) Amsterdam, Berlin, Bern, Rome, Stockholm, Vienna
traffic-priority : tos
traffic-priority-level: medium
two-factor-email-expiry: 60
two-factor-fac-expiry: 60
two-factor-ftk-expiry: 60
two-factor-ftm-expiry: 72
two-factor-sms-expiry: 60
udp-idle-timer : 180
url-filter-affinity : 0
url-filter-count : 1
user-device-store-max-devices: 82332
user-device-store-max-unified-mem: 411662540
user-device-store-max-users: 82332
user-server-cert : Fortinet_Factory
vdom-mode : no-vdom
vip-arp-range : restricted
wad-affinity : 0
wad-csvc-cs-count : 1
wad-csvc-db-count : 3
wad-memory-change-granularity: 10
wad-source-affinity : enable
wad-worker-count : 6
wifi-ca-certificate : Fortinet_Wifi_CA
wifi-certificate : Fortinet_Wifi
wimax-4g-usb : disable
wireless-controller : enable
wireless-controller-port: 5246
fds-statistics-period: 60

-----------

Thanks for the support
