FortiGate login wepage still show "not secure" in the address bar

Forum|Forum|2 years ago
October 8, 2023
3 replies
5484 views

HI

Anyone have experience and idea how to configure and process generate CSR at FGT and sign by FAC for internal access in order the webpage won't show warning and address bar show "not secure" ?

I did try generate CSR in fortigate and signed by FAC. I did import the local CA from FAC to the end user devices. However, still see the warning and address bar show "not secure"

Appreciate anyone could share the idea and the step i missing

I did refer link below as well

https://docs.fortinet.com/document/fortiauthenticator/6.5.0/cookbook/628126/fortiauthenticator-as-a-certificate-authority

FortiGate

Best answer by srajeswaran

https://docs.fortinet.com/document/fortigate/7.2.0/new-features/499047/new-default-certificate-for-https-administrative-access-7-2-1 This document confirms that if the SAN is not valid the browsers will give the error as you have observed.

srajeswaran

Staff

Hi @ck8882 ,

I have tested this behavior in the past and the issue was observed in below scenarios.

1. The CN is not matching with the domain name
2. The root CA cert is not added to trusted cert store
3. The SAN field is missing in the certificate

Could you please make sure all the 3 are taken care in your test?

Thanks,

Suraj

ck8882Author

Explorer

HI srajeswaran,

I use IP address to configure the CN and login with IP address as well since it's internal access only. I also upload the CA cert from FAC to the chrome, firefox also. Still see the same issue.

For the SAN, i also configured IP:192.168.10.10

still not work. Do you have any other idea could be the reason?

Thanks

srajeswaran

Staff

Can you confirm if you see the SAN when you open the certificate? I remember the Windows AD/CA not adding the SAN (when not specified) even though the CSR is generated with SAN .

dbu

Staff

Hi @ck8882 ,

Could you please share more, possibly a screenshot of the warning details.

Regards!

ck8882Author

Explorer

HI Dbu,

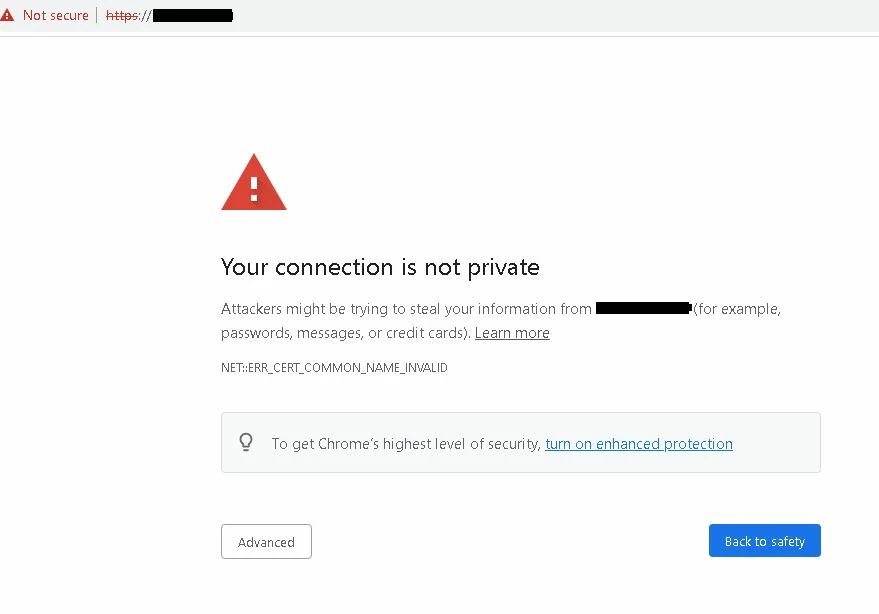

Please see the error screen below. According to the document link, i didn't configured the SAN value, would like to know is it required must configured SAN?

webpage error.JPG
