Fortigate - Issue to Activate trial License

  • November 28, 2024
  • 3 replies
  • 7522 views

Fortigate ping.pngFortigate ping1.pngFortigate ping2.pngALL,

I am creating my Fortigate Lab, using vmware workstation pro.

i have downloded the lates VM-FGT_VM64-v7.6.0.F-build3401-FORTINET.out.ovf.zip (98.44 MB)

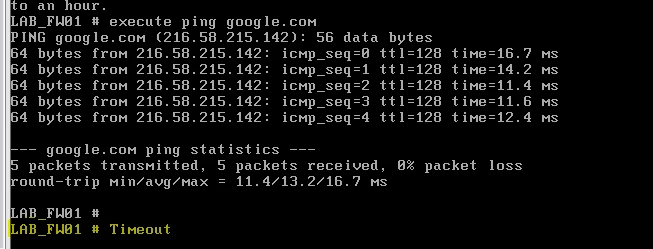

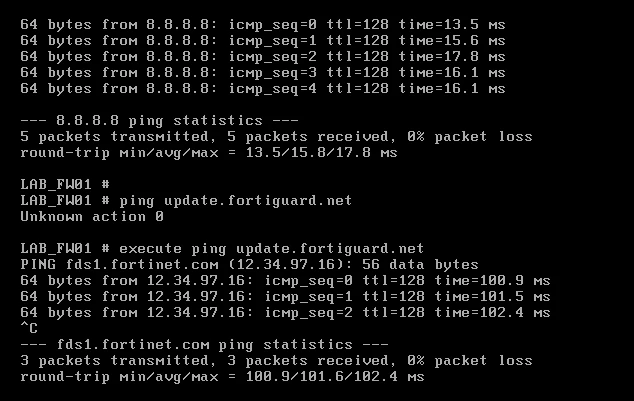

i did all config, and i can reach out to internet, but when i try to activate the trial license using GUI or CLI, it give me Timet error msg. find the SC belos, and please help

NOte, i alread do all theses steps inthis link:

https://docs.fortinet.com/document/fortigate/7.6.0/administration-guide/441460/permanent-trial-mode-for-fortigate-vm











Best answer by dingjerry_FTNT

Hi @stanleyssm ,



In your FGT GUI --> Dashboard --> Status --> FortiGate Cloud widget, what does it look for now?

3 replies

AnthonyH
Staff
AnthonyH
Staff
November 28, 2024

Hello Stanley,

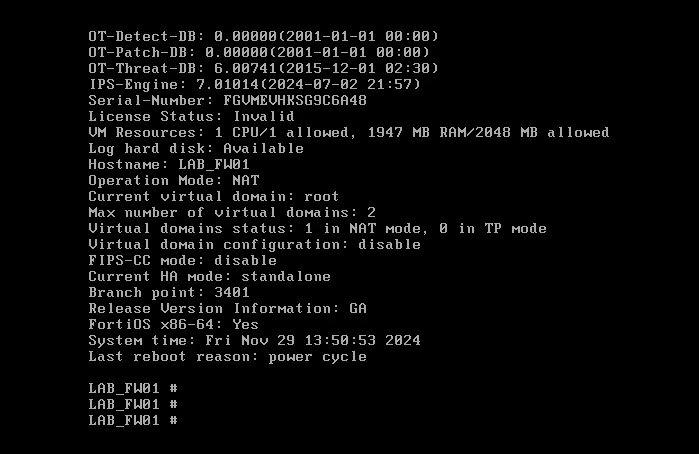

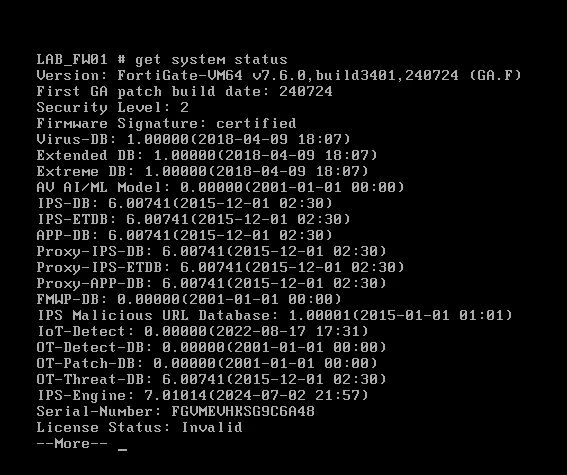

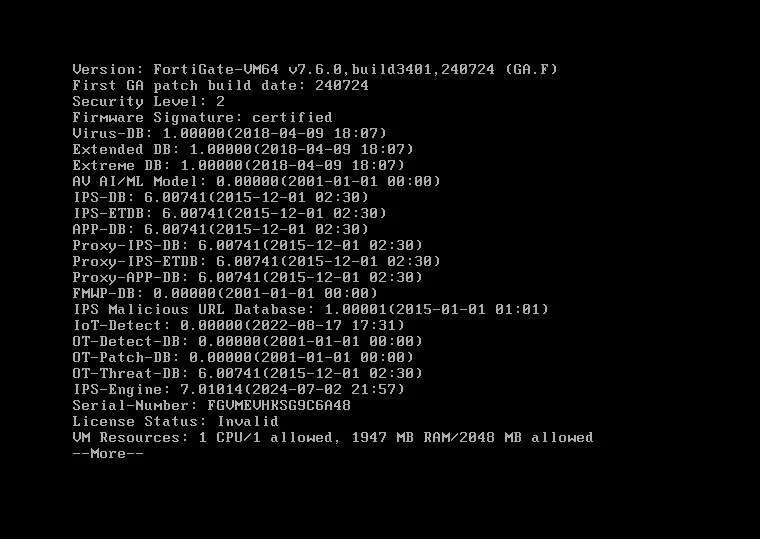

In the FortiGate's CLI could you provide the command, "get system status" and attach the output here.

    stanleyssm
    stanleyssmAuthor
    New Member
    November 29, 2024


    hi


    AnthonyH
    Staff
    AnthonyH
    Staff
    November 29, 2024

    Hello stanleyssm,

    And if you log into FortiCloud do you have any existing or registered FortiGate evaluation licenses?

      DPadula
      Staff & Editor
      DPadula
      Staff & Editor
      November 28, 2024

      Please, collect the following commands for us, so we can help you out.

      get system status

      diag debug vm-print-license

      diag hard sysinfo vm full

      show system interface

      show firewall policy

      show router stati

        sjoshi
        Staff
        sjoshi
        Staff
        November 29, 2024

        run the  below cmd:-

        SSH2:-
        diag debug application update -1
        diag debug enable
        execute time
        exec update-now

        SSH3:-
        diagnose autoupdate version
        diagnose autoupdate status
        get router info routing-table all
        show full system fortiguard
        show full system setting
        show full system dns

        diagnose debug rating
        execute ping 8.8.8.8
        execute ping update.fortiguard.net
        execute ping service.fortiguard.net
        execute ping directregistration.fortinet.com
        show full system fortiguard
        show full system central-management

        Thanks, Salon
