Fortigate is giving its own certificate when using certificate-inspection

  • March 21, 2022
  • 5 replies
  • 6198 views

Hello team!!



I have the following issue with a fortigate 60F (firmware 6.4.4)

We have all the rules from LAN to WAN, with "Certificate-inspection", no one with "Full-inspection", and the "Certificate-inspection" profile is the default one.

Sometimes, clients are having problems browsing in the internet, because Fortigate is giving to user its own certificate and it is not trusted in clients

I know a possible solution is to install the fortigate certificate in clients but I prefer to know why is happening this

Do you know why fortigate could give its own certificate to clients even using default "Certificate-inspection" profile?



Thanks in advance.

Regards,

Damián

Best answer by damianhlozano

Finally changed the protocol and port for fortiguard connections and worked

config system fortiguard
   set fortiguard-anycast disable
   set protocol udp
   set port 8888
   set sdns-server-ip 208.91.112.220
end



Thanks!

5 replies

anikolov
Staff
anikolov
Staff
March 22, 2022

Hello Damian,



I believe we have the answer for your question in the KB article below:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Certificate-error-when-accessing-blocked-page/ta-p/191051



Please let me know if you need further explanation.



Regards,

    Debbie_FTNT
    Staff & Editor
    Debbie_FTNT
    Staff & Editor
    March 22, 2022

    Hey Damián,

    to clarify Aleksandar's update:

    - the Fortigate may be blocking the connection for some reason

    - if the FortiGate blocks something, it displays a replacement message it hosts itself

    -> this replacement message will use the FortiGate's own certificate

    - this is entirely independent of deep-inspection or certificate-inspection happening

      damianhlozano
      damianhlozanoAuthor
      Explorer II
      March 22, 2022

      Thank you both for your answers, but Fortigate is not blocking anything

      The issue happens with any page but the same page with the issue sometimes is working fine

      For example, today tried to access login.microsoft.com and did not work, after 5 minutes without change anything in the fortigate, it started to work.

      Someone told me that the issue is not happening in Edge, only in Chrome

      Any idea?



      Regards,

      Damián

      damianhlozano
      damianhlozanoAuthor
      Explorer II
      March 22, 2022

      I just see that Fortigate is blocking QUIC with application control, but the category where this belong, was configured as monitor, I just change this to allow

      Why can this block an application with action "Monitor"?



      Regards,

      Damián

      damianhlozano
      damianhlozanoAuthor
      Explorer II
      March 22, 2022

      Change this to "Allow" does not solve the issue

      QUIC still being blocked by application control

      Any idea?



      Regards

      Damián

      damianhlozano
      damianhlozanoAuthor
      Explorer II
      March 22, 2022

      I just see another error

      In web filter logs: "all Fortiguard servers failed to respond"

      I think maybe this is the issue

      I will continue with the ticket in support.fortinet.com



      Thanks

      Damián

      Debbie_FTNT
      Staff & Editor
      Debbie_FTNT
      Staff & Editor
      March 22, 2022

      Hey Damián,

      if your FortiGate can't reach FortiGuard, then it is likely that your webfiltering is blocking everything.

      -> webfilter relies on reaching FortiGuard servers for category information (there is a cache on FortiGate, but it doesn't hold that much information)

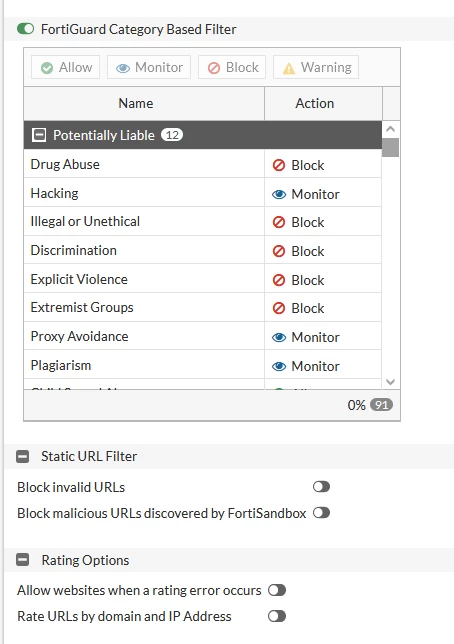

      -> you probably have 'Allow websites when rating error occurs' disabled:


      If that ssetting is turned off, then FortiGate will block the connection, and (try to) present a block page, using its own certificate

      damianhlozano
      damianhlozanoAuthor
      Explorer II
      March 22, 2022

      Yes, this is the problem, occurs with every site but not allways, sometimes

      I know about this option (Allow website when a rating error ocurred) and I enabled it some minutes ago.

      I need to troubleshoot fortiguard connectivity issues but I will continue with fortigate support

      Thanks

      damianhlozano
      damianhlozanoAuthorAnswer
      Explorer II
      March 23, 2022

      Finally changed the protocol and port for fortiguard connections and worked

      config system fortiguard
         set fortiguard-anycast disable
         set protocol udp
         set port 8888
         set sdns-server-ip 208.91.112.220
      end



      Thanks!
