Fortigate Interface Gateway Unable to Ping

  • February 24, 2021
  • 1 reply
  • 15594 views

Hello,



I created a new interface in Firewall. Although ICMP is allowaccess at Interface; clients cannot ping the gateway address.





When I create debug in Firewall; I see it was dropped because it didn't match the rule. Normally there is no need to have a rule for the client to ping the gateway address. Where could the problem be?



id=20085 trace_id=1155 func=print_pkt_detail line=4915 msg="vd-LOCAL received a packet(proto=1, 10.100.17.11:19760->10.100.17.1:2048) from Server-MNG. type=8, code=0, id=19760, seq=486." id=20085 trace_id=1155 func=init_ip_session_common line=5062 msg="allocate a new session-0f73a6b8" id=20085 trace_id=1155 func=fw_local_in_handler line=392 msg="iprope_in_check() check failed on policy 0, drop"



Best answer by marchand



Check if it is not the case 2

https://kb.fortinet.com/k....do?externalId=FD31702

1 reply

emnoc
emnoc
New Member
February 24, 2021

Is "10.100.17.1" the  FortiGate address? I can't see your picture fwiw



Ken Felix

cetia
cetiaAuthor
New Member
February 24, 2021

Yes, 10.100.17.1 is Fortigate interface ip

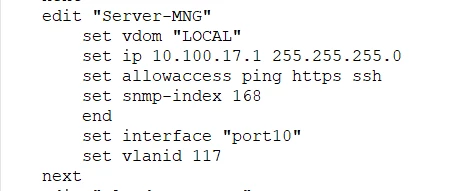

edit "Server-MNG" set vdom "LOCAL". set ip 10.100.17.1 255.255.255.0 set allowaccess ping https ssh set snmp-index 168 end set interface "port10" set vlanid 117



Thank you,

marchand
marchandAnswer
New Member
February 25, 2021



Check if it is not the case 2

https://kb.fortinet.com/k....do?externalId=FD31702
