Fortigate GUI notifies Unable to Connect to FortiManager but CLI show tunnels OK
Good morning and thanks in advance.
I have deployed a FM with v7.2.1 and two FG HA cluster with v7.0.2
I added FG to FM with the Add Device wizard. All devices have been discovered and added, policies and objects sync'd ok with FM. When modifying rules on the FM the modifications are pushed OK to FGs.
I also activated Fortianalyzer Features on FM and FG are sending logs OK to FM.

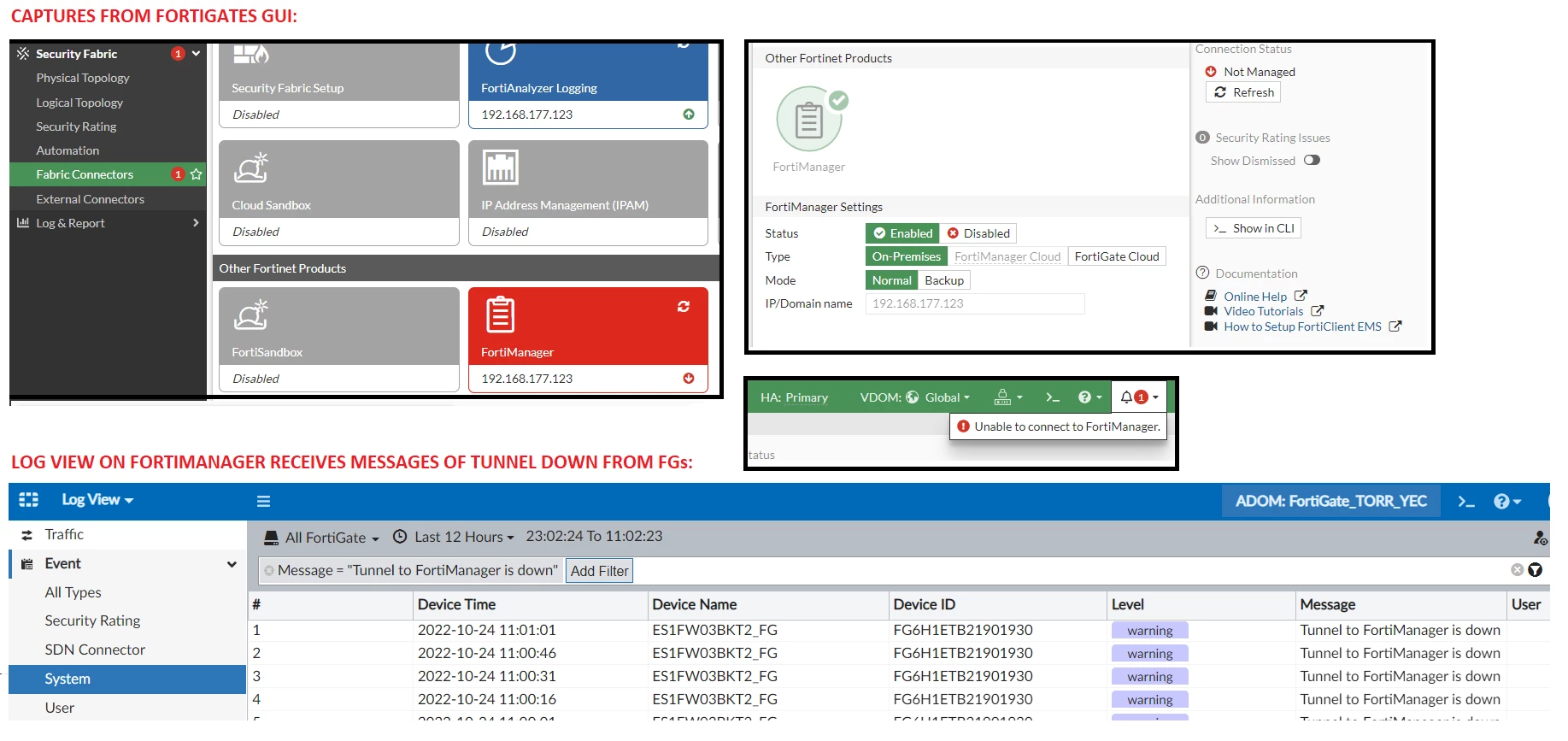

Everything seems OK, BUT on both FG clusters, within Security Fabric > Fabric Connectors > FM Connection is shown in Red and "Not Managed" and the notification reads as: Unable to Connect to FM
But when checking by CLI all the platforms, the FGFM tunnels are established and up:
On FM:
ES1FMG01BKT2 # diagnose fgfm session-list
ES1FW03BKT2_FG (260) sn(******************) ip(192.168.177.124) <-- FG HA Cluster2
state(tunnel) tunnel (169.254.0.2) uptime:Mon Oct 24 00:07:56 2022
ES1FW03BKT1_FG (233) sn(******************) ip(192.168.177.140) <-- FG HA Cluster1
state(tunnel) tunnel (169.254.0.3) uptime:Mon Oct 24 00:07:56 2022
Session count = 2 (tunnel 2)
ES1FMG01BKT2 #
On FGs:
ES1FW03BKT2_FG (global) # diagnose fdsm central-mgmt-status
Connection status: Up
Registration status: Registered
ES1FW03BKT2_FG (global) #
ES1FW03BKT1_FG (global) # diagnose fdsm central-mgmt-status
Connection status: Up
Registration status: Registered
ES1FW03BKT1_FG (global) #
Any idea why on the FG GUI the connection to FM is shown as Not Established (Devices Not Managed by FM) when the CLI says the tunnels are up and the devices seem to be managed OK?
