Hi guys,

I have been away from Fortinet for some time, and last time I saw FortiGate was version 5.4 more or less. At the time, AV scannning had proxy-based mode and flow-based mode, and the latter in turn had full scan and quick scan, each one with its advantages and disadvantages. Now I am back with FortiGate I see there are proxy-based mode and flow-based mode, and the flow-based mode is just that, there are not full scan or quick scan submodes, and I think this is from FortiOS 6.2. Is that right? If there is only just flow-based mode, is it like the old full scan mode or like the old quick scan mode? Thanks in advance.

Regards,

Julián

FortiGate

slautenschlager

Staff

Hi Julian,

this is still configurable on 6.2 and beyond :

https://docs.fortinet.com/document/fortigate/6.2.0/cookbook/100953/inspection-mode-differences-for-antivirus

Is this what you were looking for?

Cheers,

Steffen

fjulianomAuthor

Explorer II

Hi Steffen,

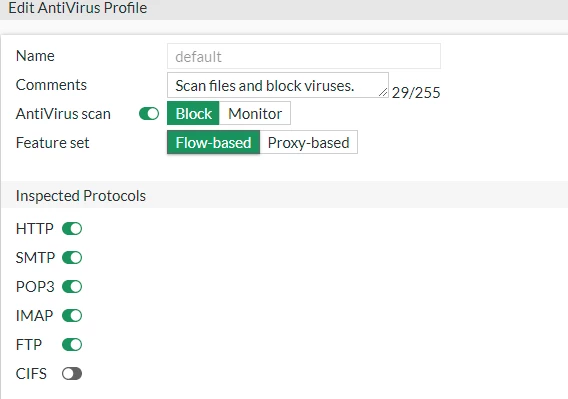

Yes, it seems it is still the same. But I don't find that document for FortiOS 7. The following snapshot is for a FortiGate v7.0.3 (FortiGate demo) and you can see under Flow-based AV you can't choose between full scan or quick scan:

Regards,

Julián

slautenschlager

Staff

Dear Julian,

understood. I checked a little bit and also don't find this documented when it was removed and what the default scanning mode is at the moment, so I would suggest to raise a ticket to TAC in case you want to investigate this further.

Cheers, Steffen

fjulianomAuthor

Explorer II

Hi,

I think TAC is more focused on actual incidents than theoretical questions. I investigated a little bit more and found that the AV scanning has changed a lot from v5.4. Now you have two options for AV scanning: proxy-based or flow-based modes (default is flow). For proxy-based AV mode you can choose between the default (stream-based scanning) or legacy submodes. For flow-based AV mode you can't choose between the default or legacy submodes, it uses a hybrid of the two scan submodes. Attached the documents:

https://docs.fortinet.com/document/fortigate/7.0.1/administration-guide/836396/antivirus

https://docs.fortinet.com/document/fortigate/7.0.0/cli-reference/532620/config-antivirus-profile

https://docs.fortinet.com/document/fortigate/7.0.0/new-features/017521/stream-based-antivirus-scan-in-proxy-mode-for-ftp-sftp-and-scp

https://docs.fortinet.com/document/fortigate/7.0.1/administration-guide/872942/proxy-mode-stream-based-scanning

Regards,

Julián
