FortiGate FGT200F Firewall Policies and Traffic Shaping

  • March 28, 2024
  • 1 reply
  • 1266 views

Good day,



I am trying to setup Traffic Shaping on my FGT200F (v7.4.3 build2573 (Feature)) and having issues assigning the Traffic Shaping Policies I have created to my Firewall Policies.



I have taken over the FortiGate from the previous IT Engineer and he has set Traffic Shaping on a few Firewall Polices but there are some Firewall Polices when its not set.



When I edit a Firewall Policy I can't see the option to choose the Traffic Shaping policy and also don't see the option to set for new Firewall Policies.



The FortiGate's firmware has been upgraded a few times recently and not sure if this is causing the issues or the feature to allow Traffic Shaping is not enabled for Firewall Policies?



I can't see any documentation on this and currently have a support ticket open but hoped it may be a quick fix?.



Thanks



















1 reply

ozkanaltas
ozkanaltas
Valued Contributor III
March 28, 2024

Hello @julianhaines ,

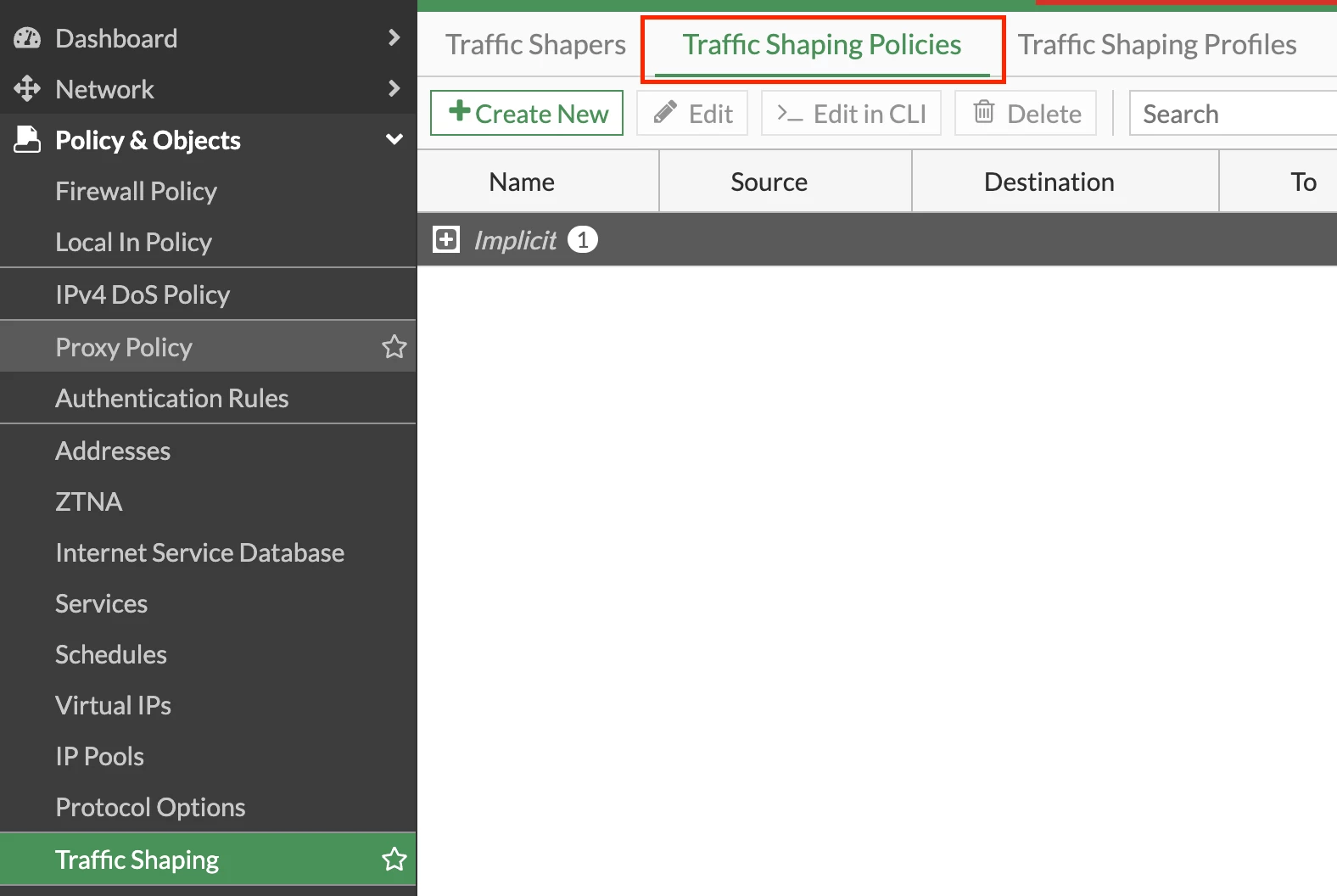

Traffic shaping policy and firewall policy are different things. You can configure the traffic shaping policy on Policy&Object -> Traffic Shaping.






If you want to get more information about Traffic Shaping. You can review this document.



https://docs.fortinet.com/document/fortigate/7.4.3/administration-guide/297431/traffic-shaping





    julianhaines
    julianhainesAuthor
    Explorer II
    March 28, 2024

    Hi,

    I have setup the policies as you have shown but cant add them to Firewall Policies.



    ozkanaltas
    ozkanaltas
    Valued Contributor III
    March 28, 2024

    Hello @julianhaines ,



    You don't need to add to a firewall policy. Traffic shaping policy works separately.



    If you did create a traffic-shaping policy that matches your traffic, it's enough.
