FortiGate - FGSP HA setup using VM evaluation version

  • July 22, 2014
  • 6 replies
  • 13211 views
Hi, As a part of PoC work for one of our projects, we are evaluating FGSP HA. Currently we are trying to setup HA on ESXi servers with evaluation licenses for FortiGate servers. But the setup for FGSP HA but it did not work. I am not sure if the problem is because of limited VDOMs (trial license has only root VDOM. You cannot add other VDOMs) or it was because of the same serial number provided for FG in trial versions. Can someone please let me know if there is a way to test FGSP HA using evaluation copies? Many Thanks, Pratik

    6 replies

    neonbit
    neonbit
    New Member
    July 24, 2014

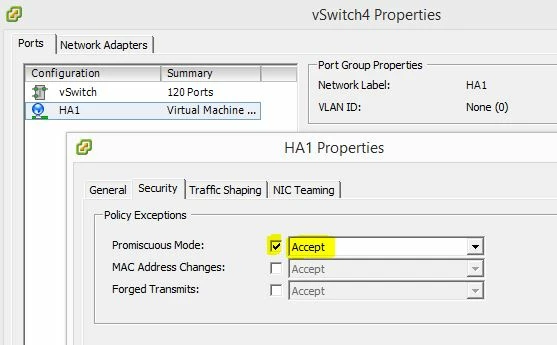

    Hi Pratik, I' ve run into the same issue when installing brand new VMs in a HA config. What I found to be the problem was that the vSwitch that I created for the HA interfaces did not have promiscuous mode enabled. After I enabled this the FortiGates were able to join the HA cluster.
    pratik_patel
    pratik_patelAuthor
    New Member
    July 24, 2014
    Thanks for the suggestions. I quickly checked HA switch configuration and promiscuous is enabled on HA switch. Not sure if I am missing any other configuration. Regards, Pratik
    neonbit
    neonbit
    New Member
    July 24, 2014
    Sorry I didn' t read your OP properly and see that it was evaluation licenses. I haven' t tried to setup a HA VM with eval licenses before, it' s always been with the proper licenses. I just tried now to configure two HA VMs with the inbuilt 14day eval license and couldn' t get it to work. I keep on seeing a ' Invalid model' command (as per attached). Just to confirm, have you registered and actually loaded in individual 60 day FGT VM licenses (ie: files) to each of the devices, or are you using the 14 day license that comes inbuilt?
    FortiRack_Eric
    FortiRack_Eric
    New Member
    July 28, 2014
    FortiGate VM will not work in HA without a license. Both units will have the same serial number and therefore 2nd unit will not be able to join.
    neonbit
    neonbit
    New Member
    July 28, 2014
    ^ yup makes sense; thanks for confirming Eric.
    pratik_patel
    pratik_patelAuthor
    New Member
    July 29, 2014
    I was using 14 day license that comes inbuilt. As Eric advised, HA does not work as both devices have same serial number. I have requested a trial license and will try again. Thanks a lot.
    FortiMickeal
    FortiMickeal
    New Member
    March 10, 2016

    Hi,

    Do you know if it's possible to mount a cluster between a Fortigate VM evaluation and a Fortigate VM with license ?Theoretically yes because they do not have the same SN but just for confirm.

    Thanks a lot.
