Fortigate CPU/memory leak automation technical tip

  • May 21, 2025
  • 2 replies
  • 625 views

Fortigate Automation Stich is great!



If you have a security fabric configured you can automate a lot of stuff.

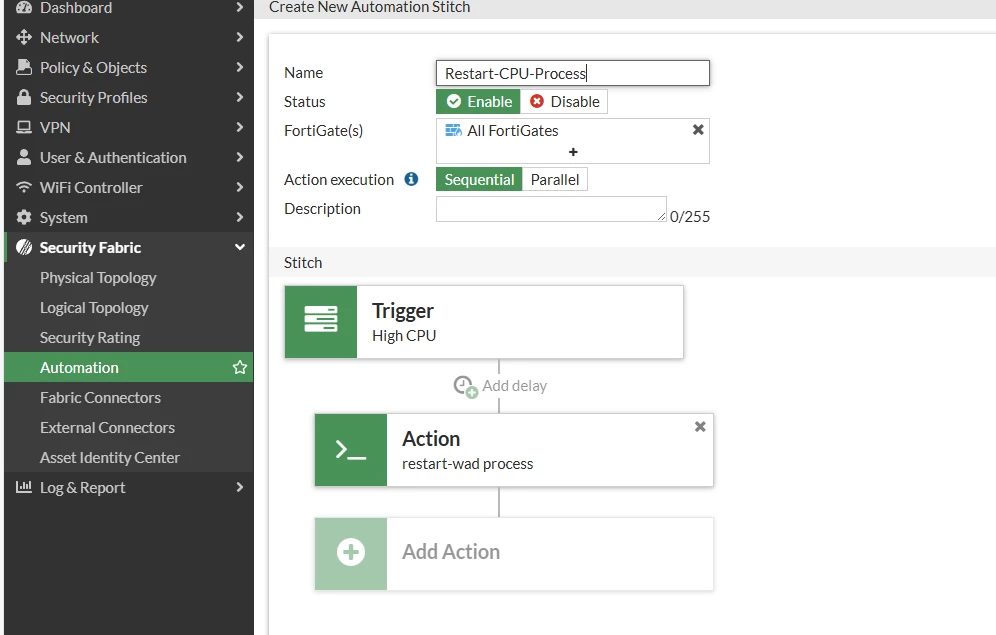

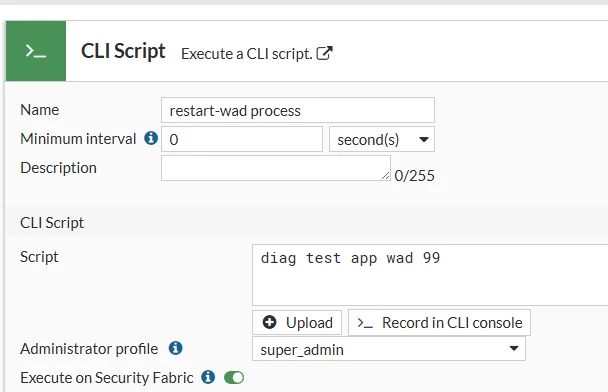

You can automate a process restart if there is high CPU or memory :)



Example:

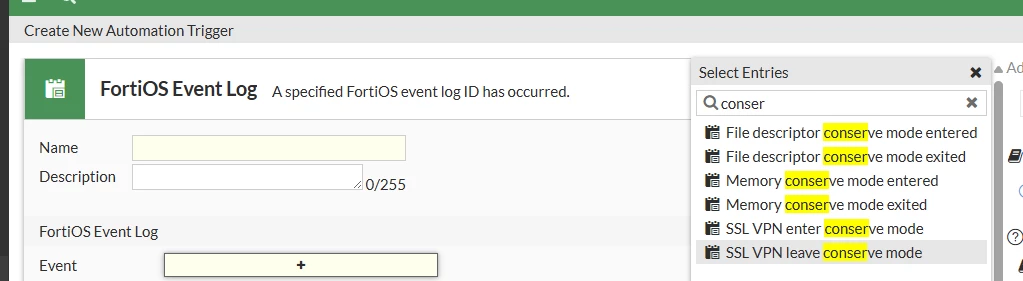

High CPU event trigger is already existing but for the memory it is called Conservative mode.










You can probably use also Playbooks if FortiAnalyzer is licensed for them or FortiManager to push a CLI script to all firewalls if you have no security fabric configured.





Posts from which I got the idea:



https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-restart-WAD-process-on-a-specific-day-and/ta-p/329282#M8818



https://community.fortinet.com/t5/FortiGate/Technical-Tip-Execute-a-CLI-Script-based-on-High-Memory-using/ta-p/197758



https://community.fortinet.com/t5/FortiGate/Technical-Tip-Execute-a-CLI-script-based-on-high-CPU/ta-p/195103

2 replies

kaman
Staff
Staff
May 25, 2025

Hi filiaks1,

Thank you for providing the document along with the screenshots.

You may also refer to the document below for instructions on creating a script to automatically kill/restart the WAD process:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-create-a-script-to-kill-WAD-process/ta-p/339351


Regards
Aman

filiaks1
filiaks1Author
Explorer III
June 11, 2026

I have made

 even before that article 😉

filiaks1
filiaks1Author
Explorer III
June 11, 2026

Also useful on FortiADC as it has no auto scripts like FortiGate but it has Fabric stiches.
