Fortigate captive portal User Authentication SSL issue

  • May 22, 2025
  • 4 replies
  • 1392 views

Hello,



I am playing with fortigate trial versions (7.2.11 and 7.6.2) and I was testing local user authentication with captive portal.

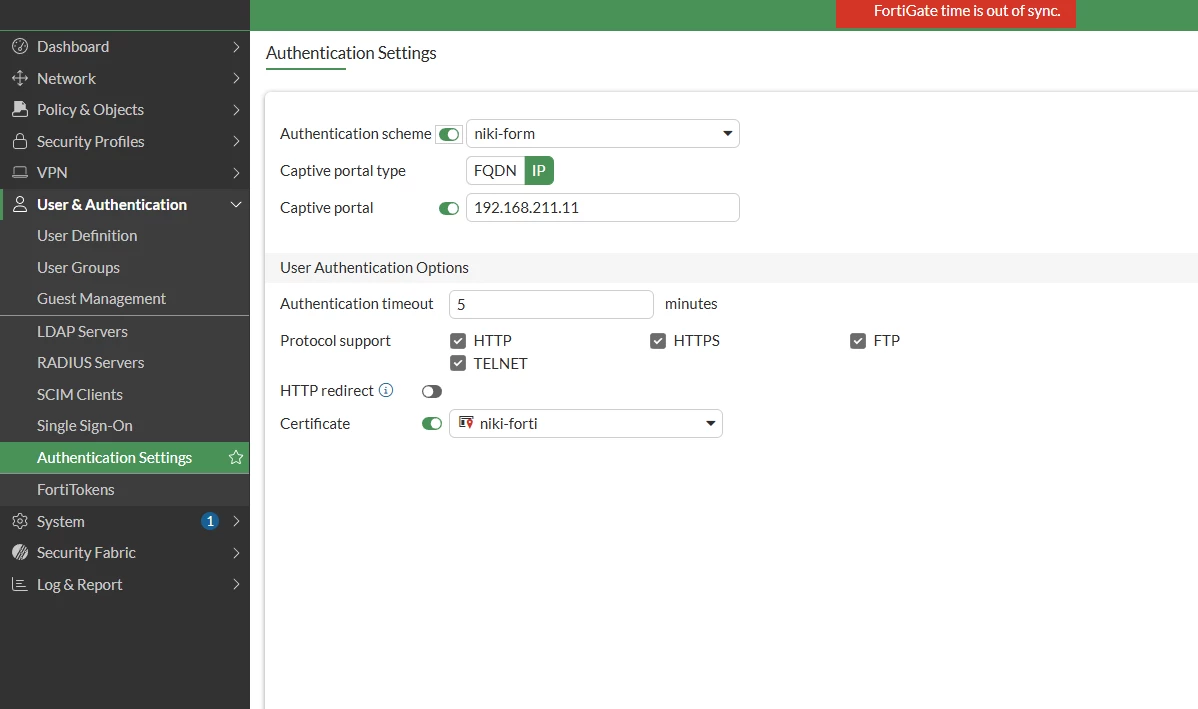

I have configured the ip address of the interface as captive portal location.

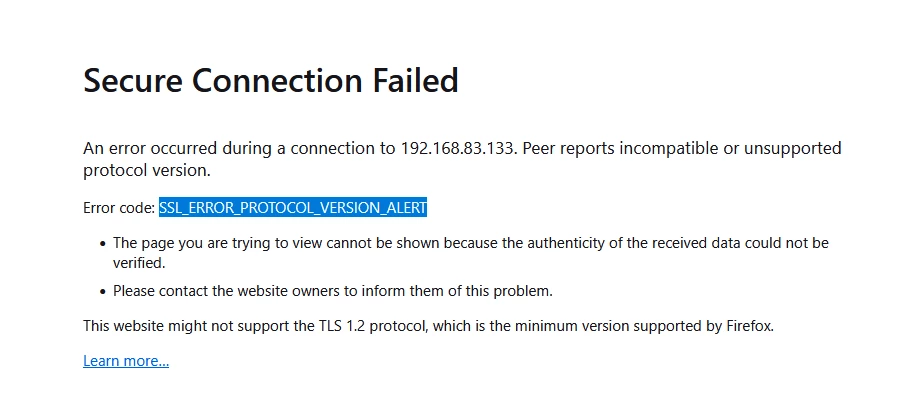

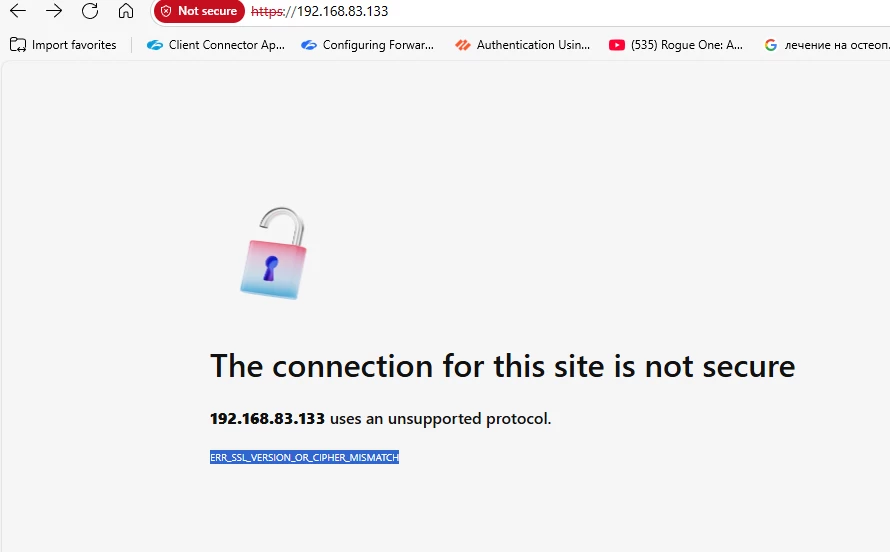

It works for HTTP traffic but for HTTPS traffic the browsers generate "ERR_SSL_VERSION_OR_CIPHER_MISMATCH".





Maybe this something that does not work the trial versions do not support  2 GB RAM FortiGate models no longer support FortiOS proxy-related features | FortiGate / FortiOS 7.6.2 | Fortinet Document Library but it is not clearly stated.













Best answer by AEK

Hello

This is most probably because FGT VM trial supports only low encryption.

https://docs.fortinet.com/document/fortigate/7.6.3/administration-guide/441460

4 replies

AEK
SuperUser
AEKAnswer
SuperUser
May 22, 2025

Hello

This is most probably because FGT VM trial supports only low encryption.

https://docs.fortinet.com/document/fortigate/7.6.3/administration-guide/441460

AEK
    filiaks1
    filiaks1Author
    Explorer III
    May 22, 2025

    With the below commands I saw an error in the authd process.



    diagnose debug application authd -1

    diagnose debug enable
    diagnose debug console timestamp enable



    2025-05-22 16:52:47 [crypto_free:216]: [crypto_free:216]: (crypto/bio/bss_sock.c:111)
    2025-05-22 16:52:47 [crypto_free:216]: [crypto_free:216]: (crypto/ex_data.c:412)
    2025-05-22 16:52:47 [crypto_free:216]: [crypto_free:216]: (crypto/bio/bio_lib.c:147)
    2025-05-22 16:52:47 [crypto_free:216]: [crypto_free:216]: (ssl/ssl_lib.c:1493)
    2025-05-22 16:52:47 [crypto_free:216]: [crypto_free:216]: (crypto/threads_pthread.c:808)
    2025-05-22 16:52:47 [crypto_free:216]: [crypto_free:216]: (ssl/ssl_lib.c:1399)
    2025-05-22 16:52:47 authd_epoll_work: timeout 11690
    2025-05-22 16:52:58 [authd_http_accept_session:1122]: src 192.168.211.1 flag 00010800
    2025-05-22 16:52:58 [authd_http_change_state:2855]: src 192.168.211.1 flag 00010800
    2025-05-22 16:52:58 authd_http: change state from 0 to 1
    2025-05-22 16:52:58 [authd_http_accepting:1201]: src 192.168.211.1 flag 00010800
    2025-05-22 16:52:58 [crypto_malloc:208]: [crypto_malloc:208]: 5408 (ssl/ssl_lib.c:733)
    2025-05-22 16:52:58 [crypto_malloc:208]: [crypto_malloc:208]: 56 (crypto/threads_pthread.c:713)
    2025-05-22 16:52:58 [crypto_malloc:208]: [crypto_malloc:208]: 32 (crypto/stack/stack.c:51)
    2025-05-22 16:52:58 [crypto_malloc:208]: [crypto_malloc:208]: 32 (crypto/stack/stack.c:71)
    2025-05-22 16:52:58 [crypto_malloc:208]: [crypto_malloc:208]: 184 (ssl/ssl_cert.c:95)
    2025-05-22 16:52:58 [crypto_malloc:208]: [crypto_malloc:208]: 360 (ssl/ssl_cert.c:105)
    2025-05-22 16:52:58 [crypto_malloc:208]: [crypto_malloc:208]: 112 (crypto/x509/x509_vpm.c:86)
    2025-05-22 16:52:58 [crypto_free:216]: [crypto_free:216]: (ssl/s3_lib.c:3536)
    2025-05-22 16:52:58 [crypto_free:216]: [crypto_free:216]: (ssl/s3_lib.c:3538)
    2025-05-22 16:52:58 [crypto_free:216]: [crypto_free:216]: (ssl/s3_lib.c:3540)
    2025-05-22 16:52:58 [crypto_free:216]: [crypto_free:216]: (ssl/s3_lib.c:3541)
    2025-05-22 16:52:58 [crypto_free:216]: [crypto_free:216]: (ssl/s3_lib.c:3542)
    2025-05-22 16:52:58 [crypto_free:216]: [crypto_free:216]: (ssl/s3_lib.c:3549)

    Yurisk
    SuperUser
    Yurisk
    SuperUser
    May 22, 2025

    As @AEK correctly said - because you are using free evaluation VM license, it (VM FGT) will only support high (read - acceptable by today's browsers) encryption for the Admin HTTPS management interface, nothing else. So, you browser, when presented with the low encryption cipher suite will just refuse to enter the page. Nothing you can do about that except buying a normal license or spinning licensed FGT on some public cloud. But you are using it for testing so it is probably OK as is.



    yurisk.info - all things Fortinet blog, no ads
      filiaks1
      filiaks1Author
      Explorer III
      May 23, 2025

      Thanks @Yurisk  and @AEK for the fast replies. I think this can be documented in the knowedge base as what limitations the trial license has.
