fortigate Capitave portal Issue

4 replies
2790 views

when configured captive portal some sites didn't work with error :
err1 - ERR_QUIC_PROTOCOL_ERROR
err2 - ERR_SSL_VERSION_OR_CIPHER_MISMATCH

like : YouTube , google , LinkedIn and google search

else some sites works normally and redirect to captive portal AUTH page .

when I remove or authenticate all sites works normally

I try it with (chrome , brave and IE browsers)

(version 7.0.9 VM)

FortiGate

FortiGate

mgoswami

Staff

Hi,

Can you please try disabling QUIC in Chrome and block QUIC on the FortiGate?

BR,

Manosh

MahmoudH93Author

Visitor III

hello Manosh

i do it with no hope still err and all sites didn't response

ERR_CONNECTION_TIMED_OUT

and i configured it with 3 way and still issue exist

rvchande2

New Member

Hi There,

I am also facing the same error while captive portal is enabled.

Please find attached snapshot more information.

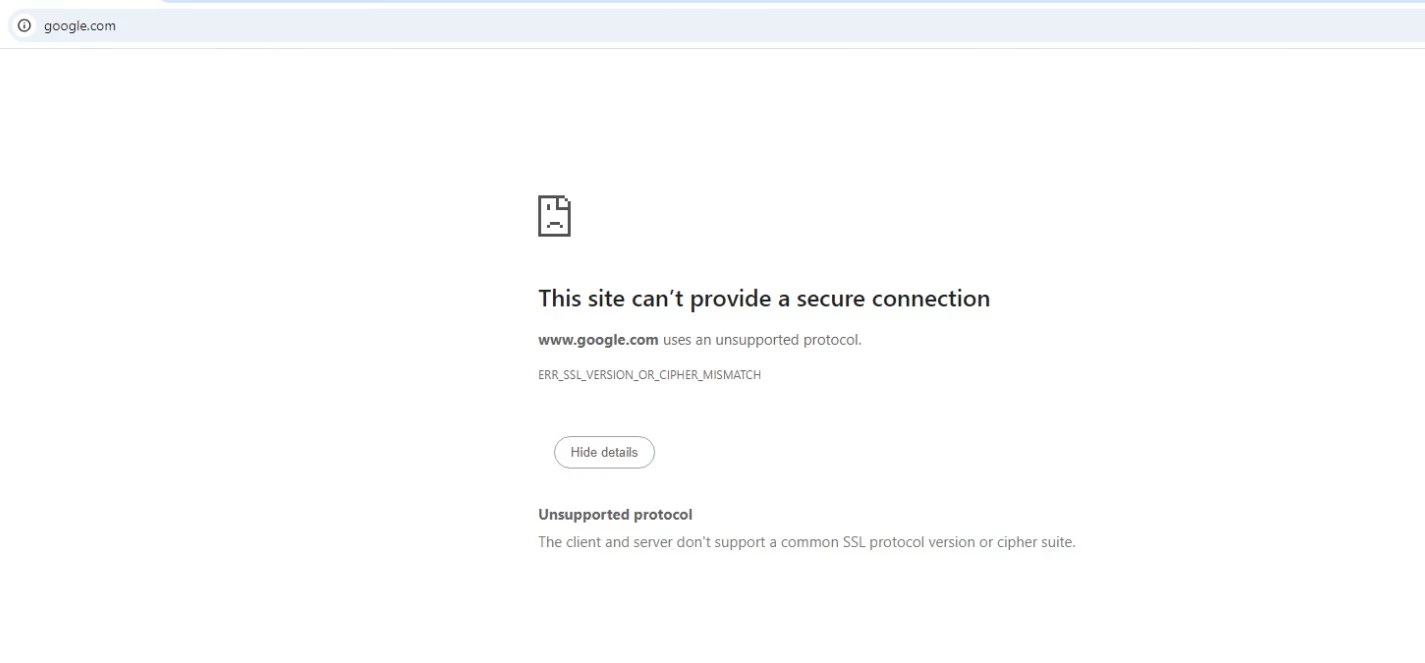

Captive-Google error.jpg

Can someone please reply what should be done?

Regards,

Ravi

kaman

Staff

Hello MahmoudH93 and rvchande2,

The errors "err_quic_protocol_error" and "err_ssl_version_or_cipher_mismatch" you are encountering when accessing certain sites like YouTube, Google, LinkedIn, and Google Search while the captive portal is configured indicate issues with the SSL/TLS handshake between the client and the server. Here are some steps to troubleshoot this issue:

1. **Check SSL/TLS Settings**: Ensure that the SSL/TLS settings on the captive portal are correctly configured to support the required protocols and ciphers for these websites.

2. **Certificate Validation**: Verify that the SSL certificate used by the captive portal is valid and trusted by the client browsers.

3. **Browser Settings**: Check if there are any browser-specific settings causing the SSL errors. Clearing browser cache and cookies might help.

4. **Network Configuration**: Ensure that there are no network issues affecting SSL/TLS connections to these sites. Check for any firewall rules blocking specific protocols or ports.

5. **Update Browsers**: Make sure your browsers are up to date to support the latest SSL/TLS protocols and ciphers.

6. **Test with Different Devices**: Try accessing the sites from different devices to see if the issue is specific to a particular device.

Please refer to the below document for more information:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Unsupported-protocol-during-HTTPS-access-ERR-SSL/ta-p/241702

If you have found a solution, please like and accept it to make it easily accessible to others.
