FortiGate Blocking traffic from FortiSwitch (Link port A)

Hello Gsingh,

1.)Please share the below command output from fortigate cli
diagnose ip address list

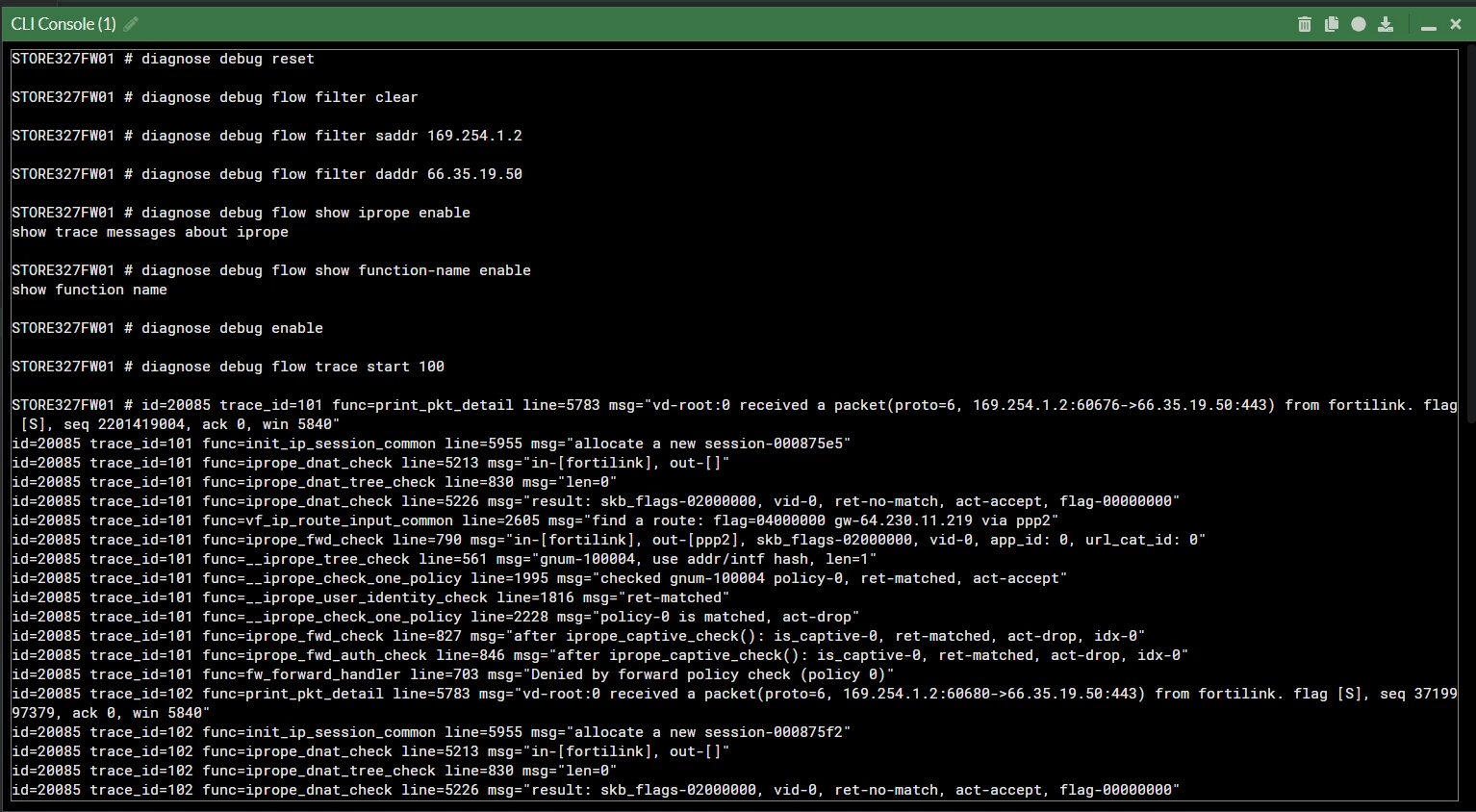

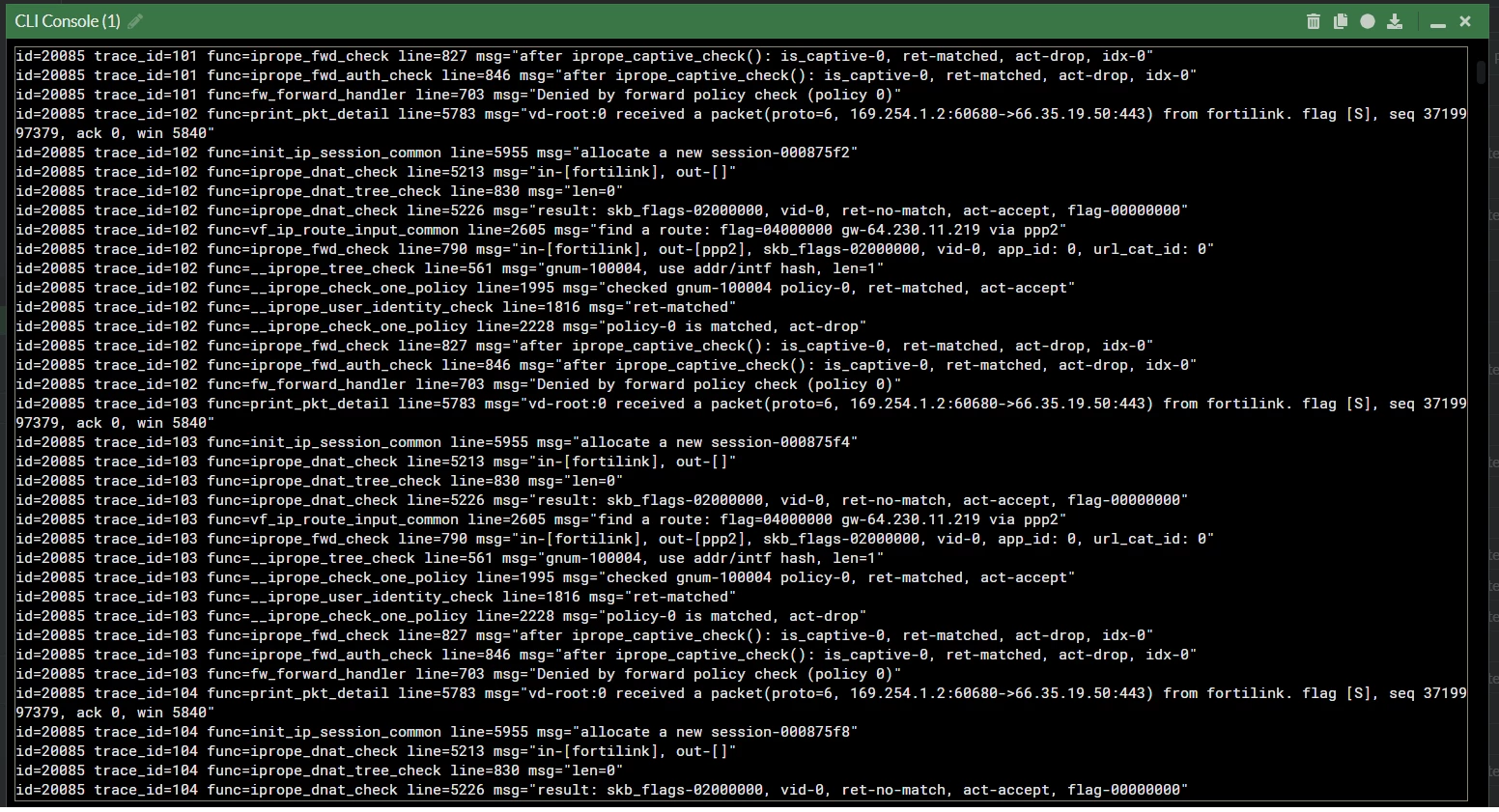

2.)Also , please run the below commands in fortigate cli and initiate the traffic, please get the outputs.
diagnose debug reset
diagnose debug flow filter clear
diagnose debug flow filter saddr 169.254.1.2
diagnose debug flow filter daddr 66.35.19.50
diagnose debug flow show iprope enable
diagnose debug flow show function-name enable
diagnose debug enable

Hi @knagaraju

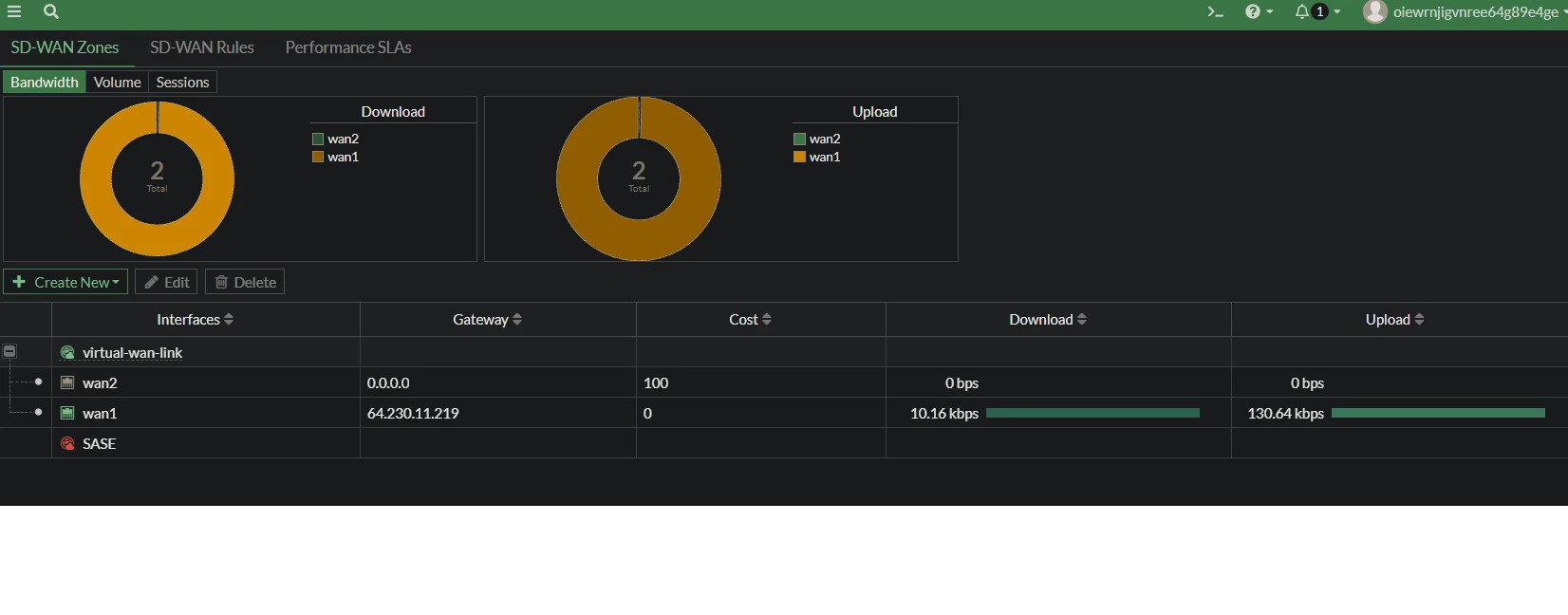

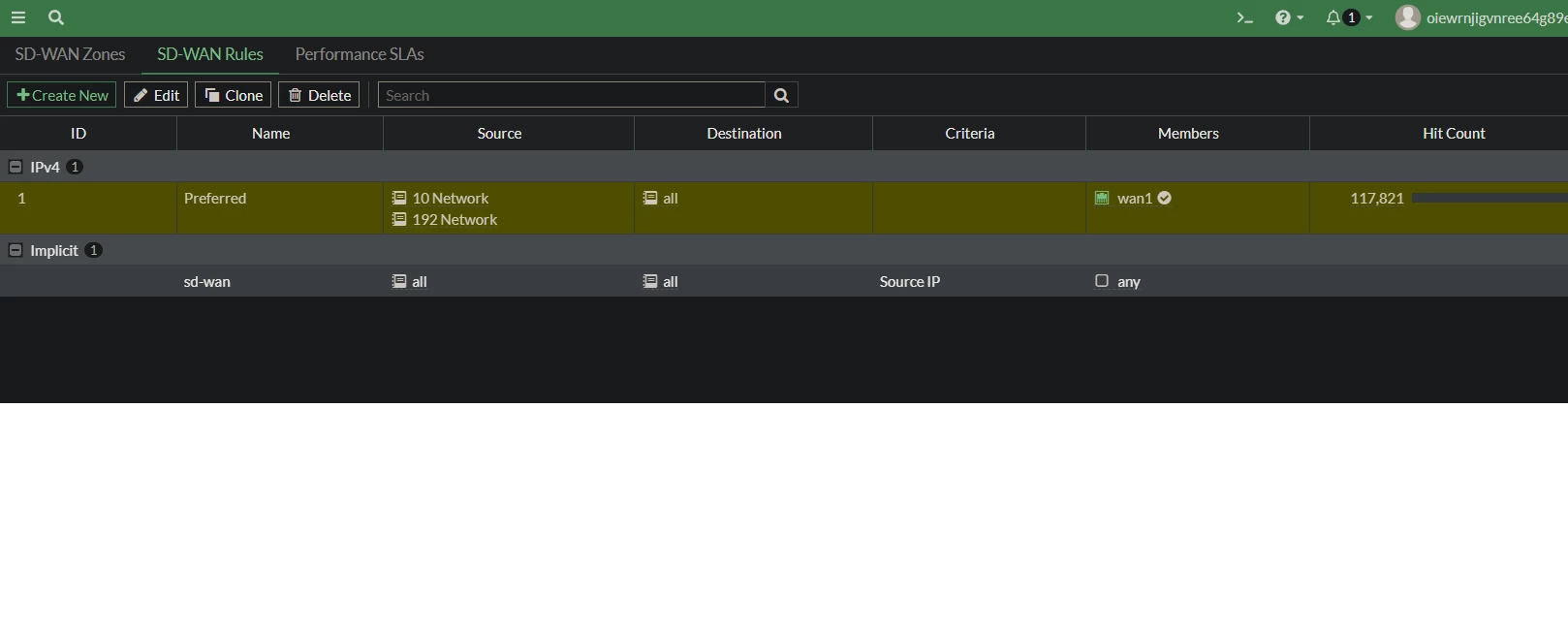

It is set to ppp2 as well. For your clarification I am attaching the screenshot for SD-WAN setting in my firewall. I raised the ticket as well. The ticket number is: 7514487.

I am facing the same exact issue. Was your issue resolved? If so, what was the resolution?

You cannot route APIPA addresses (169.254.0.0/16) outside the local link. If you need this access then change the subnet to something that can route properly like RFC1918 addressing with appropriate SNAT configured on the policy.

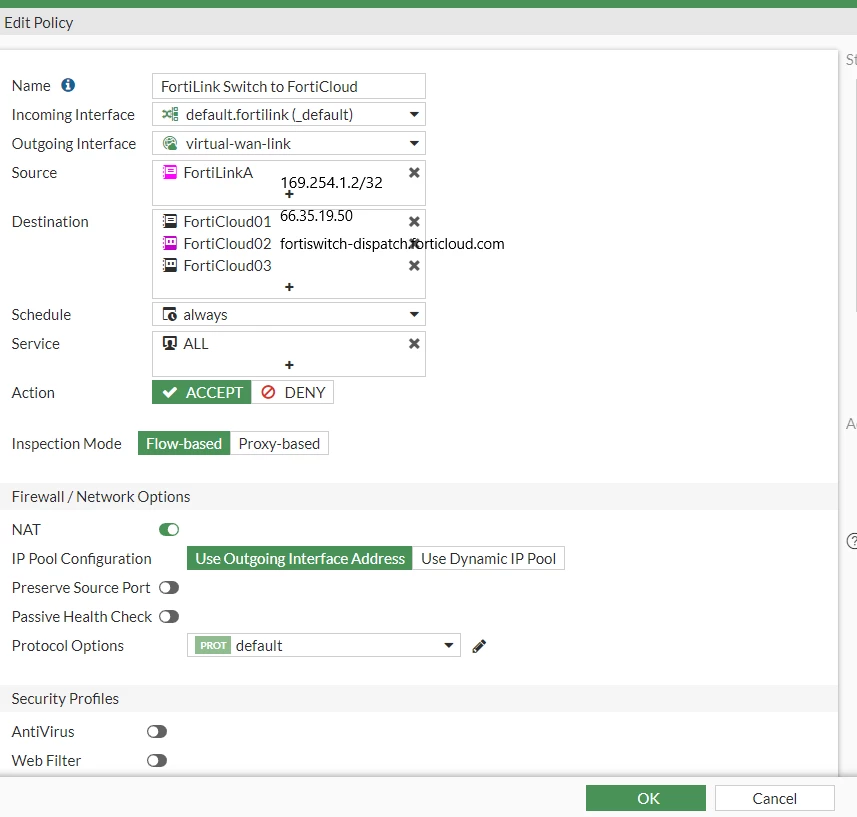

The incoming interface for this traffic is FortiLink not default.fortilink (_default) which is configurable only through the CLI. My advice is to create a policy through the CUI and then edit the source interface in the CLI.

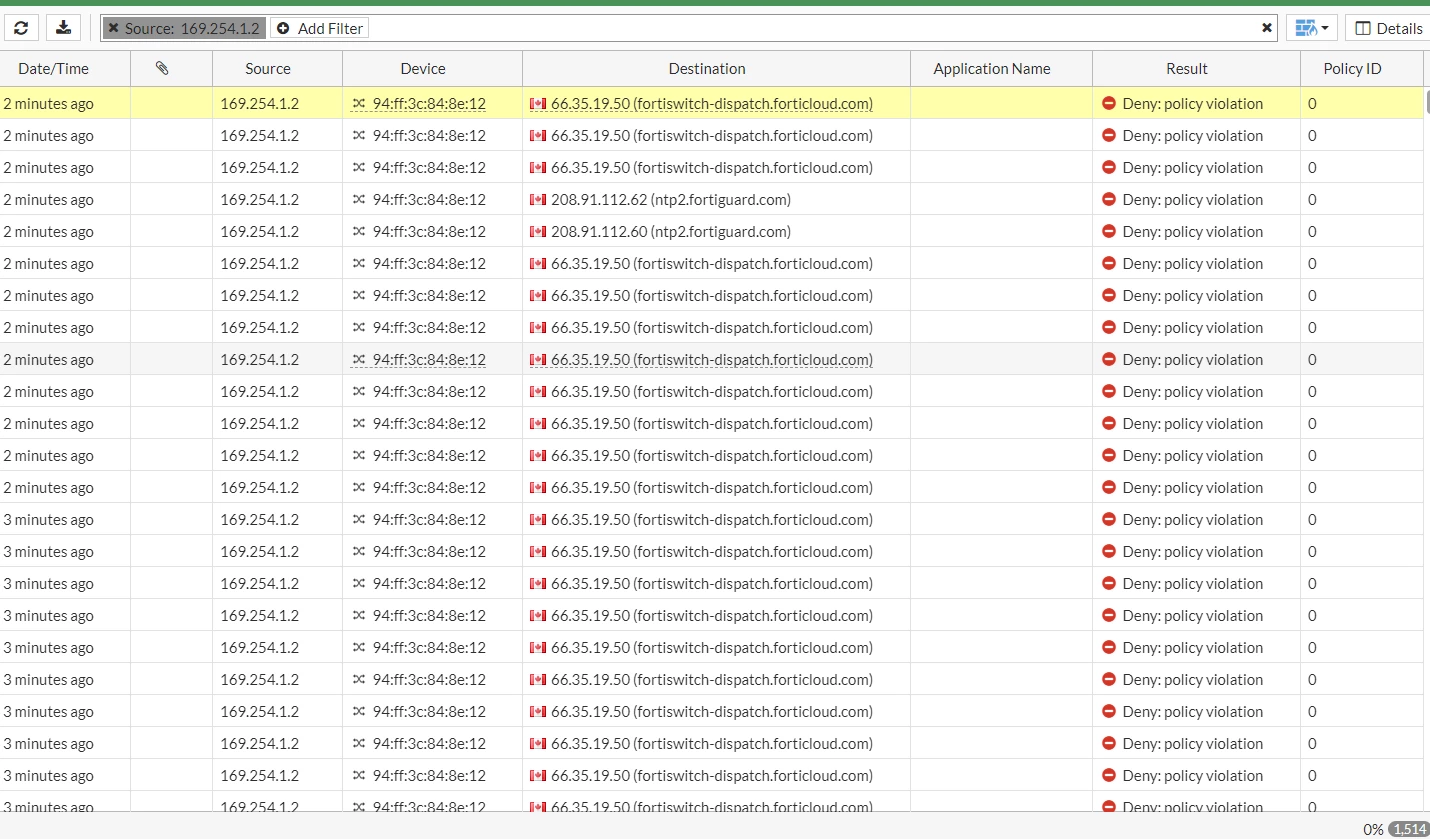

What's the solutiuon to either allow the traffic or at least prevent the logging of it without turning off logging in policy 0/implicit?

(I tried doing the same as the OP here, but somehow policy 0 is still being cited, which is an inbound rule, but this traffic is in the traffic logs, are polluted with denials multiple times per minute)

I eneded up just turning it off :)

config system flan-cloud

(flan-cloud) # get
interval : 3
name : fortiswitch-dispatch.forticloud.com
port : 443
status : enable

set status disable

end
