January 4, 2024
Question

FortiGate 80F and MFA Issues

  • January 4, 2024
  • 10 replies
  • 5886 views

It's been nearly a year since I moved from Cisco to Fortinet and I have to say MFA is extremely buggy. Currently running v7.4.1 build2463. We are using LDAP to create our user accounts and then add the user into a local user group on the FortiGate, then finally enabling two-factor. We will run into issues where a user will be entering in the correct username, password, and MFA token but a (using FortiTokens) message like VPN server is unreachable is thrown on the client side. I've tried debugging with no luck and I've also had a few tickets opened with support and once again no resolution. Starting to think I should have never switched to Fortinet. The only fix we can come up with is to disable MFA and then reboot the device and then the user can finally connect but only using only password authentication. Has anyone else dealt with this issue and if so what was your fix? I can't be the only one with this problem. Thanks in advance!

10 replies

akumar02
Staff & Editor
akumar02
Staff & Editor
January 4, 2024

Hello Sean,

I am sorry to hear about your experience with MFA.
Did you try to increase the remoteauthtimeout on Fortigate?
# config system global
    set remoteauthtimeout <1-300s>
end
The default timer is 5 seconds only and if you are using the Remote users to authenticate with Fortitoken, the athentication can timeout.
Kindly refer to this article for reference:

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-SSL-VPN-and-two-factor-expiry-timers/ta-p/191661#:~:text=The%20remoteauthtimout%20setting%20does%20not,can%20lead%20to%20the%20FortiGate.

I would also recommend testing with your Fortigates Local Users as well.

    seanmd
    seanmdAuthor
    Visitor III
    January 4, 2024

    Thank you I believe I did this along with username sensitivity set to disable. I will check right now and report back.

      akumar02
      Staff & Editor
      akumar02
      Staff & Editor
      January 4, 2024

      Thank you. Kindly keep us posted.

      seanmd
      seanmdAuthor
      Visitor III
      January 4, 2024

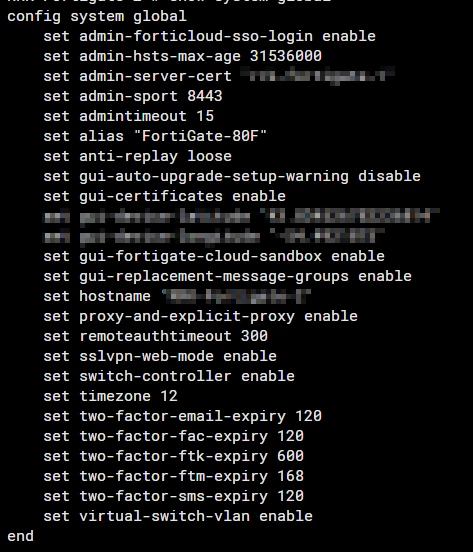

      I think this is good?

      2024-01-04 11_28_54-FortiGate - RRK-Fortigate-2.png

        akumar02
        Staff & Editor
        akumar02
        Staff & Editor
        January 4, 2024

        Yes, this looks good. now you can test it.
        I wonder if you have Webmode in SSL VPN as well. Just in case this is something related to the FortiClient only. You can test your user in SSL VPN Web mode.
        ----

        Arun

        Sheikh
        Staff
        Sheikh
        Staff
        January 4, 2024

        Hello @seanmd ,



        The values looks fine. Please also check the latency between Fortigate and domain controllers; if they are on the same site then these values should be fine. Moreover, these debugs will help you see what is happening during authentication.



        diagnose debug console timestamp enable

        diagnose debug app fnbamdd -1

        diagnose debug app sslvpn -1

        diagnose debug enable



        ****reproduce the issue****



        regards,



        Sheikh

        seanmd
        seanmdAuthor
        Visitor III
        January 4, 2024

        Thank you! I will reach out to the user who was having problems this morning and I will turn two-factor back on and test with him. The web mode SSLVPN is disabled per our cyber insurance.

        seanmd
        seanmdAuthor
        Visitor III
        January 4, 2024

        No issues with latency to my DC's



        PING 192.168.1.12 (192.168.1.12): 56 data bytes
        64 bytes from 192.168.1.12: icmp_seq=0 ttl=128 time=0.3 ms
        64 bytes from 192.168.1.12: icmp_seq=1 ttl=128 time=3.3 ms
        64 bytes from 192.168.1.12: icmp_seq=2 ttl=128 time=0.3 ms
        64 bytes from 192.168.1.12: icmp_seq=3 ttl=128 time=0.2 ms
        ^[[A64 bytes from 192.168.1.12: icmp_seq=4 ttl=128 time=0.2 ms

        --- 192.168.1.12 ping statistics ---
        5 packets transmitted, 5 packets received, 0% packet loss
        round-trip min/avg/max = 0.2/0.8/3.3 ms

        RRK-Fortigate-2 # execute ping 192.168.1.99
        PING 192.168.1.99 (192.168.1.99): 56 data bytes
        64 bytes from 192.168.1.99: icmp_seq=0 ttl=128 time=0.2 ms
        64 bytes from 192.168.1.99: icmp_seq=1 ttl=128 time=0.3 ms
        64 bytes from 192.168.1.99: icmp_seq=2 ttl=128 time=0.2 ms
        64 bytes from 192.168.1.99: icmp_seq=3 ttl=128 time=0.3 ms
        64 bytes from 192.168.1.99: icmp_seq=4 ttl=128 time=0.2 ms

        Sheikh
        Staff
        Sheikh
        Staff
        January 5, 2024

        Hello @seanmd

        This looks fine, you can try to increase the "remoteauthtimeout" value and also check the output of debugs.



        regards,



        Sheikh

        seanmd
        seanmdAuthor
        Visitor III
        January 16, 2024

        Sorry for the late response, but none of the aforementioned changes worked. I had two users last week who could not connect when MFA is enabled. The only fix was to disable MFA, reboot, and then the user was able to login to the VPN. Very frustrating for everyone.

        Immu
        Immu
        Explorer III
        January 16, 2024

        Hi,



        don't have the exact same scenario... I don't use a LDAP-Server for that.

        All users are configured as local users and MFA via mail works fine.



        Can you try your setup with a local user instead of a LDAP user?

        I know that it doesn't solve your current problem, but maybe it narrows down to the actual source of the error.



        Best regards

        Immu
