Fortigate 80C stopped, need help.

  • February 4, 2013
  • 11 replies
  • 18927 views

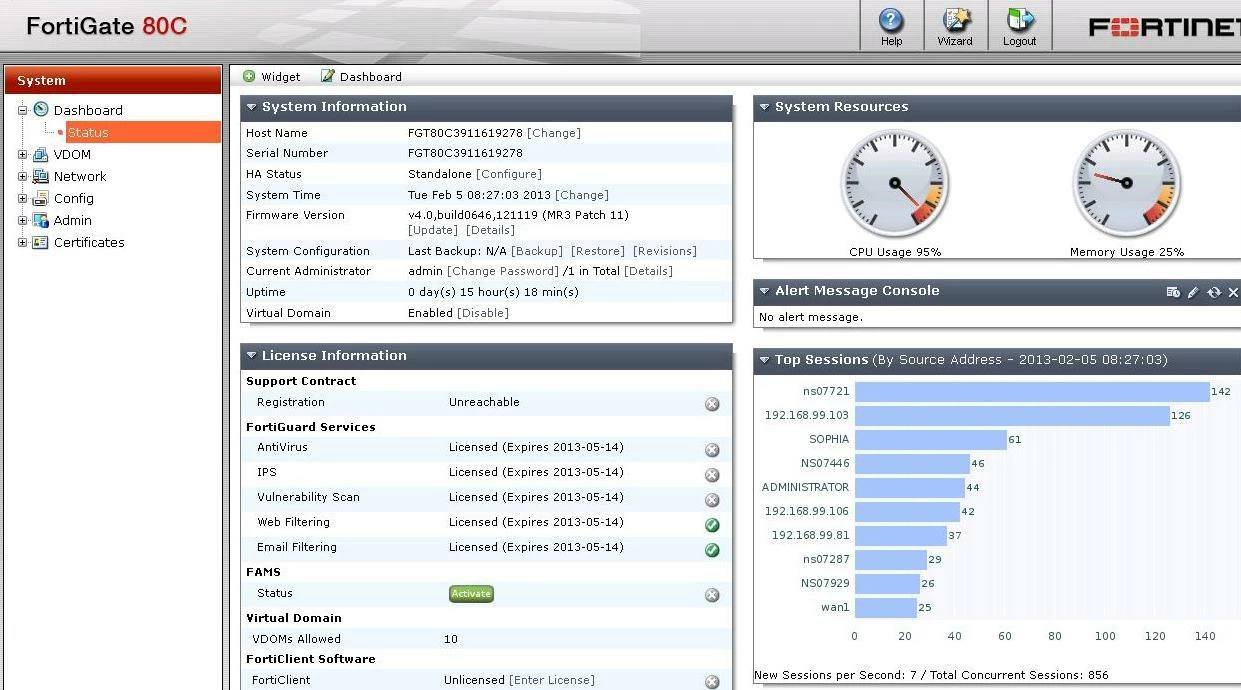

Hi there, I an newbie here. Just got a problem for 80C. It stopped working occasionally, nobody could go to internet. When I login it show on Dashboard that Registration unreachable. AntiVirus, IPS and Vulnerability Scan all failed. CPU usage was around 95% high. When click on CLI Console it shows Connected but with error: Cannot read termcap database, using dumb terminal setting. All log file are missing. When I tried to reboot it just hang. I have to disconnect the power and wait for a few minutes. after trun it on normally it works fine. Checked the log after restarting, it stopped logging anything sometime a few hours ago. It seems this more often since this January. I am not good at Fortigate and CLI. If you have any ideas about this issue I am glad to hear. Thank you. The screenshot is below.

    11 replies

    Dave_Hall
    Dave_Hall
    New Member
    February 4, 2013
    Hi Jerry. Welcome to the forums. I have noticed you have vdoms enabled -- was that your doing and/or do you actually need vdom support on the Fortigate? That may be your problem right there.
    jerrynz
    jerrynzAuthor
    New Member
    February 4, 2013
    Hi Dave, We do have two VDOMs for two different networks. It worked well for the last eight months. You think that' s the problem?
    ede_pfau
    SuperUser
    ede_pfau
    SuperUser
    February 5, 2013
    No. I mean, you' ve got 2 obvious problems: high CPU usage and Fortiguard network not reachable. To check which process eats up your CPU cycles: - open the console - type ' diag sys top 10' - type ' P' - quit after a while, copy the text and post here FG network: - post your settings in System>Config>FortiGuard especially the closed section ' AntiVirus and IPS Options' - tell us how the FGT is connected to the internet (any intermediate routers? NAT?)
    Matthijs
    Matthijs
    New Member
    February 5, 2013
    After a reboot try to run the following command on the cli: execute update-now (when running in vdom mode first type config global) if registration is still unreachable after a few minutes try to ping fortiguard: exec ping service.fortiguard.net
    jerrynz
    jerrynzAuthor
    New Member
    February 6, 2013
    Thank you, Ede and Matt. I tried to connect to 80C https web interface this morning but cannot. It shows connection was reset. Internet seems work fine. I will try to restart it and then try those CLI command, when there are not too any users.
    jerrynz
    jerrynzAuthor
    New Member
    February 7, 2013

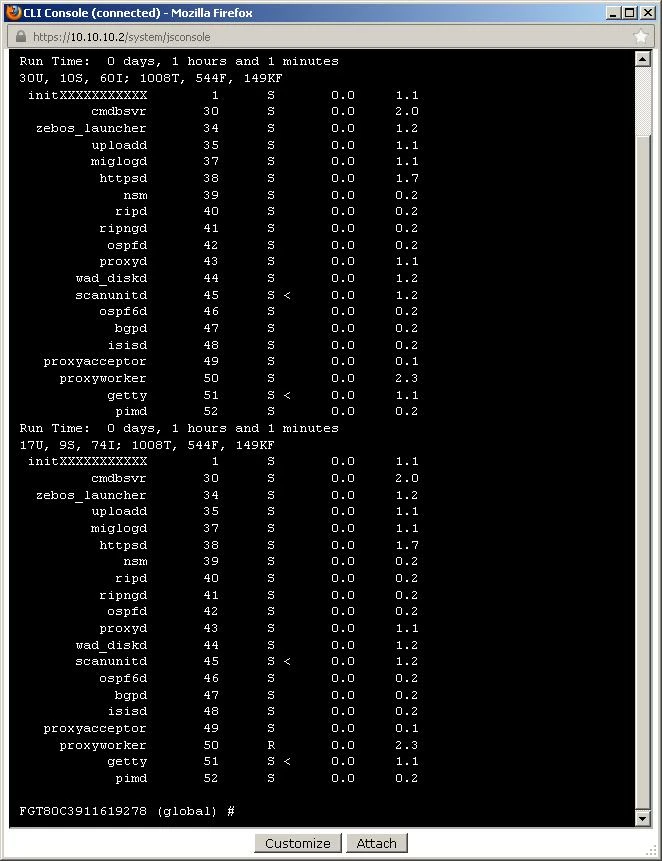

    Hello Ede, The result for CLI command ' diag sys top 10' :
    jerrynz
    jerrynzAuthor
    New Member
    February 7, 2013

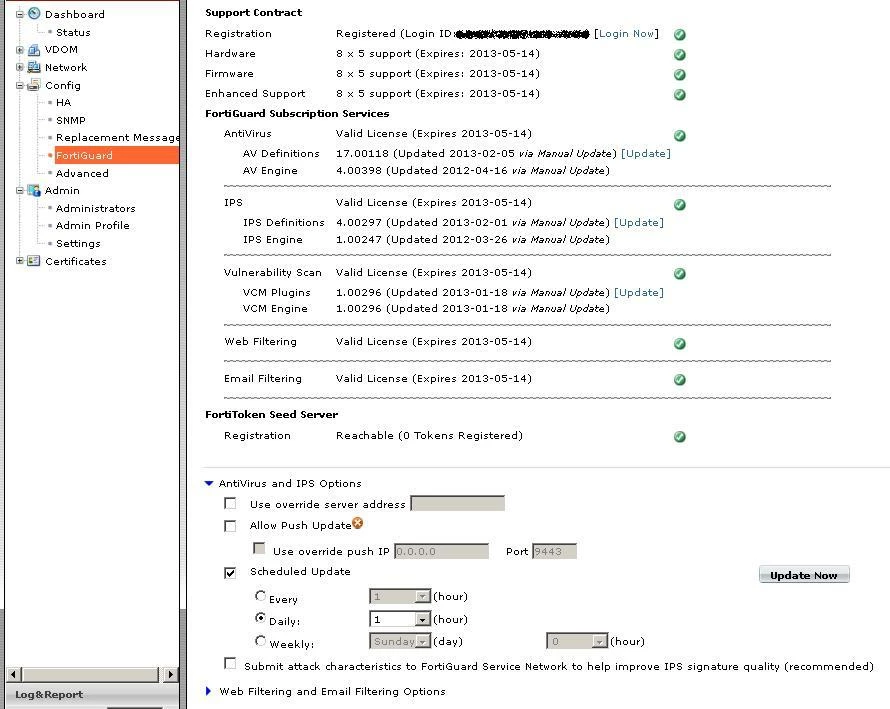

    Screenshot for FortiGuard config:
    jerrynz
    jerrynzAuthor
    New Member
    February 7, 2013
    It works well now. But there are some problems somewhere. I cannot access all logs now. It just hang when I click any log like traffic log, event log. the high CPU usage and unreachable Fortiguard only happen when users cannot connect internet.
    Carl_Wallmark
    Carl_Wallmark
    New Member
    February 7, 2013
    My guess is that you have a corrupt filesystem, Do a backup of config. Do a fresh format of the flash, and upload same firmware. Restore the config.
    jerrynz
    jerrynzAuthor
    New Member
    February 11, 2013
    Thank you all for your help. I tried rebuild sql database on Saturday but failed. I tried to format log disk and this seems fix the issue. Till now it works very well.
