Fortigate 60E high memory usage at boot with firmware 7.4.7

  • April 23, 2025
  • 3 replies
  • 2628 views

Good day,

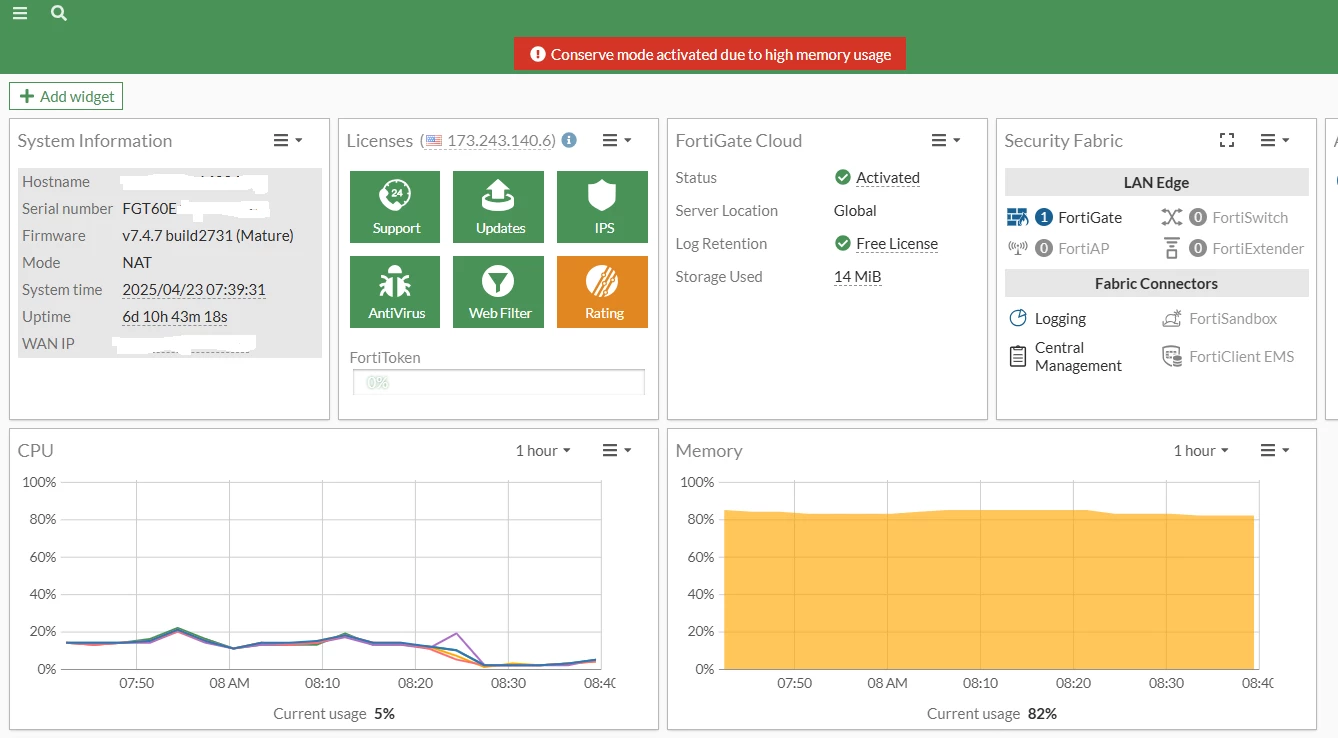

after upgrading our 60E to 7.4.7 firmware we noticed that just at boot the memory usage goes 60% used.

This has caused issues when it goes over 80% as all RDP session are dropped.

If we reboot the unit, it starts at 60%

How can I check which memory process is eating that?




3 replies

bestpty
bestptyAuthor
New Member
April 23, 2025

Perhaps I can apply this script for reducing memory usage:
Technical Tip: Script for reducing memory usage in small FortiGates experiencing conserve mode

fabs-net
fabs-net
Explorer III
April 23, 2025

Hi,

could you check your "General System Events" first and try to spot some strange behavior?
I ran into this issue at a 60F after 7.4.7 upgrade:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Error-Fail-to-Update-IPSA-Driver-Status-After/ta-p/378119



KR Fabian

Every packet has a journey.
    bestpty
    bestptyAuthor
    New Member
    April 23, 2025

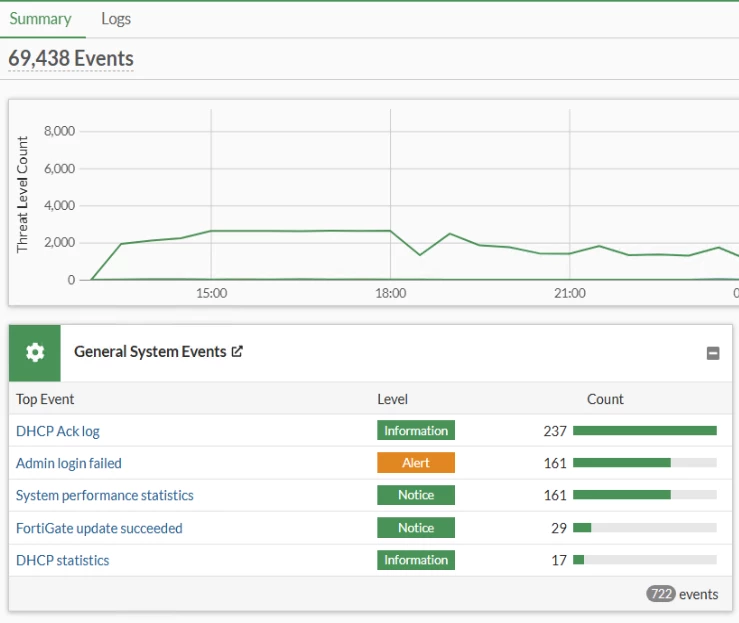

    Here is a screenshotgse.png

    fabs-net
    fabs-net
    Explorer III
    April 23, 2025

    Just try to doublecheck in the General System events if there are entry which indicates issues with IPS engine.
    If I take a look on your screenshot, click "Logs" on the top left and then "General System Events" on the top right, there should be further information.



    Otherwise try to check the last article I posted, thats also a problem, with IPS Engine.

    Every packet has a journey.
    bestpty
    bestptyAuthor
    New Member
    April 23, 2025

    Apparently, the IPS engine is killing me.

    Run Time:  0 days, 1 hours and 40 minutes 9U, 0N, 1S, 88I, 0WA, 0HI, 2SI, 0ST; 1866T, 492F           fcnacd      151      R      12.1     0.7    1           httpsd      658      S       7.9     0.6    0        ipsengine      285      S <     6.9     4.4    0        ipsengine      282      S <     6.1     4.5    2        ipsengine      283      S <     5.9     4.4    1        ipsengine      284      S <     4.7     4.4    3             node      155      S       2.3     3.0    2          miglogd      154      S       1.1     1.7    0          updated      159      S       1.1     0.7    3          miglogd      275      S       0.7     1.0    3          fgtlogd      161      S       0.7     0.8    0           httpsd      654      S       0.5     0.7    1        locallogd      162      S       0.5     0.6    3              wad      271      S       0.1     1.7    2           cw_acd      177      S       0.1     1.2    3        forticron      144      S       0.1     1.0    1           httpsd      656      S       0.1     0.6    3        urlfilter      250      S <     0.1     0.5    0            snmpd      163      S       0.1     0.5    3           newcli      662      R       0.1     0.4    0



    regeX
    regeX
    New Member
    July 28, 2025

    @bestpty hello, may i know what is your solution on this? we also hitting same issue with ipsengine which causing the firewall keep on rebooting after upgrade to 7.4.8.
