Question

FortiGate 500E V7.2.3 not sending Logs to FortiGate Cloud

  • January 12, 2023
  • 15 replies
  • 5003 views

Just updated to Version 7.2.3 from FGT_500E-v6-build1319.

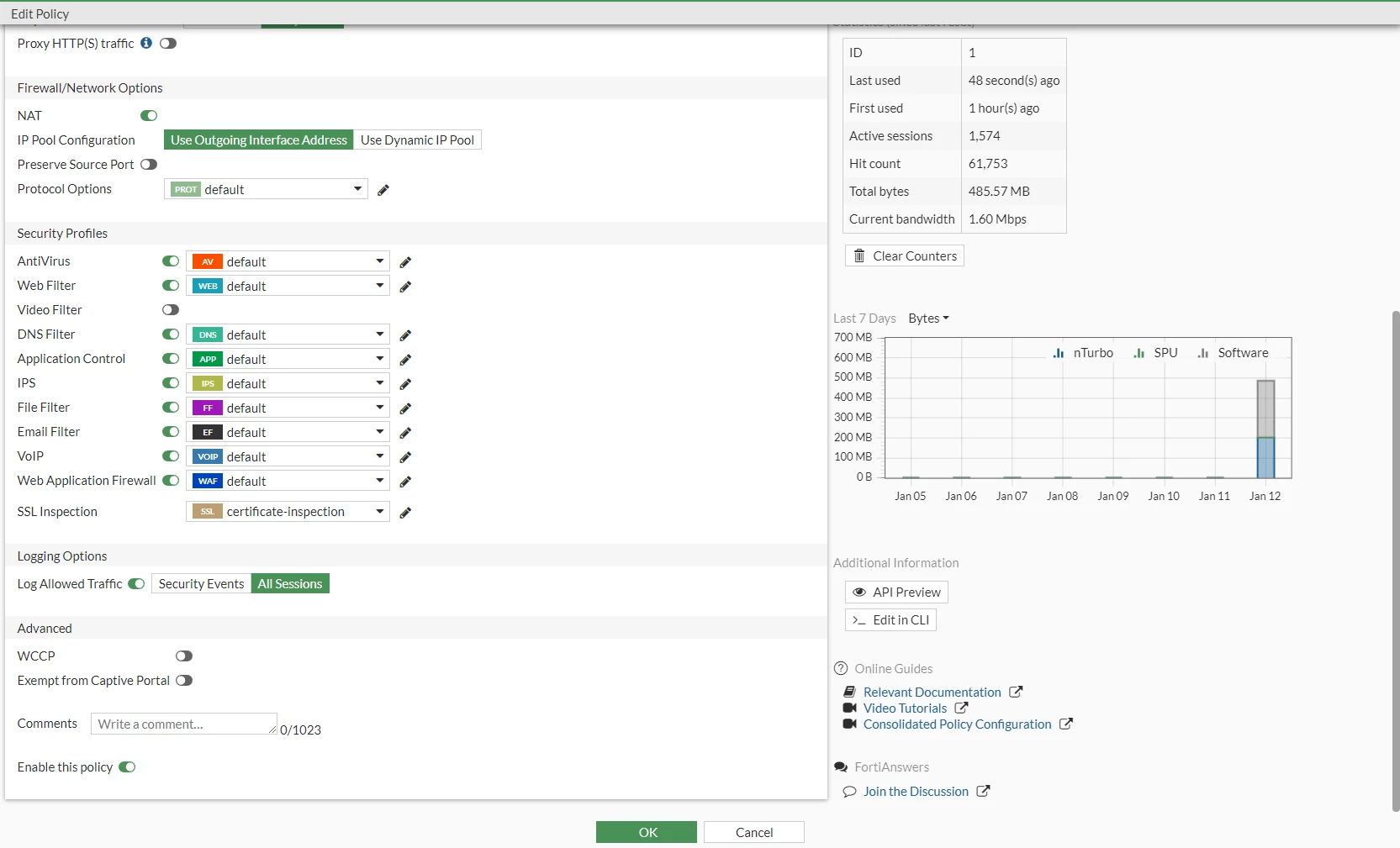

When i go to look at any logs on the Fortigate, if I select from Memory (Now) they show up but if I select 5mins or longer (FortiGate Cloud) there are no logs.

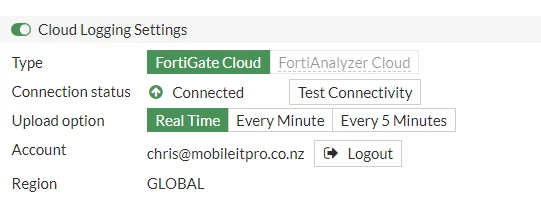

Under Log Settings, I can see Connection Status is connected.

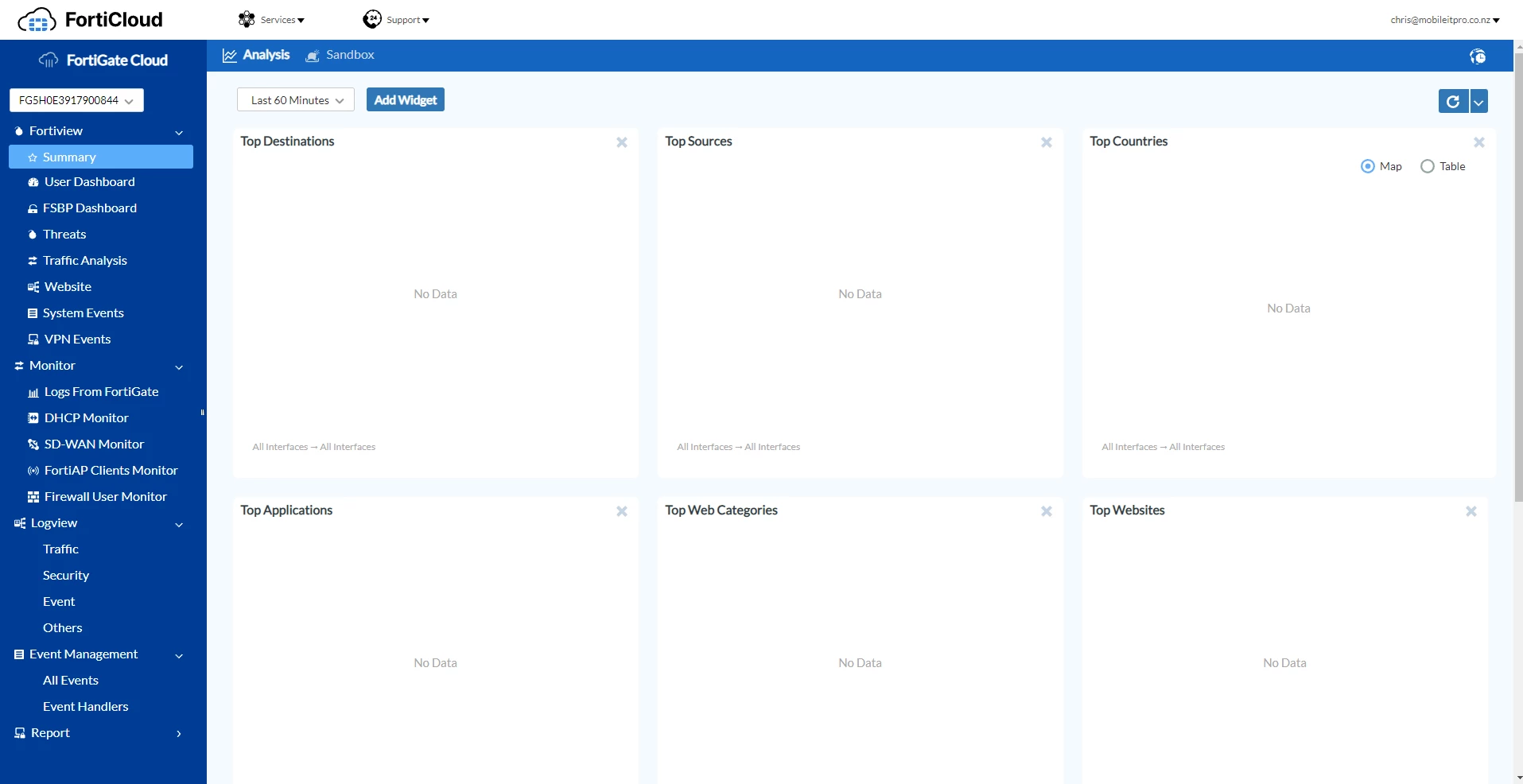

When I look at FortiGate Cloud I see no logs when I select the option Last 60 mins, If i select 24 Hours it shows the logs from before the firmware upgrade.

SpankyDevil_0-1673515216325.pngSpankyDevil_1-1673515256758.pngSpankyDevil_2-1673515391584.png



15 replies

akristof
Staff
Staff
January 12, 2023

Hello,

 Check these outputs:

diag test app forticldd 2

diag test app forticldd 3

diag test application miglogd 1

diag test application miglogd 3

diag test application miglogd 4





SpankyDevil
New Member
January 12, 2023

Hi Adrian, Please see below results



FG5H0E3917900844 # diag test app forticldd 2
Server: log-controller, task=0/10, watchdog is off
Domain name: globallogctrl.fortinet.net
Address of log-controller: 1
173.243.132.25:443
Source IP: 0.0.0.0
Source IP6: [::]
Statistics: total=23, discarded=0, sent=23, last_updated=9328 secs ago
http connection: is not in progress
Current address: 173.243.132.25:443
Source IP: 0.0.0.0:0
Calls: connect=115, rxtx=69
Current tasks number: 0
Account: name=chris@mobileitpro.co.nz, status=200, type=basic
Current volume: 0B
Current tasks number: 0
Update timer fires in 85391 secs
Daily volume reset timer fires in 1708 secs

FG5H0E3917900844 # diag test app forticldd 3
Debug zone info:
FAZCLOUD:
Domain:GLOBAL
Home log server: 173.243.132.37:514
Alt log server: 173.243.132.33:514
Active Server IP: 173.243.132.37
Active Server status: down
Log quota: 500000000MB
Log used: 10824MB
Daily volume: 1000000MB
fams archive pause: 0
APTContract : 1
APT server: 184.94.112.51:514
APT Altserver: 184.94.112.53:514
Active APTServer IP: 184.94.112.51
Active APTServer status: up

FG5H0E3917900844 # diag test application miglogd 1
have_disk=0, vdom-admin=0
icsa_comp=0, confsync=0
mgmt=root

Global memory setting:
maxsize=168272240, full_first_warning=75, full_second_warning=90
full_final_warning=95


FG5H0E3917900844 # diag test application miglogd 3
fgtdev_buf_sz = 524288.

FG5H0E3917900844 # diag test application miglogd 4
info for vdom: root
memory
traffic: logs=847187 len=616954703, Sun=0 Mon=0 Tue=0 Wed=0 Thu=847187 Fri=0 Sat=0
event: logs=1929 len=1048195, Sun=0 Mon=0 Tue=0 Wed=0 Thu=1929 Fri=0 Sat=0
webfilter: logs=2 len=658, Sun=0 Mon=0 Tue=0 Wed=0 Thu=2 Fri=0 Sat=0
emailfilter: logs=11 len=10331, Sun=0 Mon=0 Tue=0 Wed=0 Thu=11 Fri=0 Sat=0
app-ctrl: logs=98786 len=69031511, Sun=0 Mon=0 Tue=0 Wed=0 Thu=98786 Fri=0 Sat=0
waf: logs=4384 len=3698807, Sun=0 Mon=0 Tue=0 Wed=0 Thu=4384 Fri=0 Sat=0
dns: logs=112 len=74293, Sun=0 Mon=0 Tue=0 Wed=0 Thu=112 Fri=0 Sat=0
ssl: logs=2427 len=1712153, Sun=0 Mon=0 Tue=0 Wed=0 Thu=2427 Fri=0 Sat=0


FG5H0E3917900844 #

SpankyDevil
New Member
January 12, 2023

Under log settings it sometimes shows connected and sometimes unreachable when it says unreachable if i click test it instantly flashes and still says unreachable.

akristof
Staff
Staff
January 13, 2023

Hi, do you use sdwan? Can you show me how your default looks like?

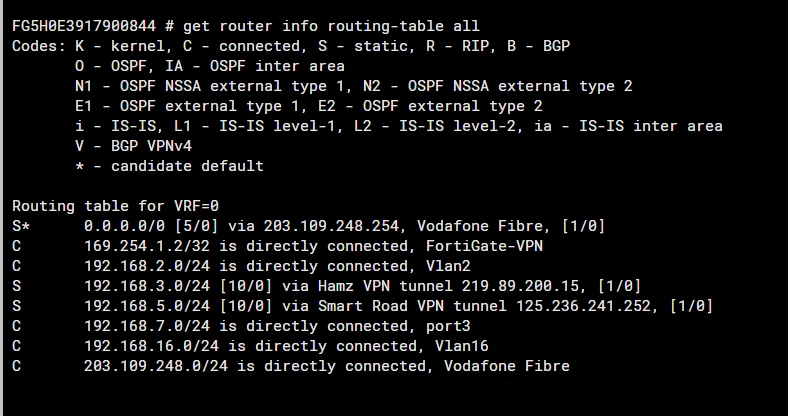

get router info routing-table all (default route should be enough)

SpankyDevil
New Member
January 13, 2023

Hi,

I don't use sdwan.






SpankyDevil
New Member
January 15, 2023

Sorry i still cant follow exactly what i need to do.

abarushka
Staff
Staff
January 16, 2023

Hello,



You may also consider to sniff traffic in CLI using port 514/541 as filter (diagnose sniffer packet any 'port 514 or port 541' 4 0 a) once the issue is triggered.
