Fortigate 30D - VPN configuration

13 replies
71552 views

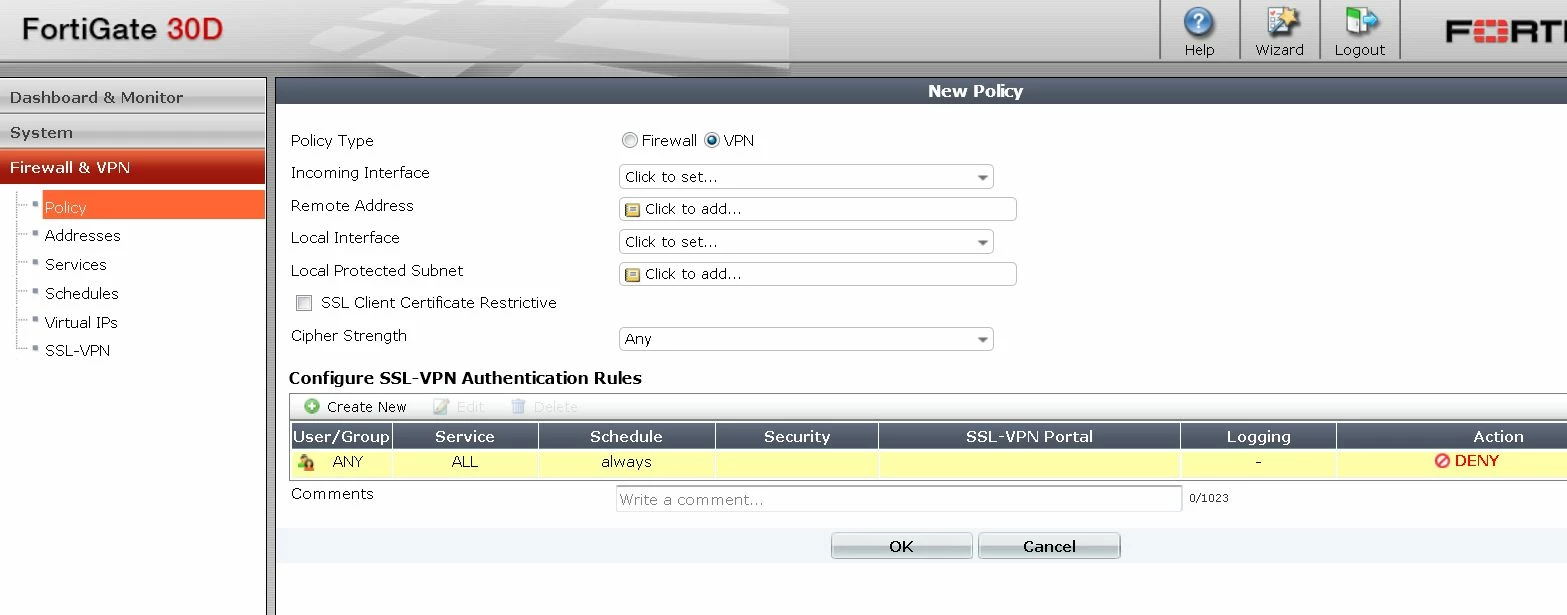

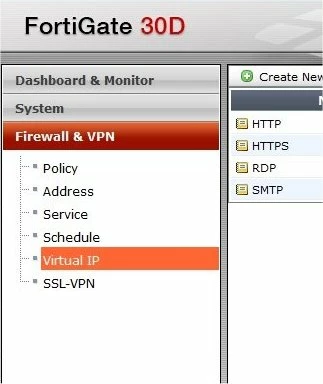

I' ve been looking at all the VPN configuration guides I can find, and for IPSEC they all refer to a VPN menu on the admin tool. But the admin tool for my 30D doesn' t have that - there' s a combined Firewall/VPN menu, and the only VPN choice seems to be SSL. Does the 30D not support IPSEC? Or is there a feature I need to enable? Thanks, Harry

ede_pfau

SuperUser

Hi, the 30D does indeed support IPsec VPN, but configuration is CLI only. There is no option to enable the GUI pages for this. Seems they are only meant to be used as managed tunnel ends. For the exact syntax, see the ' CLI Reference' for v5 on docs.fortinet.com .

hboswellAuthor

New Member

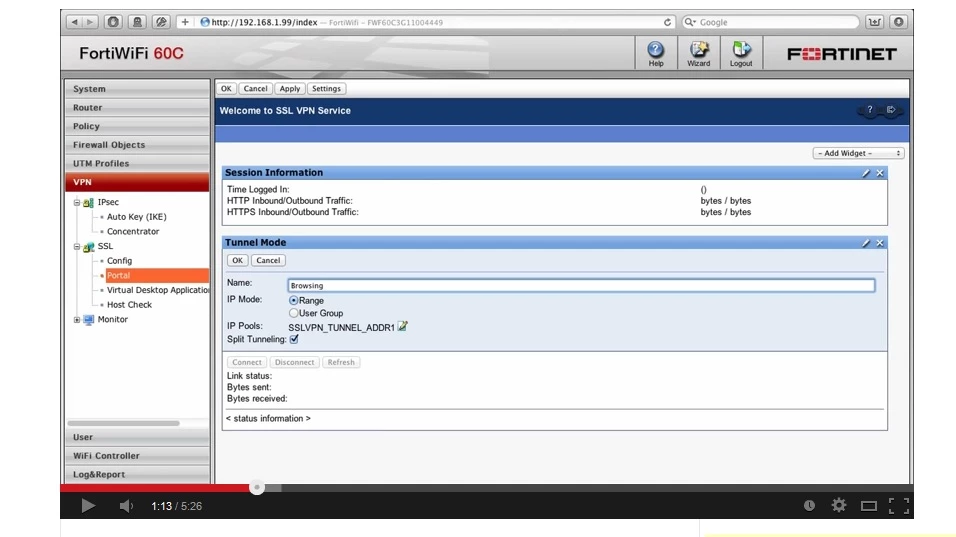

I keep seeing descriptions and screenshots of this menu - or in the case, it' s on the Fortinet Youtube channel. Has it been removed in 5.0?


ede_pfau

SuperUser

??? The screenshot shows a 60C, not a 30D, and SSL-VPN, not IPsec VPN. What exactly is this telling us??? Have you read my previous post? There' s nothing more to it.

hboswellAuthor

New Member

I just keep getting 404-not found for the links on docs.fortinet.com. My point was, I keep seeing this menu referred to, even by the Fortinet support people, who know I' m using a 30D. It shows an IPSEC menu. So I' m a bit confused right now.

ede_pfau

SuperUser

docs.fortinet.com, second tab " Log & CLI Reference" , 2 more clicks...and you end up here: http://docs-legacy.fortinet.com//fgt/handbook/cli_html/index.html Ain' t that difficult. And yes, at second glance your screenshot shows both IPsec and SSL VPN menus, on a 60C. Again, on the 30D IPsec configuration is CLI only. You need both the ' conf vpn ipsec phase1-interface' and ' conf vpn ipsec phase2-interface' commands, and a policy and a static route. Basics like this are well described in the ' FortiOS Cookbook' , both for GUI and CLI configuration. Just take one example from there and you' re done in 5 minutes.

Jordan_Thompson_FTNT

Staff

on the 30D IPsec configuration is CLI only

This is correct in 5.0 -- IPsec VPN configuration must be set up via the CLI on the 30D.

Jack_Gerbs

New Member

As long as you use the default setting at the main site, here is the CLI commands to build an interface-tunnel config vpn ipsec phase1-interface edit " vpn-1" set interface " wan" set proposal 3des-sha1 aes128-sha1 set remote-gw (address of remote site) set psksecret (enter key) next end config vpn ipsec phase2-interface edit " vpnP2" set phase1name " vpn-1" set proposal 3des-sha1 aes128-sha1 next end Hope this helps, Jack

Jack_Gerbs

New Member

Also forgot to mention that you will need to put policies and routes in to make it all work. The commands on my previous post are for a route based VPN (interface mode). Jack

farolito

New Member

Hi. First many thanks about the info, i was bored trying to set the vpn. IÂ´ve got the tunnel up, but without traffic. Could you tell me how did you set the policies to the vpn? Thanks

neonbit

New Member

Hi guys, As an FYI, the 30Ds actually support policy based VPNs via the GUI, it' s only the interface based VPNs that need to be configured via the CLI. Of course if you need to reconfigure the phase1/2 after you' ve created them in the policy you' ll need to do it via the CLI.


farolito

New Member

Many thanks, the VPN rules!

Mordak

New Member

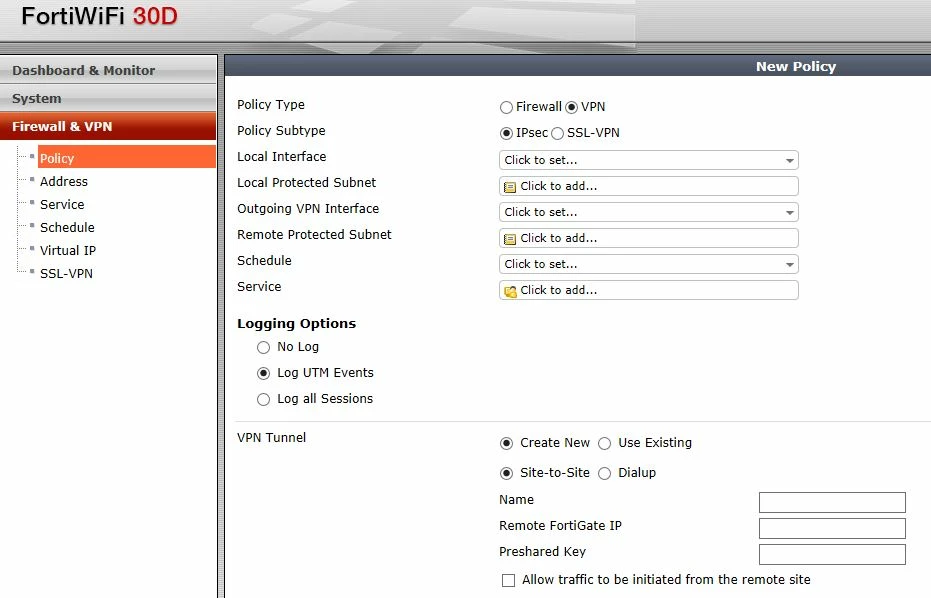

I was surprised to see the FortiWifi30D with the option to make a IPSEC VPN from the new policy window. We were buying FG40C' s and they had the option then started buying the FG30D' s as they were cheaper. A FG30D (the non wifi version) running 5.0.7 definitely does not have the GUI ability to make an IPSEC policy.
