FortiGate 200G QuickStart Guide : GUI hang on Register (no internet access)

  • January 9, 2026
  • 1 reply
  • 718 views

Hi

I continue to try to configure my first FortiGate.

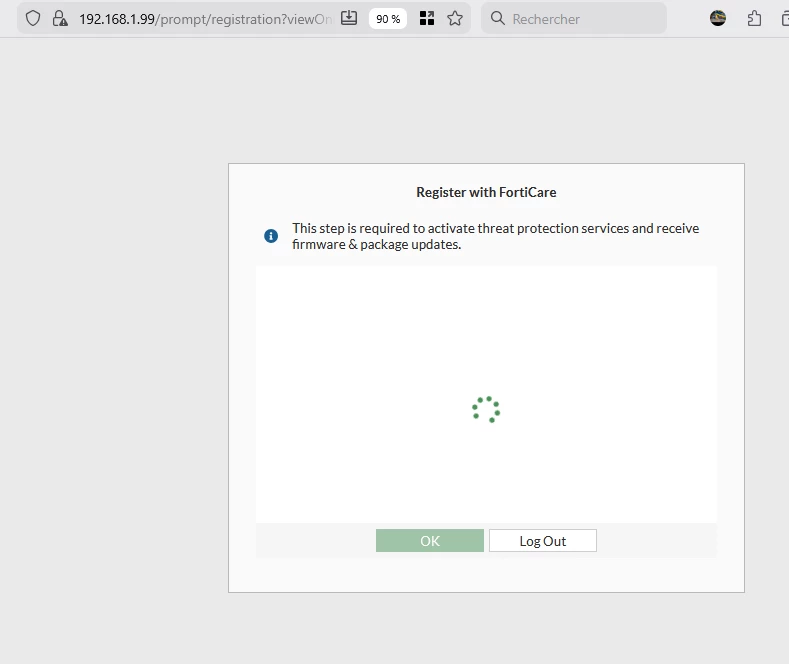

After admin login, the GUI hang on register



Capture d’écran 2026-01-09 181914.png



I think it's beacause it has no internet access.

So I tried to configure on CLI.

First WAN :

 edit "port1"         set vdom "root"         set ip 192.168.99.191 255.255.255.0         set type physical         set alias "WAN"         set role wan         set snmp-index 3     next

 Then route

config router static     edit 1         set gateway 192.168.99.254         set device "port1"     next end

Then DNS

config system dns     set primary X.X.X.X     set secondary X.X.X.X end

Then firewall policy

config firewall policy     edit 1         set name "LAN_to_WAN"         set srcintf "any"         set dstintf "port1"         set action accept         set srcaddr "all"         set dstaddr "all"         set schedule "always"         set service "ALL"         set nat enable     next end



What have I missed :) ?

Regards

Marc

Best answer by sinjiku

Ok I have set port1 on mode dhcp. And now I have access to GUI :)



1 reply

sinjiku
sinjikuAuthorAnswer
New Member
January 9, 2026

Ok I have set port1 on mode dhcp. And now I have access to GUI :)
