Fortigate 200A the tab “changes mode” in web manager is missing

Forum|Forum|10 years ago
May 8, 2016
2 replies
14566 views

hi guys

I recently bought two FortiGate 200A on ebay for my own training and one of them the tab “changes mode” in internal interface web manager is missing . they have the same firmware except bios is different 04000003 and 04000000 I notice that when you type get system status the line Internal Switch mode: interface is missing ? can someone please help me to resolve this problem ?

I do not know if its just the firmware are bad or the bios ?

The firmware is FGT_200A-v400-build0689-FORTINET.out

the other model works correctly

thanks

Staff

The default setting is "Internal Switch mode: switch".

Change "Internal Switch mode: switch" to "Internal Switch mode: interface" need delete policy/routes/dhcp used by Switch interface.

You may do "execute factoryreset" from console, it will recover to default mode.Thanks.

New Member

hi jeff

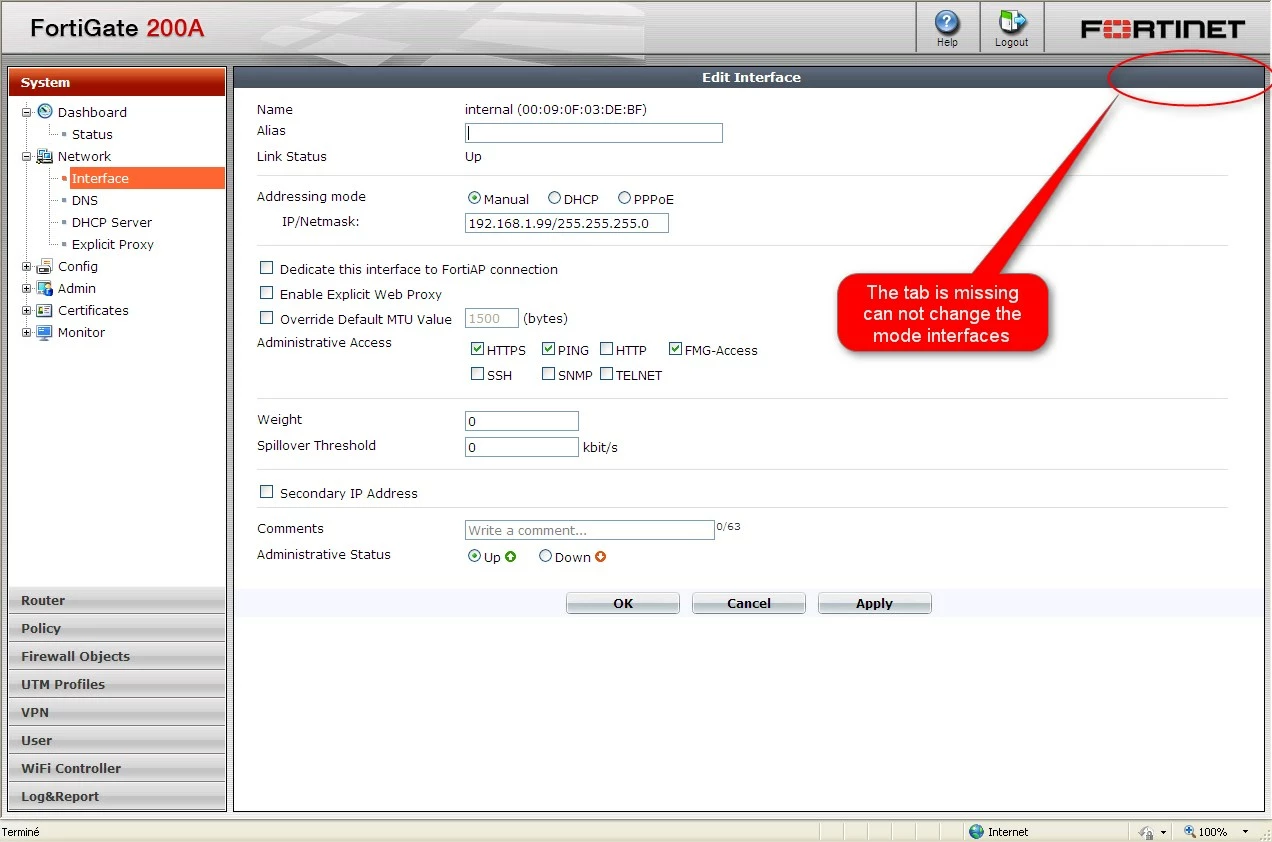

I'll show you with Capture Desktop you better understand my problem this is the bad one

and the good the tab is in its place

Staff

You may use CLI: dia sys checkused system.interface.name internal

If internal interface is used by policy/static route, you may need delete it firstly. Then the icon will show up.

New Member

hi

when I type :dia sys checkused system.interface.name internal

Forti-2 #

I return to the prompt and nothing is happening i did execute reboot but it is always the same no tab

I remove the rule in policy
