Question

Fortiexender integration on an Fortgate 51E with FortiOS 6.2.x

  • May 27, 2024
  • 5 replies
  • 1862 views

Hello all,



i tested here 2 things:

Fortigate 60E + Fortiexender 201E and Fortigate 51E + Fortiexender 201E

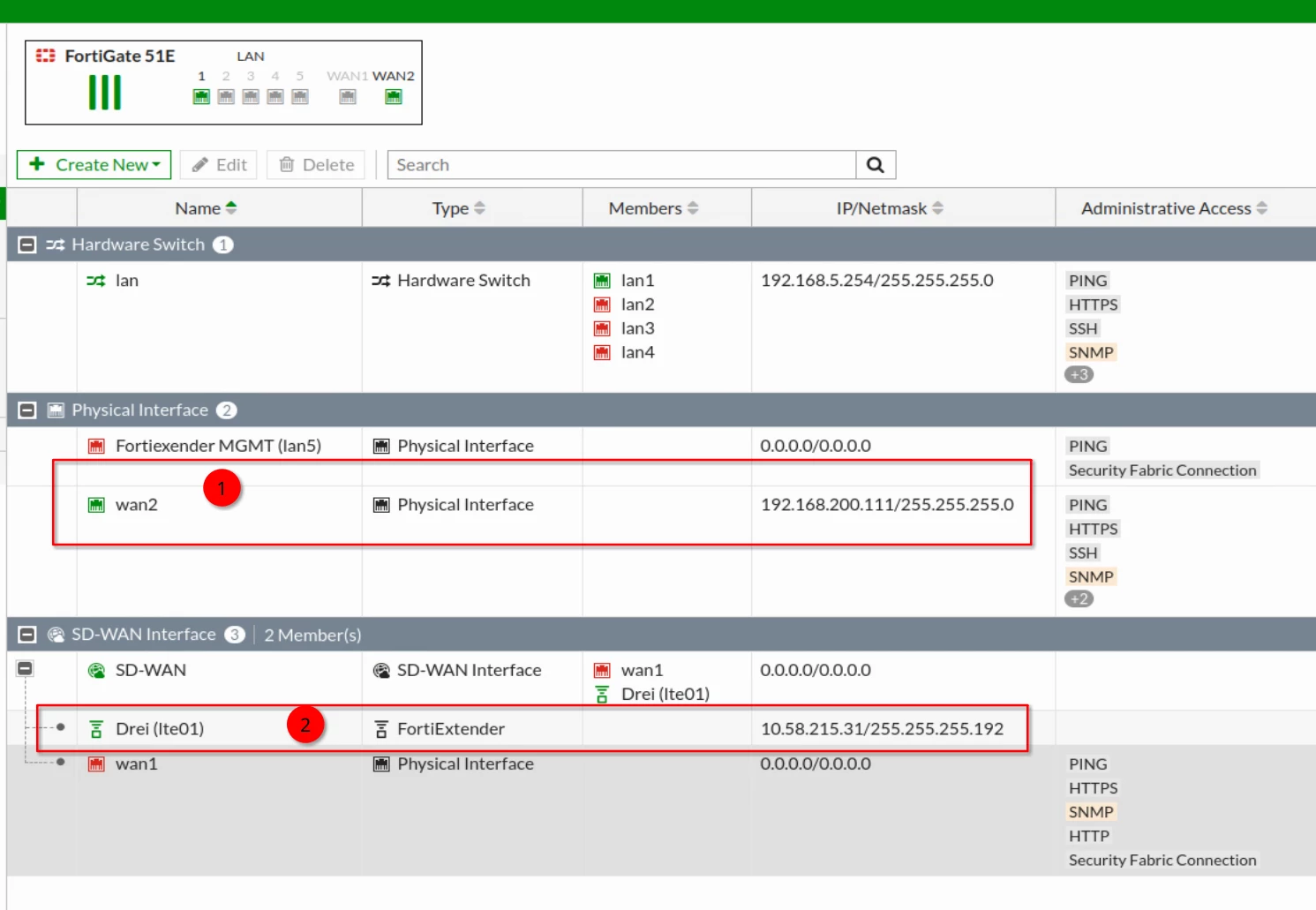

On both it is working fine. With and without  ip-passthrough (capwap). So the goal is in this situation "Fortigate 51E + Fortiexender 201E". But there is big difference between the fortiOS 6.2 and 7.4. On 6.2 i can't find an option for access directly to the fortigate for management over WAN. Please see the attached screenshot.




1 = Capwap to the fortiexender

2 = the generated lte interface



if i open 2 i can only see the serial from the extender. On the fortigate 60E with OS 7.4.x i can to the same like an normal wan interface. Does it work differently with the 51E? And yes i know with this public ip it will not work (happynet), but if I can't configure it? Or are the settings of WAN2 valid for the release of the Fortiagte Interace?



I would then also like to create IPSEC side2side with more Fortigates.



Very thanks

Kind regards

5 replies

Anthony_E
Staff
Anthony_E
Staff
May 30, 2024

Hello fireon,


Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.


Thanks,

Best Regards
    Anthony_E
    Staff
    Anthony_E
    Staff
    June 3, 2024

    Hello fireon,



    We are still looking for someone to help you.

    We will come back to you ASAP.


    Regards,

    Best Regards
    Anthony_E
    Staff
    Anthony_E
    Staff
    June 4, 2024

    Hello,



    This document can maybe help you:

    https://docs.fortinet.com/document/fortiextender/7.4.0/fos-fext-compatibility-matrix



    Id not, do not hesitate to tell us and we will continue to look at your question.



    Regards,

    Best Regards
      fireon
      fireonAuthor
      New Member
      June 4, 2024

      Thanks for the matrix. According to this, I am even in the (R) Recommended range. I can test it on site next week with the right SIM. I'll let you know what works and what doesn't.

        Anthony_E
        Staff
        Anthony_E
        Staff
        June 4, 2024

        Thank you fireon :)!

        Best Regards
        fireon
        fireonAuthor
        New Member
        June 13, 2024

        Hello all, I've tested this here with the right simcard. A side2side connection with the 2 Fortigates over the DDNS is working. But a directaccess to the fortigate with the fortiexender is not posible. If i do an nmap to the public IP i got this crazy output:





        PORT     STATE SERVICE 21/tcp   open  ftp 25/tcp   open  smtp 53/tcp   open  domain 80/tcp   open  http 110/tcp  open  pop3 143/tcp  open  imap 443/tcp  open  https 445/tcp  open  microsoft-ds 2000/tcp open  cisco-sccp 5060/tcp open  sip 8010/tcp open  xmpp



        What kind of device is responding? Neither the Fortigate nor the Fortiexender has anything enabled. Accesses are blocked by trusted hosts.

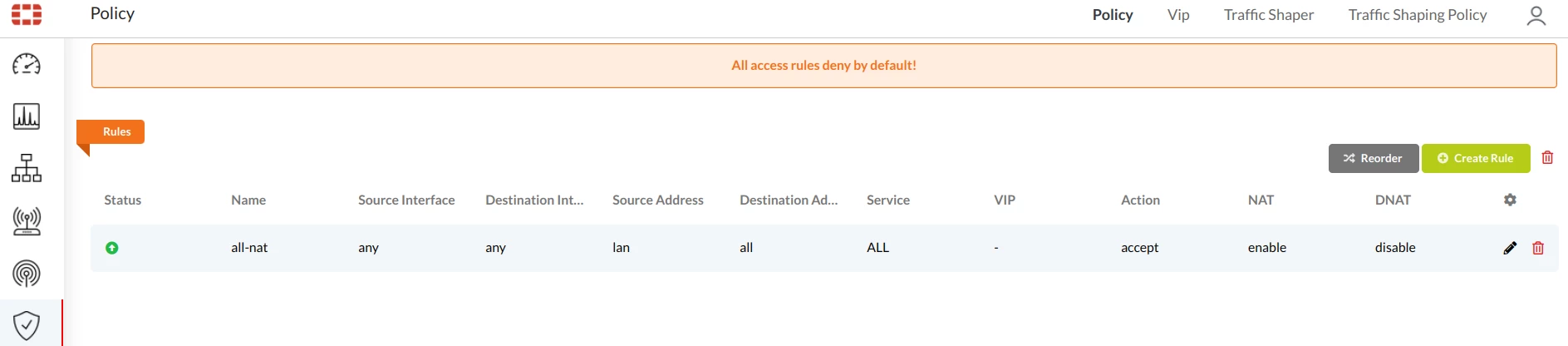

        Also the firewall policy at the fortiexender is only one from lan to the Internet.




        So really strange behavior.

          fireon
          fireonAuthor
          New Member
          June 13, 2024

          Ok, it looks like the provider is still interposing a network. hmm... there's probably nothing you can do...?      213.94.64.0/18
