fortiedge fortiextender profile VAP interface problem

  • February 6, 2026
  • 3 replies
  • 189 views

Hi everyone,

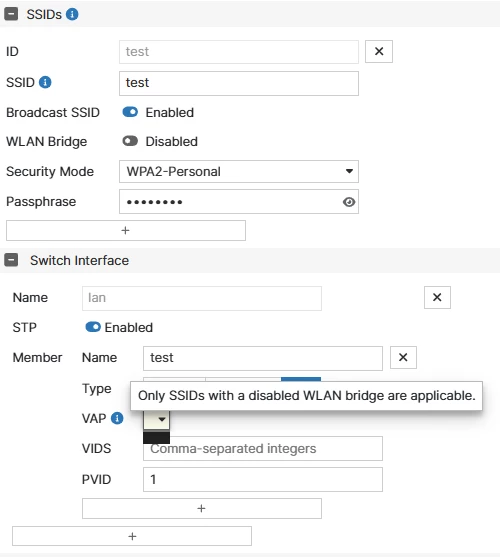

while creating a profile for a FEX device, i'm unable to add a new meber of type VAP in the Switch Interface. the VAP list is empty, even if the SSID i've created isn't in bridge mode. Accessing the web interface of the FEX it allows me to add a VAP port with the SSID, but i need a massive/remote deploy without accessing every single FEX.

Someone know ho to solve this?




Best answer by sianiguarda

Hi,

I resolved the issue myself. The FEX web interface behaves differently from the FortiCloud profile.

When creating a new SSID and radio interface and saving the profile, the system automatically generates a new WiFi interface for each added SSID. Instead in the web interface it is possible to add the VAP immediately after creating the SSID.

It is also necessary to configure each automatically created WiFi interface with a static IP address of 0.0.0.0/0 and disable DHCP. After that, the interface can be added as a VAP to any desired switch interface.

3 replies

Jean-Philippe_P
Staff & Editor
Staff & Editor
February 9, 2026

Hello sianiguarda,



Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.

Jean-Philippe - Fortinet Community Team
Jean-Philippe_P
Staff & Editor
Staff & Editor
February 10, 2026

Hello,



We are still looking for an answer to your question.



We will come back to you ASAP.

Jean-Philippe - Fortinet Community Team
sianiguarda
sianiguardaAuthorAnswer
New Member
February 11, 2026

Hi,

I resolved the issue myself. The FEX web interface behaves differently from the FortiCloud profile.

When creating a new SSID and radio interface and saving the profile, the system automatically generates a new WiFi interface for each added SSID. Instead in the web interface it is possible to add the VAP immediately after creating the SSID.

It is also necessary to configure each automatically created WiFi interface with a static IP address of 0.0.0.0/0 and disable DHCP. After that, the interface can be added as a VAP to any desired switch interface.
