FortiCloud EMS Authentication server LDAPS

  • December 19, 2024
  • 2 replies
  • 1630 views

Hello,

We are trying to switch our EMS authentication server from LDAP to LDAPS.  LDAP works fine.

We have ports 389 and 636 open on our FortiGate firewall.  After inputting our local CA certificate and clicking Test we get a Network error message at the top.

We are using the local CA certificate from our Windows server 2019 domain controller/Certificate authority by exporting it in DER format.  We have also tried that same domain controller server certificate, which is what EMS is syncing with today.

Any thoughts about what could be doing wrong?  Could it be the certificate export process or maybe something else?

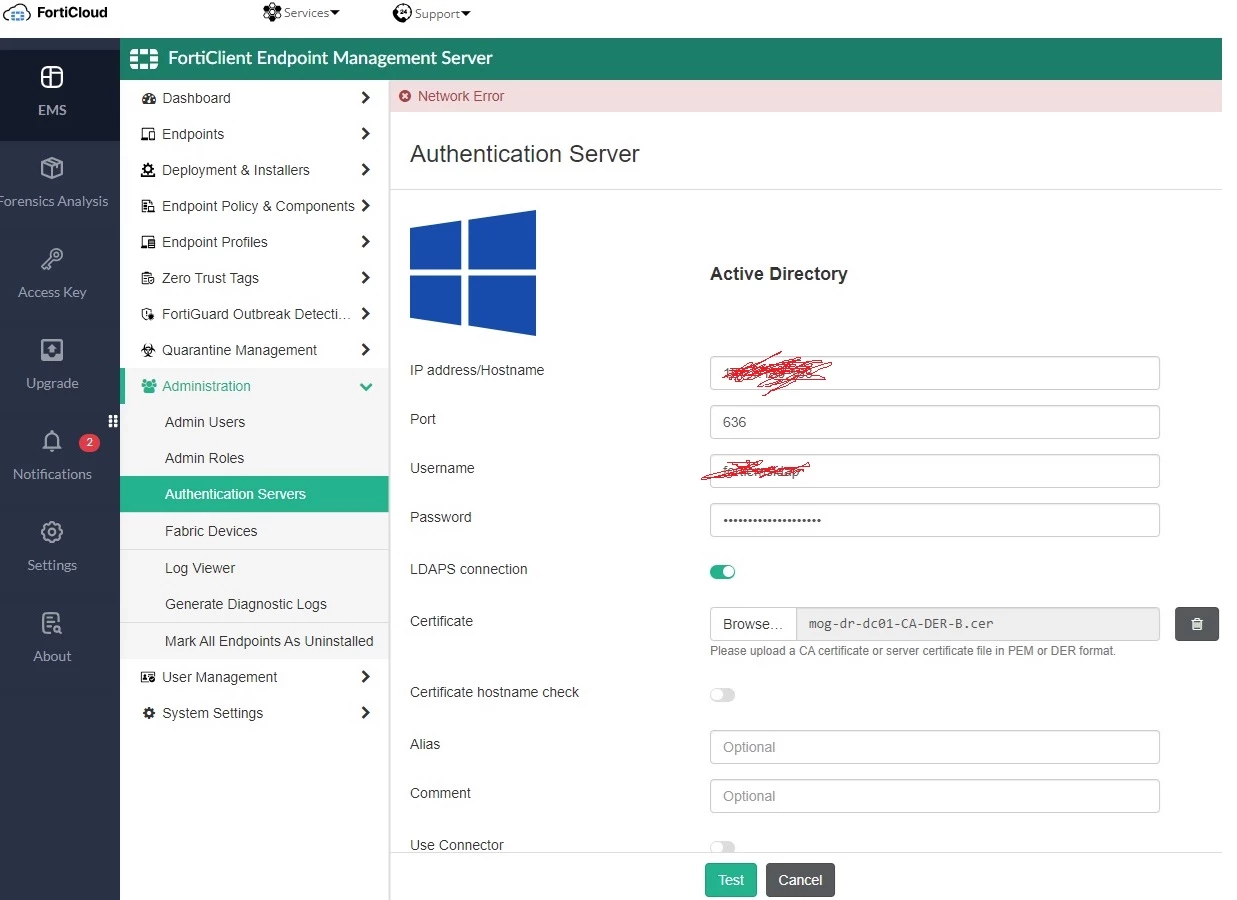

Screenshot below.


Best answer by romatlo

Thanks for replying.  It turned out to be a firewall rule issue.  This is resolved.

2 replies

Anthony_E
Staff
Anthony_E
Staff
December 23, 2024

Hello,


Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.


Thanks,

Best Regards
Anthony_E
Staff
Anthony_E
Staff
December 27, 2024

Hello,



Did you already have a look at this document?:

https://docs.fortinet.com/document/forticlient/7.4.1/ems-administration-guide/417920/configuring-user-verification-with-an-ldap-server-for-authentication



Regards,

Best Regards
romatlo
romatloAuthorAnswer
New Member
January 2, 2025

Thanks for replying.  It turned out to be a firewall rule issue.  This is resolved.
