FortiClient ZTNA

  • February 20, 2025
  • 2 replies
  • 1445 views

We recently deployed ZTNA via FortiClient/FortiClient EMS and we can now access internal resources without connecting to SSL or IPSEC VPN which is really slick. However, we are interested in being able to access resources behind a site-to-site VPN tunnel that exists on the Fortigate. From what I can tell, this doesn't seem to be possible or has anyone found a way to get this to work?

2 replies

AEK
SuperUser
AEK
SuperUser
February 21, 2025

Yes it is possible, I remember we could achieve it one day.

But can you remind me what is the problem exactly?

AEK
    AEK
    SuperUser
    AEK
    SuperUser
    February 21, 2025

    As far as I remember we discovered that the ZTNA traffic was forwarded by FGT using the mgmt interface's IP address, even if our mgmt interface was link down (unused).

    There was no way to NAT the traffic from the proxy rule (type:ZTNA).

    Tried to assign an IP address to the IPsec tunnel but FGT still always use mgmt IP.

    Tried to change mgmt IP to 0.0.0.0 and forced it down then FGT  used WAN IP! Can't understand how it is designed.

    The only workaround we found is to set IP address of mgmt interface to a valid IP address, then on the other tunnel side we just added a route back towards that IP through the tunnel. And that's it, it worked just fine.

    Hope it helps.

    AEK
      BJ_Prakash_Ghising
      BJ_Prakash_Ghising
      New Member
      February 21, 2025

      Hi @AEK

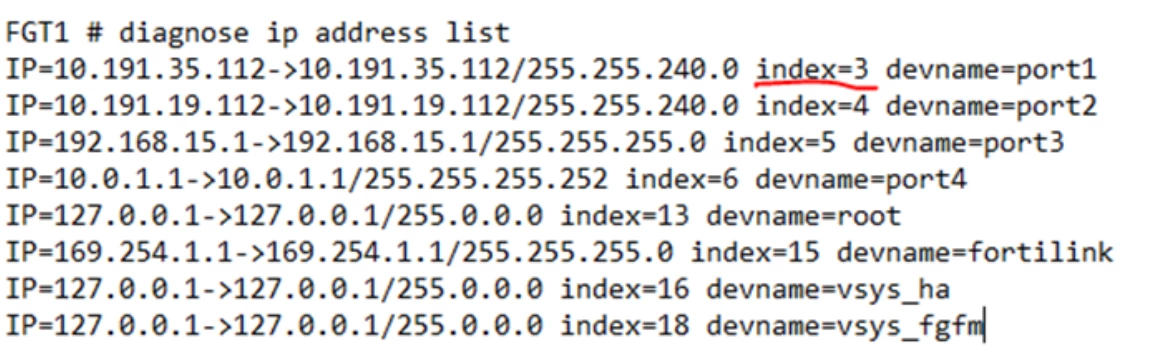

      That's the expected behavior. If a tunnel does not have an IP address assigned, it takes the IP address of the interface with the lowest index number.






      AEK
      SuperUser
      AEK
      SuperUser
      February 21, 2025

      Hi Prakash

      But as far as I remember I already tried to set an IP for the tunnel and it didn't work.

      AEK
