FortiClient VPN Android Phone

Forum|Forum|4 months ago
May 12, 2026
28 replies
2057 views

I am having an issue with the FortiClient IPsec IKEv2 VPN connection on Android. I entered all the required information correctly and tried many configuration changes, but the issue still persists. When I attempt to connect, I receive a “Null” error message.

At the same time, I tested the same VPN configuration on my iPhone, and the connection works perfectly without any issues.

Best answer by Dzhem35

I resolved the issue: it was caused by using both EAP and PSK authentication methods together. While this configuration works properly on IOS devices, Android devices do not support it correctly. After removing EAP and using only PSK authentication, the connection issue was successfully resolved.

funkylicious

SuperUser

maybe

"jack of all trades, master of none"

D

Dzhem35Author

Explorer II

Yeah, I tried to analyze the log, but when I tried to connect from my phone, the tunnel wasn't go further, so I'm not getting any logs about the mobile VPN.

Toshi_Esumi

SuperUser

If it doesn’t hit the FGT, the problem is on the android phone environment. Only thing I would try is to uninstall the app and reinstall it again. I’m guessing you already tried it though.

Toshi

Anthony_E

Staff

Hello,

This docs too could help:

https://docs.fortinet.com/document/forticlient/7.4.0/android-administration-guide/894228/creating-an-ssl-vpn-connection

Anthony

Best Regards

D

Dzhem35Author

Explorer II

Thanks for the reply but this documentation about SSL VPN ı am using IpSec VPN Tunnel

D

Dzhem35AuthorAnswer

Explorer II

I resolved the issue: it was caused by using both EAP and PSK authentication methods together. While this configuration works properly on IOS devices, Android devices do not support it correctly. After removing EAP and using only PSK authentication, the connection issue was successfully resolved.

Toshi_Esumi

SuperUser

I thought both types of phones required EAP for any IPsec VPNs.
Maybe only IKEv2.

Toshi

D

Dzhem35Author

Explorer II

Yeah ı thought so, after read some docs and another android client vpn issue ı solved it. I think both devices should use that

T

Trung Pham

Visitor II

My phone is assigned a company IP address, but I still can't access the internal network. I'm using IPsec IKEv2 with SAML and SSO. It works fine on both my PC and iPhone. Could this be the same issue you mentioned?

D

Dzhem35Author

Explorer II

Ası can see you already connected to VPN but if you can not reach internal network you need to add new Policy from Mobile IpSec VPN to Internal Network

T

Trung Pham

Visitor II

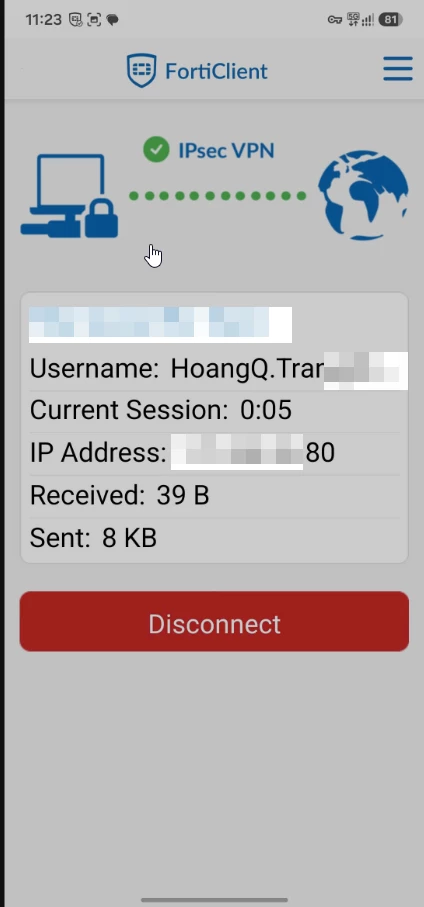

Can you guide me configure it, on both the PC and iPhone, the VPN connects successfully and is assigned the same IP range, and they can access the internal network. However, on Android, although it also connects and receives an IP address, it cannot access the internal network

H

hafthanhf

New Member

@Dzhem35 : I have the same isue with IPSEC VPN and android phone, could you share your VPN configuration?
I received this when trying connect to VPN from my android phone:
VPN negotialtion failed runinitiator: run SA init: send SA ini request: timeout waiting for response
