Question

FortiClient VPN 7.0.0.0029 not working with SAML SSO in Linux

  • July 29, 2021
  • 5 replies
  • 17458 views

Hello,

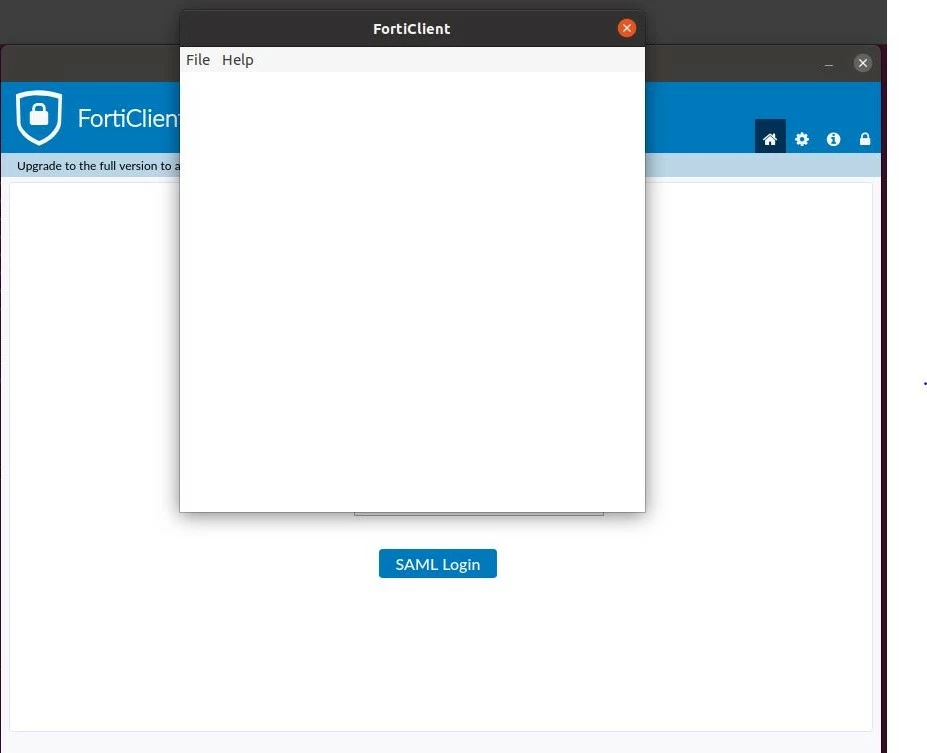

I am deploying SAML SSO with Azure to our VPN. I having a challenge in Linux machines with FortiClient VPN 7.0.0.0029. When i enable SSO, i get a blank window/pop where i expect to authenticate with SSO (As attached).

The windows client is working well. Question: Does Linux version of FortiClient VPN 7.0.0.0029 support SAML SSO? Are there any extra packages required to be installed in the Linux machines? FYI, I am running this on Ubuntu 20.04.2 LTS



    5 replies

    tauntingzombies
    tauntingzombies
    New Member
    September 19, 2021

    Same thing here. I'm using 7.0.0.0018 on Linux Mint 20.2 Cinnamon. We formerly used Duo, but just switched to Azure AD. My iOS and Windows devices connect, but my Linux machine hangs similar to yours, though it mentions Duo in the header text.



    [image][/image]

    glzamp_lm
    glzamp_lm
    New Member
    October 12, 2021

    Hello, i'm facing the same problem both with Forticlient 7.0.1 and 6.4.4.

    Someone manage to solve that somehow?

    M_T
    M_T
    New Member
    February 24, 2022

    9 months later, Forticlient 7.0.0.0018 still seems to be the same software with the same problem, still offered for Ubuntu 20.04 at https://www.fortinet.com/support/product-downloads#vpn



    I tried 6.4.4 and had the same problem.



    Maybe this is the same problem that was reported on this board for 6.0 to 6.4 on Windows and Linux.



    Have sites just moved away from Fortinet because of this, or is there some hidden solution?



    (In my  case, I'm running Ubuntu 20.04 as a VM under VirtualBox 6.1 under OSX 10.15.7, if any of that matters.  I'm a subcontractor to a company that requires the forticlient vpn.)

    fonderco
    fonderco
    New Member
    May 5, 2022

    Were you ever able to get it to work. I'm in the same boat and need a solution to Forticlient VPN on Linux with SAML.

    M_T
    M_T
    New Member
    May 6, 2022

    I didn't resolve this to my satisfaction.  As I said, I was running an Ubuntu 20.04 VM and consistently got the blank window.  I found that when I created a new Ubuntu 20.04 VM with no additional software loaded, I did get the expected prompt for credentials.  So, the Forticlient software is incompatible with one of many packages I had loaded in my  VM, or with something in the state of the VM.



    I didn't have the time to narrow it down.  I instead ran the VPN at the host computer level instead of the VPN.  That work is now over, so I am no longer using the Forticlient VPN.



    One other thing I'll add in parting:  Running the VPN in the host computer, would sometimes cause what seemed to be a DNS failure in the VM. That is, in the VM, when I tried to resolve some domain such as sample.com, it would fail.  When I dug into it, I  found the "resolvectl status" command (in the Linux VM) showed (in part)

    Link 2 (enp0s3)
          Current Scopes: DNS
    DefaultRoute setting: yes
           LLMNR setting: yes
    MulticastDNS setting: no
      DNSOverTLS setting: no
          DNSSEC setting: no
        DNSSEC supported: no
      Current DNS Server: 192.168.1.1
             DNS Servers: <Intended VPN DNS Server>
                          192.168.1.1
              DNS Domain: ~.
                          sample.com

    192.168.1.1 is  the DNS server for my computer when not on the VPN.

    With the Forticlient VPN running on the host computer, I no longer could get packets to 192.168.1.1, so DNS failed.



    To clear it out of this state, I used the command

    sudo resolvectl dns 2 <intended VPN DNS server>

    (where "2" is from "Link 2" above).



    fonderco
    fonderco
    New Member
    May 6, 2022

    Did you ever get it to work?

    tojur
    tojur
    New Member
    August 29, 2022

    On Fedora 35 with the latest client 7.0.0.0018 I get just this message:




    One more strange thing not related to SAML: if my laptop is connected to ethernet, when I click on "SAML Login" or Connect for any VPN site/configuration, the ethernet link disconnects and Forticlient reports being unable to get a response and gives up. The link then immediately returns back. So all my attempts are on Wi-Fi. From Windows everything works (version 7.0.2.0090).

    tthrilok
    Staff
    tthrilok
    Staff
    August 29, 2022

    Hi Techdsmart,



    Thank you for the query!



    I understand your SAML SSO is not working in Linux, may we request the below debugs:



    di de reset

    di de app samld -1

    di de en



    Please share the above debugs for both working and non working scenario.



    Thank you!



    tthrilok
    Staff
    tthrilok
    Staff
    August 29, 2022

    Please stop the debug using:

    di de di
    di de reset



    Once you see the error.

    tojur
    tojur
    New Member
    August 29, 2022

    Well, thanks for help. Meanwhile I found that the issue is in REALM. When a realm is configured, the above problem appears. With default realm (= just /) the connection works.
