FortiClient cannot connect to SSL VPN on FGT: iprope_in_check() check failed on policy 0, drop

Question

I have configured SSL VPN on one of my FGTs using GUI, the same way as it was configured on another one (the idea is to move some business critical services from one office to another). Then I have discovered that FortiClient can't connect because of a connection timeout. Further debugging with packet sniffer has revealed that only SYN packets are coming from client, nothing goes back. The next step was the flow debugger:

MyFGT # 2025-01-09 16:58:51 id=20085 trace_id=195 func=print_pkt_detail line=4489 msg="vd-root received a packet(proto=6, my.client.ip.address:51567->my.fgt.ip.addresss:10443) from wan1. flag [S], seq 1184327228, ack 0, win 65535"

2025-01-09 16:58:51 id=20085 trace_id=195 func=init_ip_session_common line=4645 msg="allocate a new session-000fdb96"

2025-01-09 16:58:51 id=20085 trace_id=195 func=fw_local_in_handler line=398 msg="iprope_in_check() check failed on policy 0, drop"

I have read a dozen of pages on the internet, in Fortinet knowledge base and in this forum, also tried to use ChatGPT as a consultant to find a solution, but so far I am where I was -- the connection is beign dropped by the policy 0. Also, I have gathered the following relevant information pieces:

- SSL VPN is set to use custom port and the client tries to connect on the same port.
- SSL VPN uses interface "wan1" and this interface is set to the correct external IP address.

- SSL VPN configuration ist set to use port 10443 and the source-interface "wan1"

- The only local-in-policy present is the one I have created to explicitly allow connection to SSL VPN (obviously this didn't work)

- "diag sys tcpsock | grep 10443" shows empty result -- but I'm not sure that it should display anything if there is yet no connection.

- I don't find any traffic policy that would drop anything SSL/HTTPS-Like, for 10443 or anything with destination interface of wan1.

My understanding is that the policy 0 is the default "drop everything if not matched on any other policies" policy and that configuring SSL VPN would create kind of implicit policy to allow this local-in-connection. And that somehow this either is not working this way at all or something stands in between.

I'm dealing with this for several days already. Please, help.

Other relevant information pieces:
FortiClient: ver. 7.0.8.0308
Fortigate (yes, pretty old): FortiWiFi 60CX-ADSL-A with FortiOS v5.2.15

maulishshah · Accepted Answer

Can you please click on source, and along with the SSLVPN Tunnel Addr please add your VPN group.

For CLI:

config firewall policy      edit 1         set name "sslvpn tunnel mode access"         set srcintf "ssl.root"         set dstintf "lan"         set srcaddr "SSLVPN_TUNNEL_ADDR_1"         set dstaddr "all"         set groups "sslvpngroup" <-------- Your VPN Group         set action accept         set schedule "always"         set service "ALL"     next

Verify and update the thread if the error is still there.

kaman · Answer

Hi rreimche,

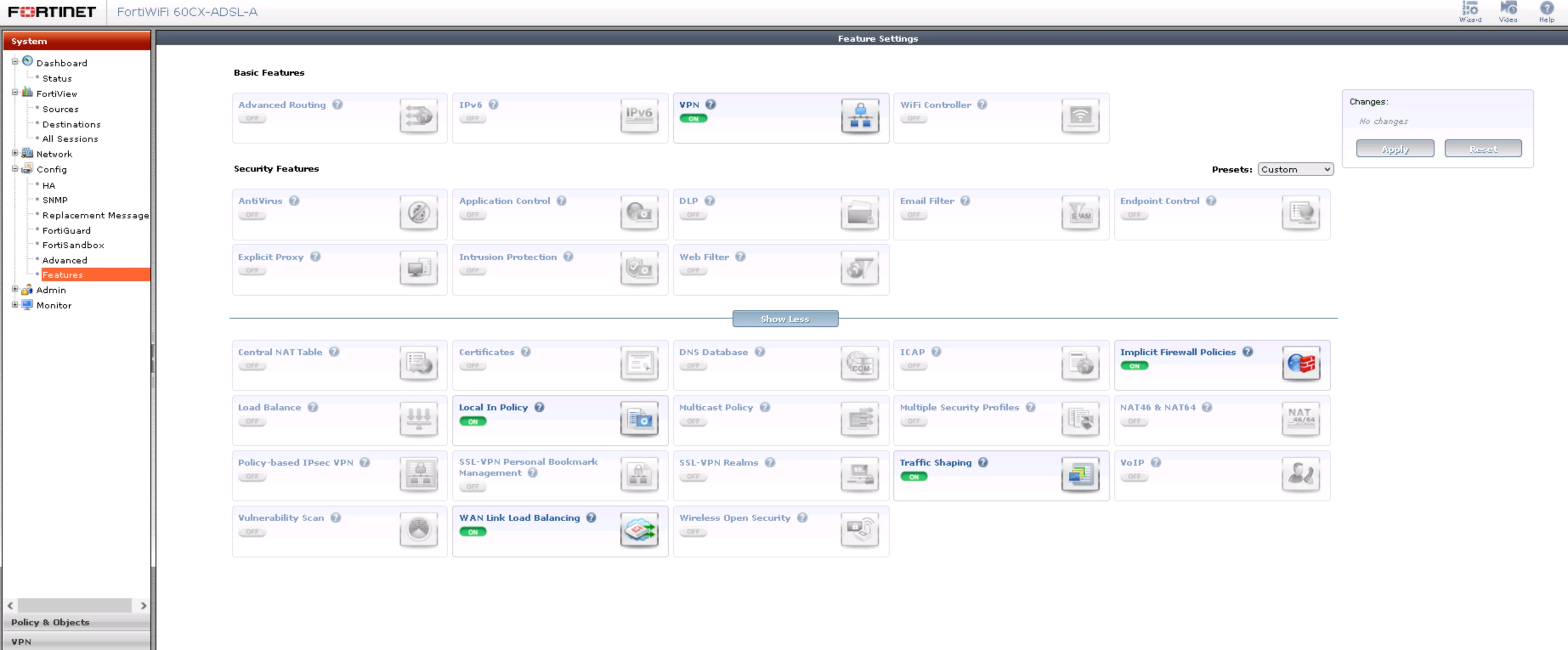

Could you please confirm whether the FortiGate NGFW mode is set to Policy-based or Profile-based? You can find this information under System > Settings > View Settings.

In policy-based NGFW mode, it is necessary to have an SSL inspection policy under Policy & Objects -> SSL Inspection & Authentication for the SSL VPN traffic.

Without this policy, the sslvpnd will not start.

Please refer to the below document for more information:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-SSL-VPN-is-not-working-when-FortiGate-is-on-NGFW/ta-p/287659

If it is profile-based, you can refer to the following document for the reasons behind the 'iprope_in_check() failed' error in SSL VPN.

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Reasons-for-the-iprope-in-check-failed-error-in/ta-p/197908

If you have found a solution, please like and accept it to make it easily accessible to others.

Regards,
Aman
