Fortiauthenticator ldap auth both dnshostname and samaccountname

  • April 16, 2022
  • 5 replies
  • 5396 views

Hi,

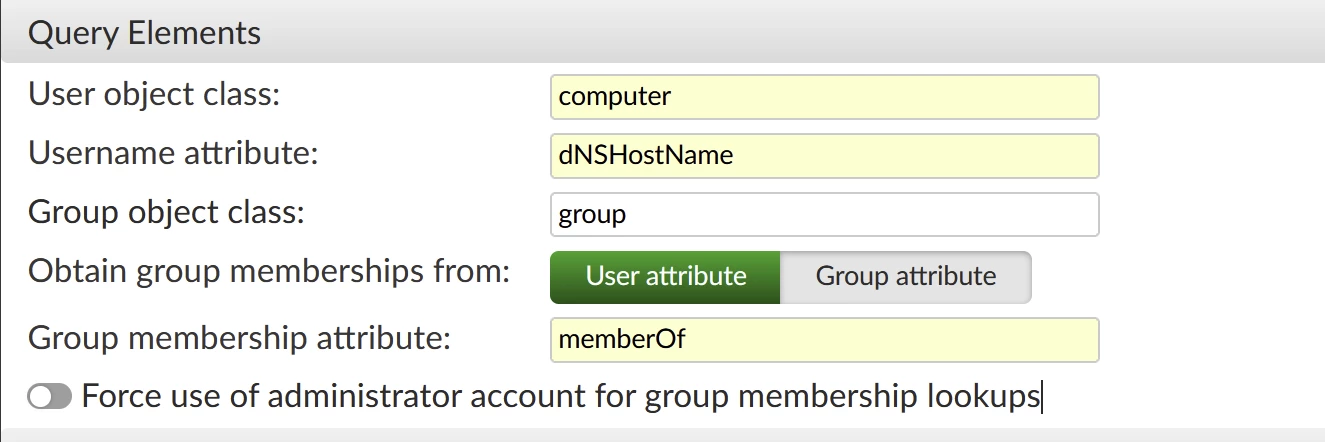

Is it possible to use both SamAccountName and DnsHostname authenticated against same LDAP server. I cannot get it worked. If I changed the username attribute to dnshostname as below it authenticates with dnshostname but not with samaccountname, how can I get both working so I can authenticate using both computer name and username ?






Thanks



Thilina



Best answer by Markus_M

Hi Thilina,



you need to create 2 LDAP server entries. Not two entries within one LDAP server.

You can define the "realm" that your users are in, if need be.

You will likely already have two RADIUS policies that refer to your user bases.

- wired users, so a switch as a RADIUS client.

- wireless users - a WLC as a RADIUS client.



Best regards,



Markus

5 replies

Markus_M
Staff & Editor
Markus_M
Staff & Editor
April 16, 2022

Hi,



No. You cannot do this in one LDAP entry. The entry will ask for the supplied username to be found in the Username Attribute. This is intended as you do not mix computer and username attributes and then put them into a group.

A computer can be used by multiple users.

A user can use multiple computers.



To accommodate appropriate settings for the objects, you will need to create two LDAP server entries.



Best regards,



Markus

thilinapm
thilinapmAuthor
New Member
April 16, 2022

Thanks Markus ,

But what if I need to do peap for wired users using computer name authentication and Wireless authentication using User authentication on BYOD devices ? , I cannot get it work because of this limitation.

And I cant create 02 ldap server entries to the same server, it doesnt allow that.



Thanks



Thilina

Markus_M
Staff & Editor
Markus_MAnswer
Staff & Editor
April 16, 2022

Hi Thilina,



you need to create 2 LDAP server entries. Not two entries within one LDAP server.

You can define the "realm" that your users are in, if need be.

You will likely already have two RADIUS policies that refer to your user bases.

- wired users, so a switch as a RADIUS client.

- wireless users - a WLC as a RADIUS client.



Best regards,



Markus

    thilinapm
    thilinapmAuthor
    New Member
    April 16, 2022

    Thanks Markus,



    I believe you meant another LDAP entry to another DC in same domain, right?



    Regards



    Thilina

    Markus_M
    Staff & Editor
    Markus_M
    Staff & Editor
    April 16, 2022

    Hello Thilina,



    Another LDAP entry, but it can be the same domain (try it out!).

    The mapping is the important part. One LDAP entry can be used for one LDAP attribute, as samaccountname, the other LDAP entry can map another LDAP attribute as dnshostname.



    Best regards,



    Markus

      jbackstrom
      jbackstrom
      New Member
      March 25, 2024

      We have run this setup for a while where we have 3 LDAP server entries for samaccountname, UPN and dnshostname pointing to the same AD with different DNS names and IP adresses. However we have had issues where basically only one have been active at once causing issues. Our solution was changing "FortiAuthenticator NetBIOS name" to unique names for every entry along with separate service accounts for each entry. Adding this here to maybe spare some time for someone else.



      Regards,

      Joakim

        kanes39
        kanes39
        New Member
        April 11, 2025

        Hi @jbackstrom @Markus_M ,

        Do you know if this feature is now supported on version 6.6.2 or any other version that may support it?

        Appreciate if someone can assist.

        Markus_M
        Staff & Editor
        Markus_M
        Staff & Editor
        May 10, 2025

        Hi Kanes39,

        there is no change, the FortiAuthenticator supported it all along, but makes it in my weird opinion more logic. FortiAuthenticator won't know there is a host authenticating or a user. While that is probably possible to automate with code change, it is already working as earlier described.
