FortiAuthenticator HA issue

  • November 28, 2024
  • 1 reply
  • 4321 views

Hello,

i have an issue on FortiAuthenticator HA on virtual machine,

when trying to create HA Active-Passive between two virtual machine the HA status on the two nodes become primary with one has high priority and the second has low priority but no sync happen between the both devices

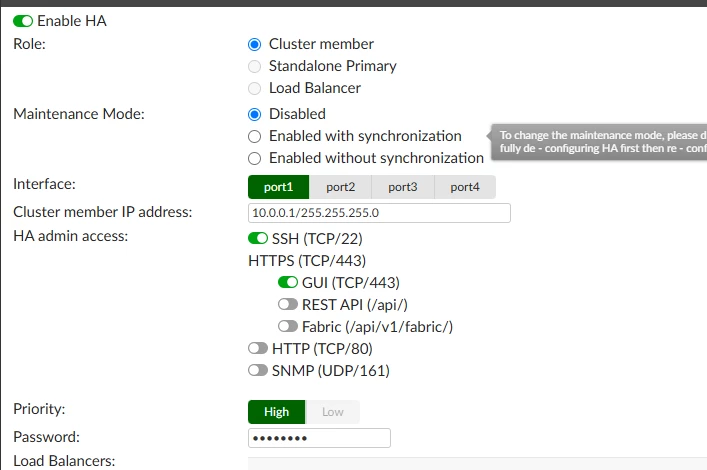

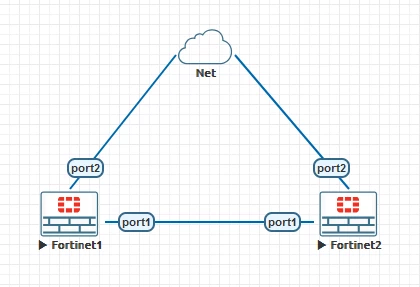

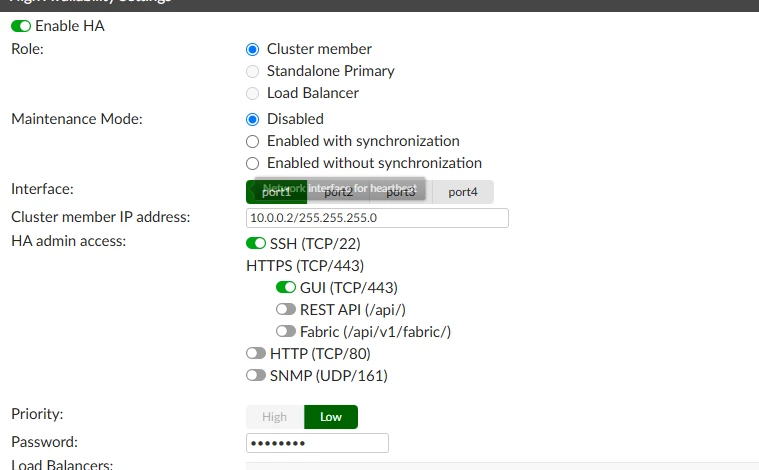

i have attached a copy of the config of the ha setting on both devices Screenshot 2024-11-28 105359.png

Screenshot 2024-11-28 105136.pngScreenshot 2024-11-28 105221.pngScreenshot 2024-11-28 105302.png

1 reply

sjoshi
Staff
sjoshi
Staff
November 28, 2024

Hi,



Try to collect below logs and see if you get any error

https://<fac>/debug/slony



Your HA itself is not forming.



Also you can take pcap on the FAC on udp port 720 and for config snyc on tcp port 5432

Thanks, Salon
    Elkomy
    ElkomyAuthor
    Explorer
    November 28, 2024

    hello,

    i hope you do well

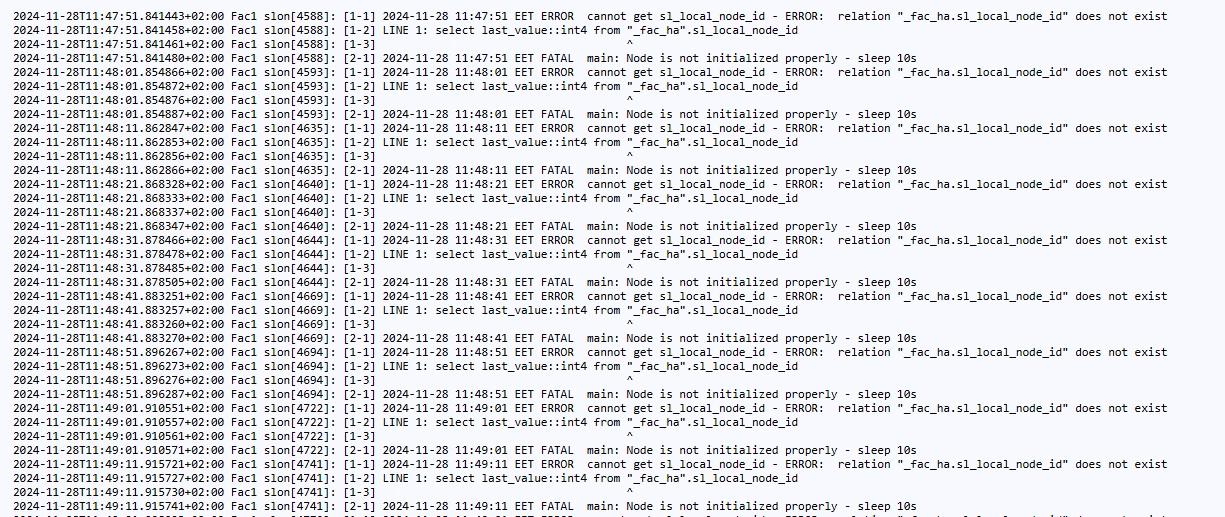

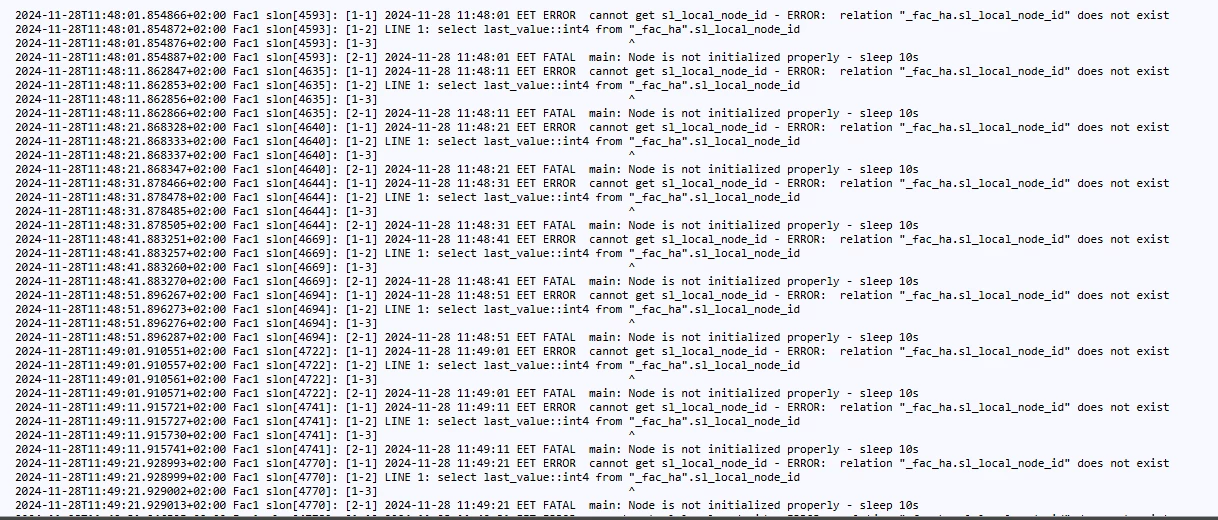

    kindly note that i have error on ha log and i will attach the log file and when i try to capture traffic over port 720 and view it on wireshark it  found that the source and destination is from APIPA and the error Screenshot 2024-11-28 115221.pngScreenshot 2024-11-28 115235.png

    sjoshi
    Staff
    sjoshi
    Staff
    November 28, 2024

    can you also check if you are able to ping the FAC Node IP from each other

    Thanks, Salon
