FortiAPs - Suggestions for a good start implementig WiFi

  • October 24, 2024
  • 1 reply
  • 4851 views

Dear Fortinet Community.



We want to start with a WiFi project and we are faced with decisions to made. We want to choose good FortiAPs and after checking together with our Fortinet suppliers they stated that a FortiAP 231g could be a good solution. Have you some experience with FortiAPs? Which ones are good which ones are not so fine? An does anyone know if a FortiAP 233g is much better than a 231g? This is a very general question :) So feel free to give me some input about your experience :) Every comment is very much appreciated.



Ah and before I forget it. We use a Fortigate 100F (7.4.5) at the moment and think about a Fortigate 400/401F for the future. So we already know the limit for FortiAPs when it comes to the point that they should be managed centrally by the firewall. Fortigate 100F can manage up to 128 FortiAPs. Fortigate 400F can manage up to 512 FortiAPs.



With kindest regards

FortiLover

1 reply

AEK
SuperUser
AEK
SuperUser
October 24, 2024

Hi FortiLover

As long as you maintain your FAP and FGT at the recommended/mature firmware version, you will have a good WiFi with no issue.

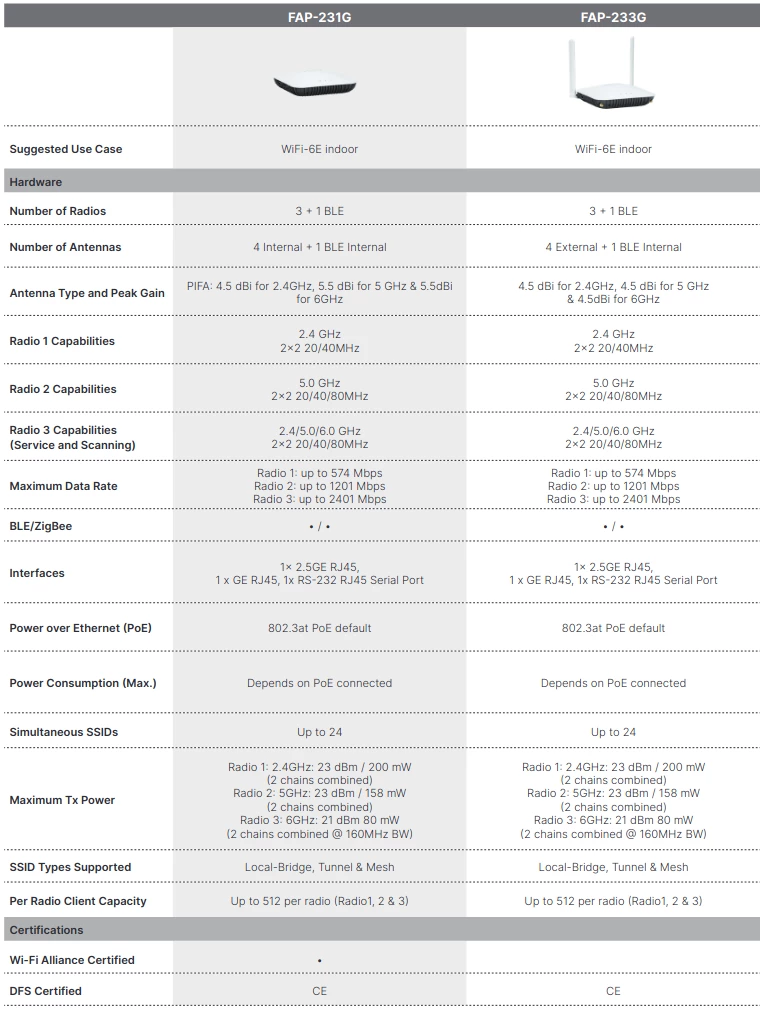

Here is a good starting point to compare FortiAP products.

https://www.fortinet.com/content/dam/fortinet/assets/data-sheets/Fortinet_Wireless_Product_Matrix.pdf

(I see 231G and 233G are almost the same)


AEK
    Fortilover
    FortiloverAuthor
    Explorer III
    October 24, 2024

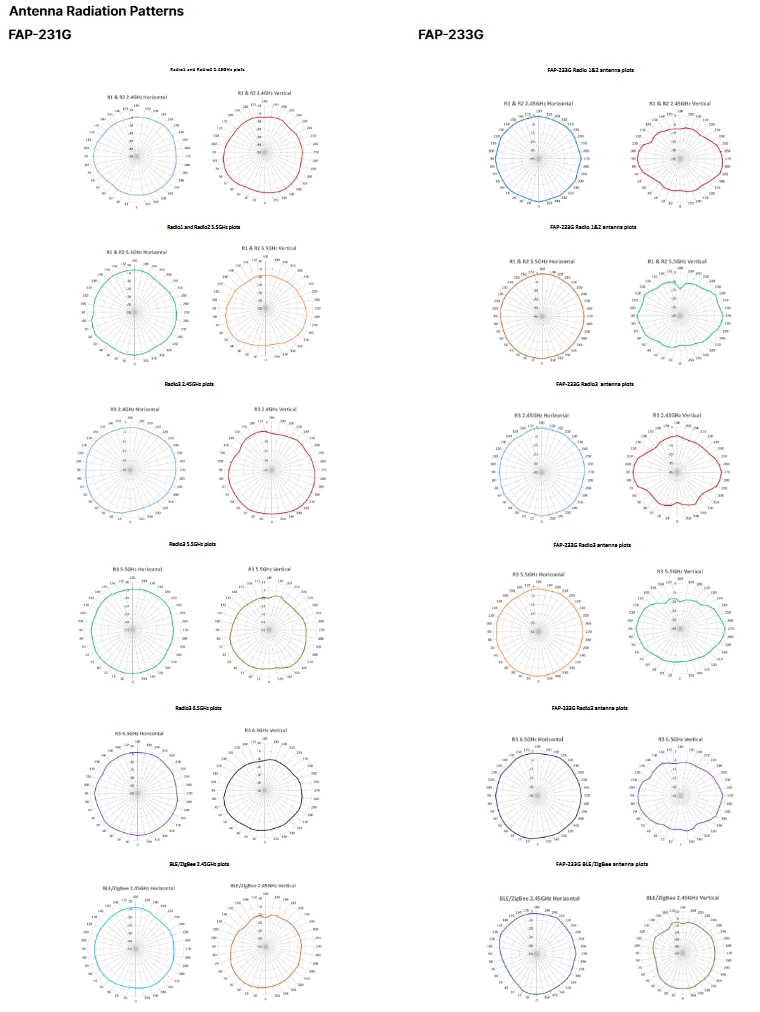

    This is what I have seen as well. I have checked the documentation (like in your picture) and have seen not so many differences. I see bigger differences when checking the Antenna Radiation Patterns... So I thought I just would like to get some experience from persons that have bought the 231g and then switched over to 233g or perhaps 4xx models... and then their reasons why they switched to another model. :) If it is interesting here are the Antenna Radiation Patterns comparisions for the 231g and 233g models:


    pdw8
    Staff
    pdw8
    Staff
    October 24, 2024

    The AP model should be dependant upon your requirements. There are many questions to answer before deciding on the AP model.

    • Type of deployment, office, retail, warehouse, manufacturing etc
    • Wireless requirements, high density, voice/video, IoT, education
    • Number of client devices
    • Indoor and outdoor

    These are just a few you need to answer to then determine which AP models you need. You may need different models for certain areas, external antennas, weatherproof AP etc



    You should always do a wireless design using professional software and if you do not have access to this, use a partner or company that can do it on your behalf.
