FortiAps not connecting to Controller after Fortigate Upgrade.

  • September 25, 2019
  • 1 reply
  • 4738 views

I upgraded my FortiGate 600D from v5.6.8 to v5.6.11 yesterday. Before I Started this step, I looked to the Release notes and noticed that my FortiAps are already in the latest firmware (v5.6.0) version supported by the v5.6.11. However, after the upgrades was completed, all my FortiAps are not connecting to the Wifi-Controller interface anymore. I Have already checked all the configs and it seens right.



I have no idea what to do now... Someone can help me?

    1 reply

    Toshi_Esumi
    SuperUser
    Toshi_Esumi
    SuperUser
    September 25, 2019
    Start from physical first. Do they still have power? What are those LEDs showing? Did they pull IPs via DHCP? Are they pingable, and so on...
    Dave_Hall
    Dave_Hall
    New Member
    September 25, 2019

    Do the APs show up in the Managed FortiAPs section but greyed out?  Are they assigned static IP addresses and/or getting IP address via DHCP?

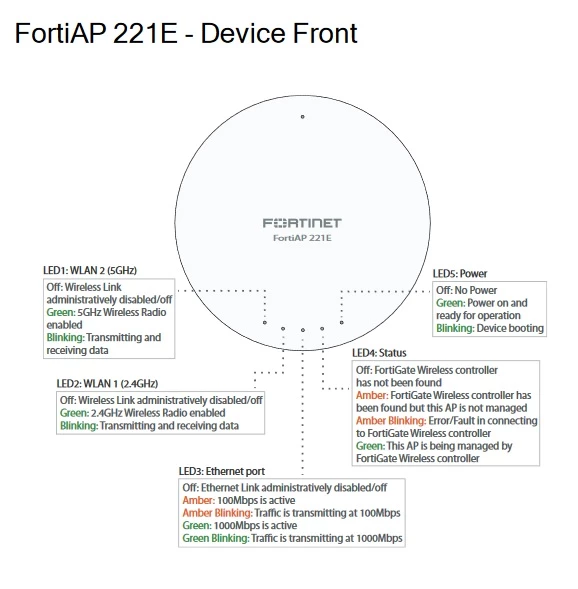

    Check the LEDs (see pic below as an example).  The Power, Status and Ethernet LEDs should be on.  If the APs have valid IPs but can not see/detect the fgt (wifi controller) than you may need setup one of the three options (in the AP) for detecting the wifi controller.



    Aside from the above, the firmware upgrade process may "patch" or assign a temp FortiAP profile to the the APs - check/confirm they look ok, including actual opening the AP profiles to see that the SSIDs are assigned/configured.  You may see profiles tagged with "tmp" prefixes.







    Toshi_Esumi
    SuperUser
    Toshi_Esumi
    SuperUser
    September 25, 2019

    Just a note: The LED indications David posted might not exactly match your 221E's depeding on Gen1 or Gen2 version you got. Gen2 doesn't have Amber LEDs, but all Green LEDs. And they replaced "Status" with "Bluetooth Status" LED. But the rest like patterns should be the same.
