FortiAP431F OIDS

  • May 27, 2024
  • 11 replies
  • 8351 views

I'm setting up PRTG to monitor my network, I'm looking for the OIDs for the FortiAP431F to monitor CPU load and memory util. I saw another post on which a user gave a base OID(1.3.6.1.4.1.12356.101.14.4.4.1.20 for CPU load or 1.3.6.1.4.1.12356.101.14.4.4.1.21 for memory util)  to which I should add on 1.16.(Serial Number in ASCII decimal values). This doesn't work, I was wondering if anyone else has had similar issues and figured out either how to make those work or the correct OIDs? My AP is using os version 7.2.5

11 replies

Anthony_E
Staff
Anthony_E
Staff
May 30, 2024

Hello Nolan,


Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.


Thanks,

Best Regards
    nolanm
    nolanmAuthor
    Explorer
    May 31, 2024

    Thank you, I will await your response.

      Anthony_E
      Staff
      Anthony_E
      Staff
      June 3, 2024

      Hi Nolan,



      Thanks a lot for your patience and we will find an expert to reply to your question:)!



      Regards,

      Best Regards
        nolanm
        nolanmAuthor
        Explorer
        June 3, 2024

        Perfect, Thank you.

        Anthony_E
        Staff
        Anthony_E
        Staff
        June 4, 2024

        @AEK Do you have maye an idea?

        Best Regards
          Anthony_E
          Staff
          Anthony_E
          Staff
          June 4, 2024

          Hi,



          Here the answer from one of our FortiAP expert:

          "This link explains how to get the MIB files which contain the OID files for v7.2.5



          https://docs.fortinet.com/document/fortigate/7.2.5/administration-guide/608160/mib-files



          Download both MIB files and the core one says it includes common files for multiple products. I assume that includes AP."



          Regards,



          Best Regards
          nolanm
          nolanmAuthor
          Explorer
          June 4, 2024

          I have done that already, the MIB does not contain the OID's for the cpu utilization, the memory, the temperature, or the fans of the FortiAP431F

          AEK
          SuperUser
          AEK
          SuperUser
          June 4, 2024

          Hi Nolan

          I didn't work on FortiAP's SNMP before but I'll try to help.

          Is your FortiAP standalone or managed by a FortiGate?

          Did you download the MIBs from the FortiAP431F?

          AEK
            nolanm
            nolanmAuthor
            Explorer
            June 4, 2024

            Hello AEK,

            I appreciate your willingness to help very much. The AP's are managed by FortiGate and  I downloaded FORTINET-CORE-MIB-build1639 and FORTINET-FORTIAP-MIB-build0409

            AEK
            SuperUser
            AEK
            SuperUser
            June 5, 2024

            Hi Nolan

            I have a FortiAP F series in my lab, I'll see if I can extract anything useful for your request.

            AEK
            Anthony_E
            Staff
            Anthony_E
            Staff
            June 5, 2024

            Thanks a ton Abdelkrim.

            Best Regards
            AEK
            SuperUser
            AEK
            SuperUser
            June 5, 2024

            It's my pleasure Anthony.

            AEK
              AEK
              SuperUser
              AEK
              SuperUser
              June 5, 2024

              Hi Nolan

              Following my tests I couldn't find any related OID on the MIB nor on SNMP walk output.
              So my personal deduction is that there is no such OIDs.

              AEK
              nolanm
              nolanmAuthor
              Explorer
              June 5, 2024

              I'm starting to come to the same conclusion although I'm not giving up yet.

              AEK
              SuperUser
              AEK
              SuperUser
              June 5, 2024

              Following deeper tests I think I've found it (with 99% certitude).

              snmpwalk -v2c -c public  172.16.1.1  1.3.6.1.4.1.12356.101.14.4.4.1
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpId.1."FP221ETF1804****" = STRING: FP221ETF1804****
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpIpAddressType.1."FP221ETF1804****" = INTEGER: ipv4(1)
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpIpAddress.1."FP221ETF1804****" = Hex-STRING: AC 14 00 14
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpLocalIpAddressType.1."FP221ETF1804****" = INTEGER: ipv4(1)
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpLocalIpAddress.1."FP221ETF1804****" = Hex-STRING: AC 14 00 14
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpBaseMacAddress.1."FP221ETF1804****" = STRING: 70:4c:a5:fb:1f:60
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionConnectionState.1."FP221ETF1804****" = INTEGER: onLine(2)
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpUpTime.1."FP221ETF1804****" = Timeticks: (15324300) 1 day, 18:34:03.00
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpDaemonUpTime.1."FP221ETF1804****" = Timeticks: (15316300) 1 day, 18:32:43.00
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpSessionUpTime.1."FP221ETF1804****" = Timeticks: (15279900) 1 day, 18:26:39.00
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpProfileName.1."FP221ETF1804****" = STRING: FAP221E-default
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpModelNumber.1."FP221ETF1804****" = STRING: FP221E
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpHwVersion.1."FP221ETF1804****" = STRING: 0
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpSwVersion.1."FP221ETF1804****" = STRING: FP221E-v6.4-build0437
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpBootVersion.1."FP221ETF1804****" = STRING: 04000002
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpRegionCode.1."FP221ETF1804****" = STRING: I
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpStationCount.1."FP221ETF1804****" = Gauge32: 4
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpByteRxCount.1."FP221ETF1804****" = Counter64: 2742501968
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpByteTxCount.1."FP221ETF1804****" = Counter64: 3042708657
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpCpuUsage.1."FP221ETF1804****" = Gauge32: 3
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpMemoryUsage.1."FP221ETF1804****" = Gauge32: 65
              FORTINET-FORTIGATE-MIB::fgWcWtpSessionWtpMemoryCapacity.1."FP221ETF1804****" = Gauge32: 235224

              The two bold lines are CPU and memory usage (resp.) of my first AP (FAP221E). I'm confirming this info with 99.9% certitude according to my tests.

              Hope it helps.

              AEK
              nolanm
              nolanmAuthor
              Explorer
              June 5, 2024

              I'm not familiar with the syntax, how would I convert those lines to an OID? Also what is that screenshot from?

              AEK
              SuperUser
              AEK
              SuperUser
              June 5, 2024

              Hi

              Your AP is managed, then you send the query to FG IP, like this:

              snmpwalk -v2c -c <community-name> <FG-IP> 1.3.6.1.4.1.12356.101.14.4.4.1



              AEK
              nolanm
              nolanmAuthor
              Explorer
              June 6, 2024

              Where do you enter that command? I tried it in PuTTY and it told me no such command exists



              AEK
              SuperUser
              AEK
              SuperUser
              June 6, 2024

              I guess your PRTG is on a Linux host, right? In that case you can install the net-snmp package and run snmpwalk from CLI (I guess it is available for Windows as well).

              Otherwise you can install it and run it from any other host, as long as you allow SNMP queries from the client IP (on FGT's SNMP config).

              AEK
                nolanm
                nolanmAuthor
                Explorer
                June 14, 2024

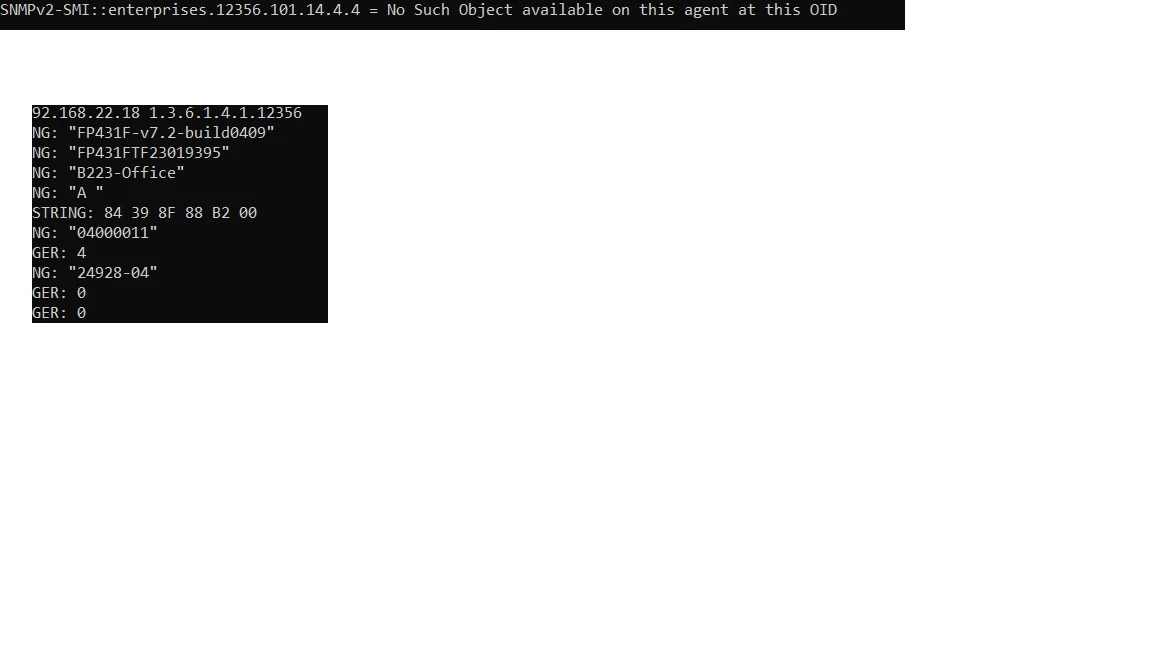

                Here is a screenshot of both outputsHere is a screenshot of both outputsHere is a screenshot of both outputs
