FortiAP 433G rebooting with 30W power supply

  • April 15, 2024
  • 4 replies
  • 3986 views

I recently purchase some FortiAP-433G. I connected them to a Cisco 9200L PoE switch. The AP and switch negociate PoE succesfully at 802.3at, and the switch supplies 30W.

This AP, according to the spec sheets can operate at 802.3at (30W) or 802.3bt (60W)

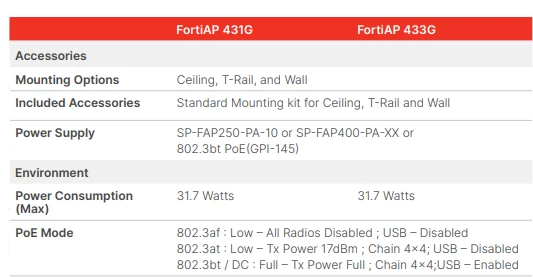

FAP433G PoE Mode.png



When creating more than 2 SSIDs on the AP, ir begins to constantly reboot it self.



Has anyone experience this issue as well?

Best answer by markdr_FTNT

What AP firmware are you running? Always run the latest AP code irrespective of the Firewall.



If you have SSH access to the AP, log into it and see if there are any crash logs. use the keyword 'crash' or 'kp' (kernel panic).

If there are no crashes and/or the AP firmware is up to date then it might be something related to the CAPWAP daemon on the Firewall perhaps.

Log a support ticket if needed.



4 replies

AEK
SuperUser
AEK
SuperUser
April 16, 2024

Can you check in AP events if any relevant logs are shown before reboot?

AEK
    ebilcari
    Staff
    ebilcari
    Staff
    April 16, 2024

    What is the power budget usage in the switch? It may be that the AP is connected to a low PoE priority port that gets cut when a high priority PoE device get's connected. Adding SSIDs should not increase the power usage (radio power) or cause reboots.

    Emirjon
      ovallejo
      ovallejoAuthor
      New Member
      April 17, 2024

      Switch has 847w available, 59w in used.

      ebilcari
      Staff
      ebilcari
      Staff
      April 18, 2024

      Based on the used power budget of the switch, this issue seems not related to PoE consumption. Is the AP connected using both interfaces (RJ45)? Is this AP managed by a FGT or via FortiLAN Cloud?

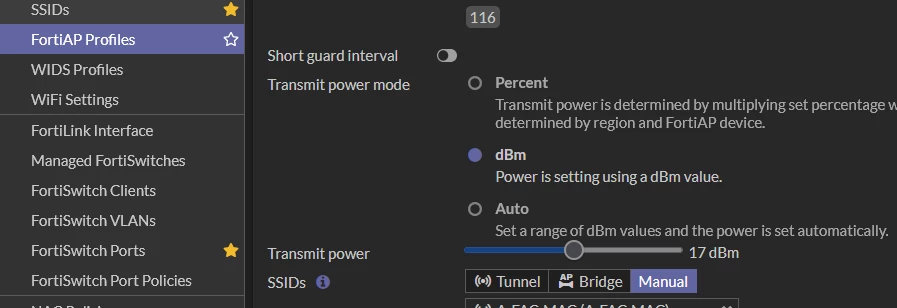

      Since the AP is running in "Low" mode (802.3at), check if the applied AP profile is not configured to use more than 17dBm in Transmit power.


      Emirjon
      markdr_FTNT
      Staff
      markdr_FTNTAnswer
      Staff
      April 18, 2024

      What AP firmware are you running? Always run the latest AP code irrespective of the Firewall.



      If you have SSH access to the AP, log into it and see if there are any crash logs. use the keyword 'crash' or 'kp' (kernel panic).

      If there are no crashes and/or the AP firmware is up to date then it might be something related to the CAPWAP daemon on the Firewall perhaps.

      Log a support ticket if needed.



        ovallejo
        ovallejoAuthor
        New Member
        April 18, 2024

        AP firmware 7.4.2 (build0634).

        - KP log output:

        log KP.png

        - crashlog output:

        log crashlog.png

        prateeksingh
        prateeksingh
        New Member
        March 16, 2025

        Hi,

        did you get any resolution to this challenge? As we are also facing the same rebooting issue with our FortiAP-431G.



        thanks!

        foxconnhouIT
        foxconnhouIT
        New Member
        March 25, 2026

        Im having the same issue, did you get the solution? Im assuming that one of the SSID is not configured properly so its getting crashed at some point, but I don't found the correct answer yet.
