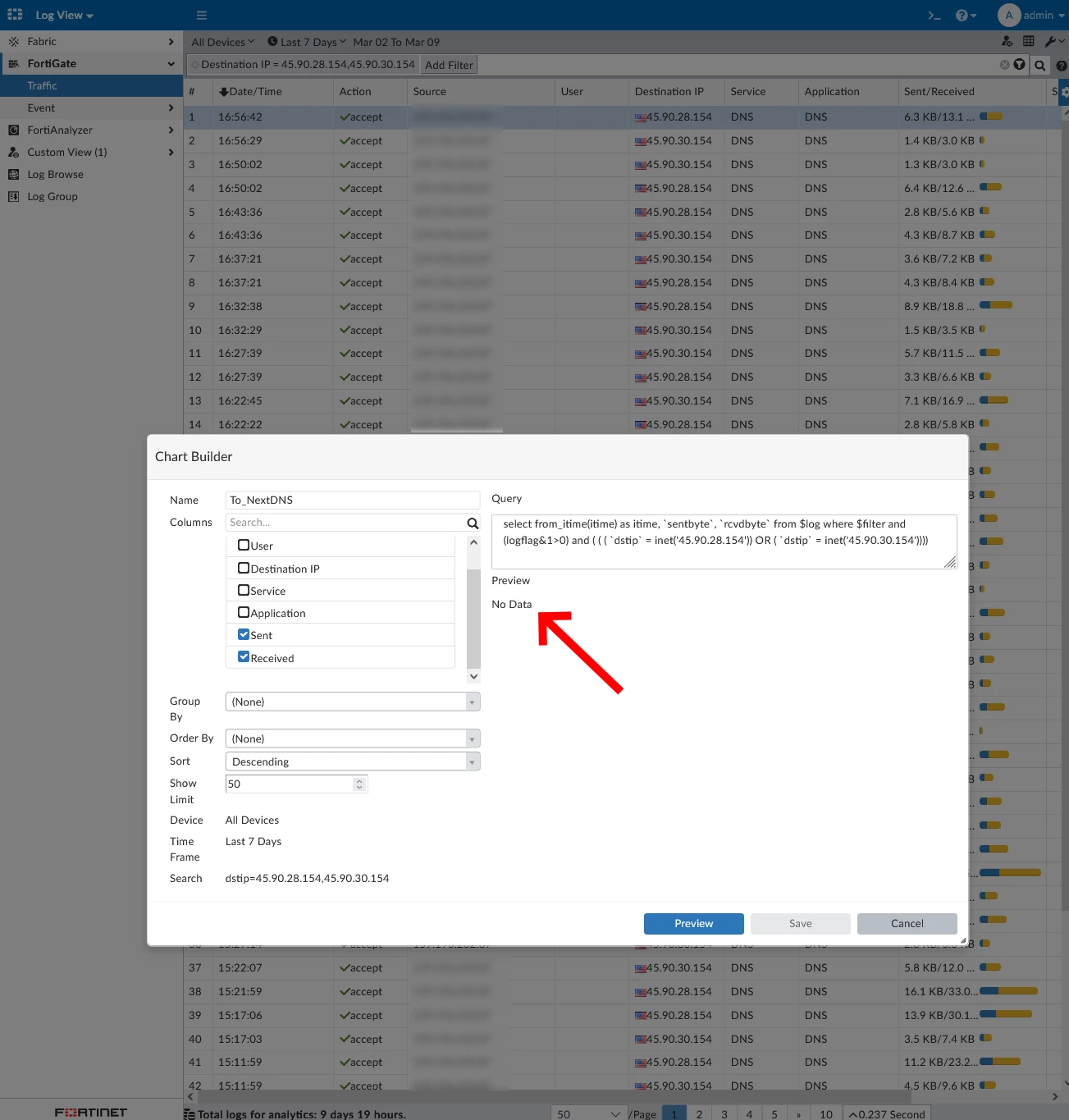

FortiAnalyzer "No Data" in Chart Builder, despite lots of matched sessions in Log View

Hello Fern,

Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.

Thanks,

Hello Fern,

This article may be relevant to your query: https://community.fortinet.com/t5/FortiAnalyzer/Technical-Tip-Chart-Builder-preview-returning-no-data/ta-p/262447

Let me know if you would like any further assistance.

Kind regards,

Hi @AlexFerenX ,

Review if the following options are in use:

config log setting  <<<<<<<<< There are more options under this menu
set fwpolicy-implicit-log enable
set extended-log enable
end
config system global
set log-uuid-address enable
end

Please review the following articles:
https://community.fortinet.com/t5/FortiAnalyzer/Troubleshooting-Tip-FortiView-Top-Source-Addresses-and-Top/ta-p/269211

https://docs.fortinet.com/document/fortianalyzer/7.4.2/administration-guide/385104/report-guidance
https://docs.fortinet.com/document/fortianalyzer/7.4.2/administration-guide/531107/data-policy-and-automatic-deletion

https://docs.fortinet.com/document/fortianalyzer/7.4.2/administration-guide/86926/enabling-auto-cache

Please try the suggested changes and keep us posted.

Best,
