FortiAnalyzer is not Inserting Logs

  • March 18, 2022
  • 1 reply
  • 11377 views

Hi,

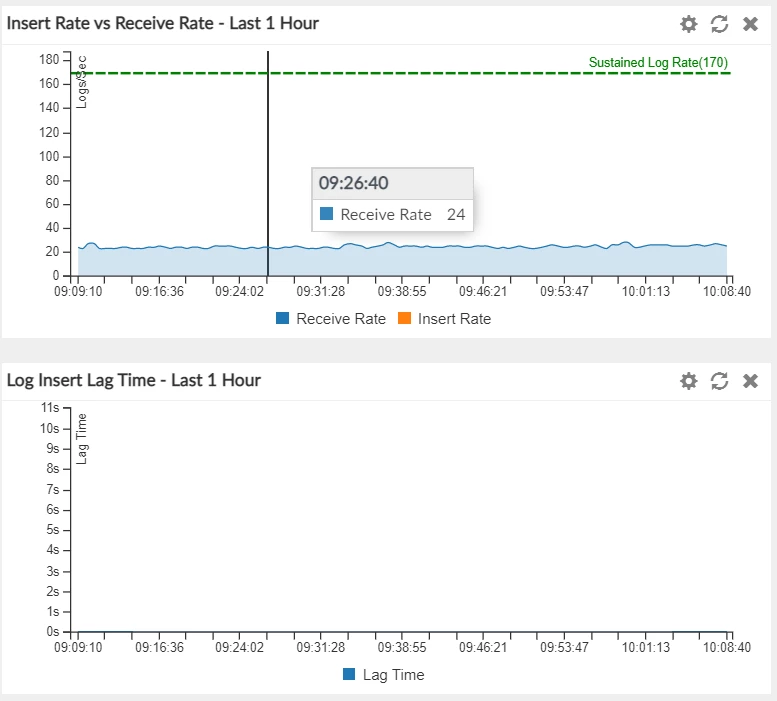

We have a FortiAnalyzer VM deployed on ESXi last year at our customer's place. Everything was working fine but since a week we were not able to see any logs on "Log View". When we checked the dashboard, we can see that the FortiAnalyzer is receiving logs from the FortiGate but it is not Inserting them into the database.



The logs are still present in Log Browse (Compressed). FortiAnalyzer is in Analyzer mode and not Collector mode.



How do we fix this ?






Thank you.



FortiAnalyzer FortiGate

Best answer by Debbie_FTNT

Hey chethan,

first thing you can try is rebuilding the database.

exe sql-local rebuild-db

That shouldn't impact anything; while rebuilding the DB there is limited access to Log View/FortiView and Reporting, but you don't have those functions working anyway.

You can also refer to this KB for the rebuild command: https://community.fortinet.com/t5/FortiAnalyzer/Technical-Tip-FortiAnalyzer-SQL-database-delete-and-rebuild/ta-p/193883



If, after the rebuild is completed, the issue still persists, you can try deleting and rebuilding to have the database recreated from scratch. Other than that, I can only suggest digging into the sql daemons:



For example:

#dia de app sqllogd 8

#dia de en



You can also check the release notes for your Analyzer's firmware version to see if there are reported issues, check the Analyzer's own event logs and the crashlog (dia de crashlog read, I believe) to see if there are any obvious errors.

1 reply

Debbie_FTNT
Staff & Editor
Debbie_FTNTAnswer
Staff & Editor
March 18, 2022

Hey chethan,

first thing you can try is rebuilding the database.

exe sql-local rebuild-db

That shouldn't impact anything; while rebuilding the DB there is limited access to Log View/FortiView and Reporting, but you don't have those functions working anyway.

You can also refer to this KB for the rebuild command: https://community.fortinet.com/t5/FortiAnalyzer/Technical-Tip-FortiAnalyzer-SQL-database-delete-and-rebuild/ta-p/193883



If, after the rebuild is completed, the issue still persists, you can try deleting and rebuilding to have the database recreated from scratch. Other than that, I can only suggest digging into the sql daemons:



For example:

#dia de app sqllogd 8

#dia de en



You can also check the release notes for your Analyzer's firmware version to see if there are reported issues, check the Analyzer's own event logs and the crashlog (dia de crashlog read, I believe) to see if there are any obvious errors.

    chethan
    chethanAuthor
    Explorer II
    March 18, 2022

    Hey Debbie,



    I ran the diagnose debug crashlog read command and the below is the following output.

    Signal 11 (Segmentation Fault) ?





    Firmware FAZVM64 v6.4.7-build2412 210902 (GA)
    2022-03-04 09:58:25 Application ddmd
    2022-03-04 09:58:25 Signal 11 (Segmentation fault)
    2022-03-04 09:58:25 Pid 6207 ppid 6201 backtrace:
    2022-03-04 09:58:25 [0x7fd5eded42e8] libsegfault.so print_trace+0x23/0x138
    2022-03-04 09:58:25 [0x7fd5eded4497] libsegfault.so catch_segfault+0x9a/0xfb
    2022-03-04 09:58:25 [0x7fd5ec8ff90f] libc.so.6 +0x3890f
    2022-03-04 09:58:25 [0x7fd5ecabc16f] libmonitor.so monitorDbSetCustomFuncs+0x6f/0x80
    2022-03-04 09:58:25 [0x7fd5ecabc289] libmonitor.so +0xd289
    2022-03-04 09:58:25 [0x7fd5ecabc309] libmonitor.so monitorDbStartTransaction+0x5/0x42
    2022-03-04 09:58:25 [0x7fd5ecabc92e] libmonitor.so +0xd92e
    2022-03-04 09:58:25 [0x7fd5ecabc3b5] libmonitor.so monitorDbBuild+0x6f/0x133
    2022-03-04 09:58:25 [ 0x414b94] ddmd main+0x3b/0xd1
    2022-03-04 09:58:25 [0x7fd5ec8eadea] libc.so.6 __libc_start_main+0xea/0x1be
    2022-03-04 09:58:25 [ 0x4024f9] ddmd +0x24f9



    I'm yet to rebuild the database.





    UPDATE:

    I ran the rebuild command and the process is still in progress.

    But I've started to see logs in "Log View" now.



    Will update again after the rebuilt process is complete.



    Thank you

    Debbie_FTNT
    Staff & Editor
    Debbie_FTNT
    Staff & Editor
    March 18, 2022

    Hey Chetan,

    the ddmd process is something with device manager if I remember correctly; and the crash was some two weeks ago, so I'm not sure if it would be relevant.
    If you see that same segmentation fault repeatedly, or if the logs stop showing and you see the crash again, I would suggest reaching out to FortiAnalzyer Technical Support; it could be a bug or something else going on that needs some in-depth troubleshooting.
