fortiagte v7.2.0 Automation Stitch for daily backup not running.

  • November 27, 2024
  • 4 replies
  • 2098 views

Hello Expert,



I create a automated stitch to schedule  daliy back and tftp the file to windows server.

When I Test using a exec backup full-config tftp backup.cfg 192.xx.xx.xx from the fortigate the backup works okay.



I created the action trigger and stitch but for some reason the backup is not generated at the designated time  as defind in the trigger.

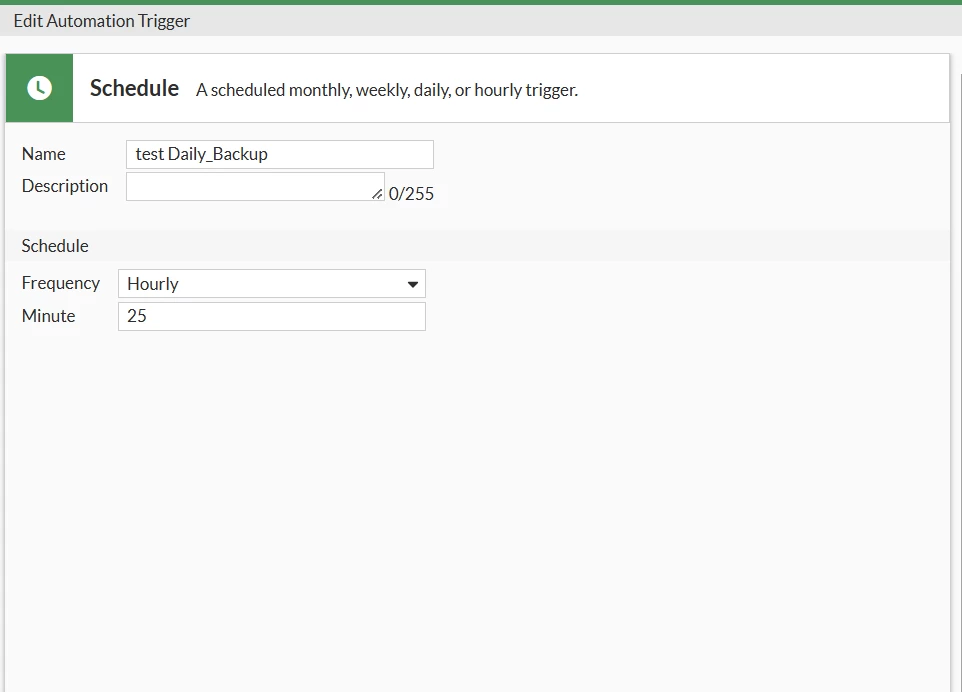

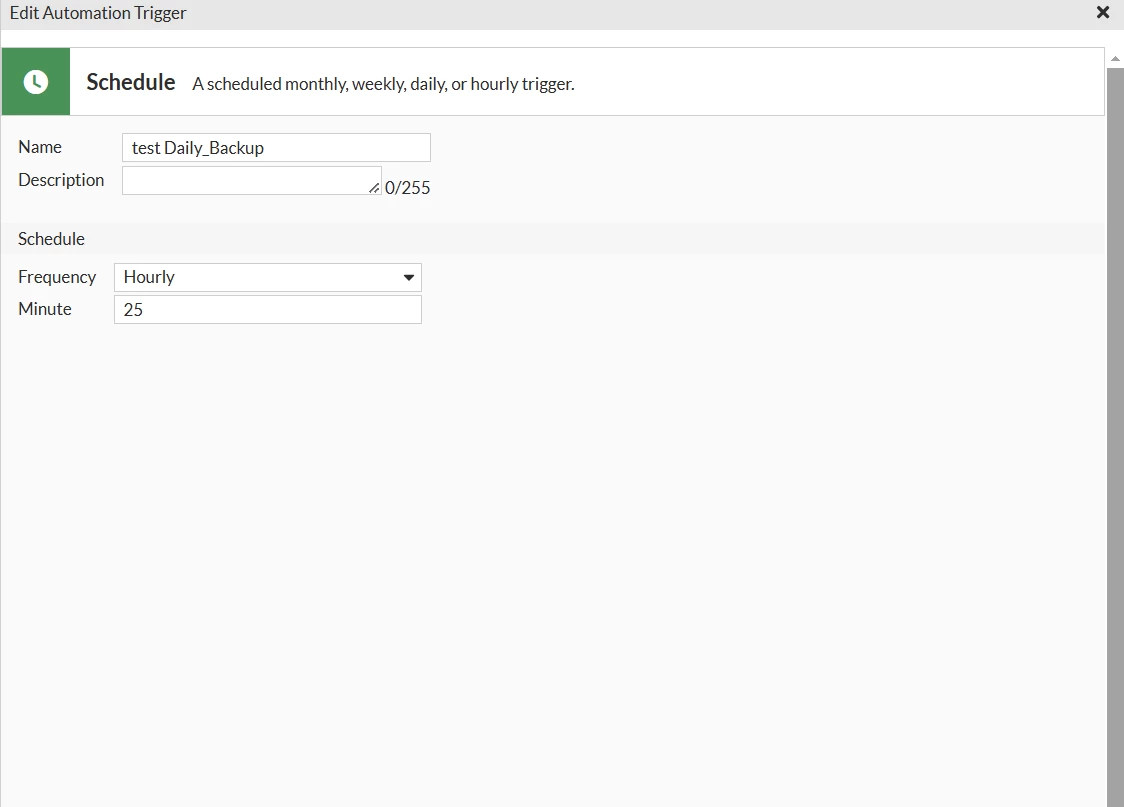

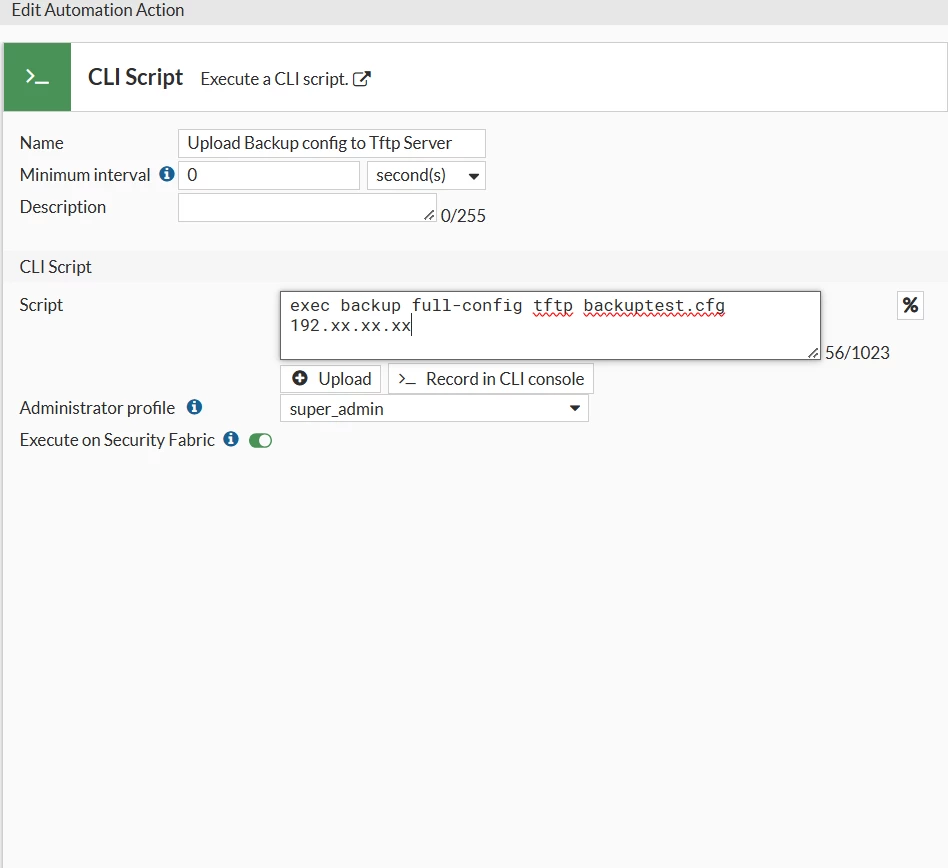

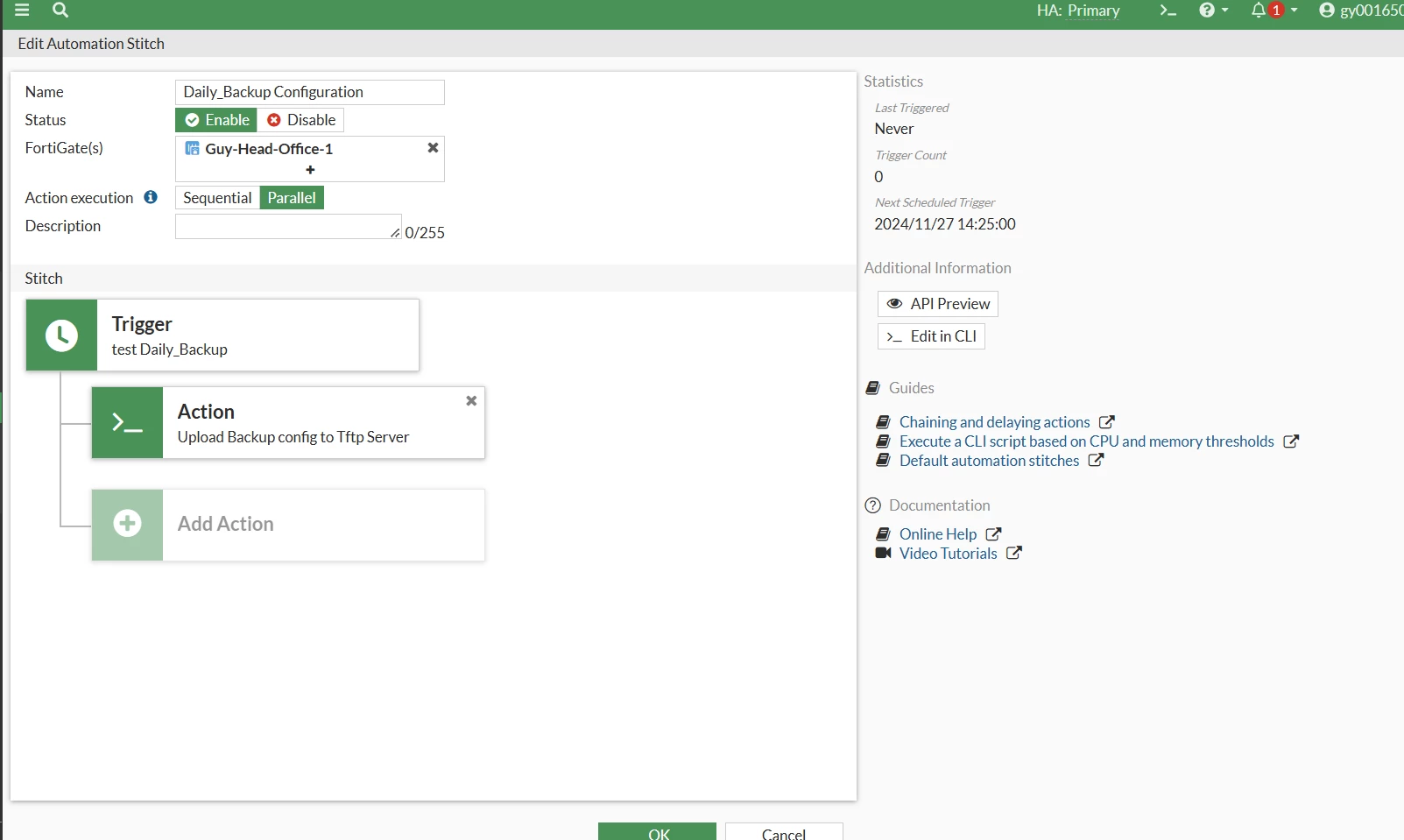

I humbly request some guidance to troubleshootScreenshot 2024-11-27 161901.pngScreenshot 2024-11-27 161815.pngScreenshot 2024-11-27 155554.pngScreenshot 2024-11-27 155451.png Thank you

4 replies

saleha
Staff & Editor
saleha
Staff & Editor
November 27, 2024

Hello jomof,



Thank you for reaching out. My understanding is that the backup works through the stitch however it does not execute at the 25th minute of every hour according to the screen shot. You can try troubleshooting steps for automation stitches running a debug as advised on the following document:
https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-check-why-automation-stitch-is-not-working/ta-p/190010

You can also check system event logs to verify if something wrong happened when the stitch is triggered from Log&Report>System Events menu.



Thank you,

saleha

DPadula
Staff & Editor
DPadula
Staff & Editor
November 27, 2024

Change the 'action execution' from Parallel to Sequential. Did it work this time?

sjoshi
Staff
sjoshi
Staff
November 28, 2024

Hi @jomof,



If you run the same cmd manually on the CLI it works?



collect below output:-

diag debug app autod -1

diag debug enable



test the automation



Thanks, Salon
    jomof
    jomofAuthor
    New Member
    November 28, 2024

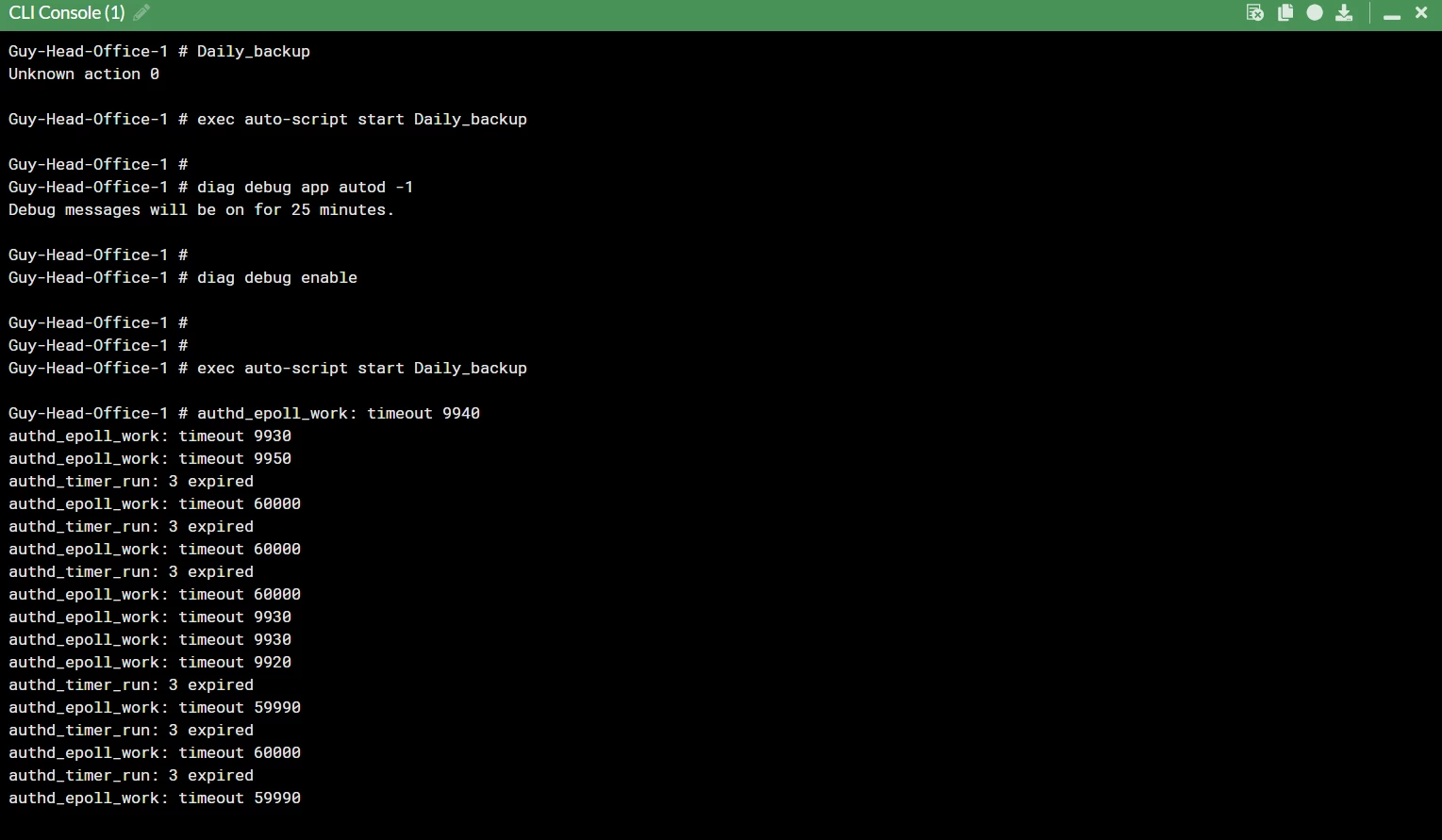

    When i executed the command for debuging see screen shot. Screenshot 2024-11-28 103558.png

    dingjerry_FTNT
    Staff
    dingjerry_FTNT
    Staff
    November 28, 2024

    Hi @jomof ,



    Please disable the 'Execute on security Fabric' option in the CLI Script Edit page in the GUI for a try.

    saleha
    Staff & Editor
    saleha
    Staff & Editor
    November 29, 2024

    Hi jomof,



    Yes it looks like the execution of the script expired. Do you get any notification on the tftp server that there was an attempt to connect or that does not even happen. Have you tried to rebuild the script specially the trigger and test again. can you share the stitch, action and trigger config in cli please:

    show sys automation-stitch <name>

    show sys automation-trigger <name>

    show sys automation-action <name>



    Thank you,

    saleha
