FortiADC redirect/rewrite to URL with portnumber

  • November 18, 2021
  • 1 reply
  • 3143 views

NOOB question alert ;)

I want to make a redirect/rewrite to an URL with an portnumber other than 80 or 443, for example https://newpage.com:8080. If I make a redirect or rewrite the FortiADC doesn't do anything with this portnumber. Cannot find an answer or example in the FortiADC manual.

Probably solvable with a regular expression, if so an example would be great.

1 reply

ddsouza_FTNT
Staff
ddsouza_FTNT
Staff
November 18, 2021

As I understand, you want FADC to redirect HTTP requests containing the URL 'http://newpage.com' received from clients to 'https://newpage.com:8080'. Please correct me if I am wrong. If my understanding is correct, then there are two ways to achieve your requirement

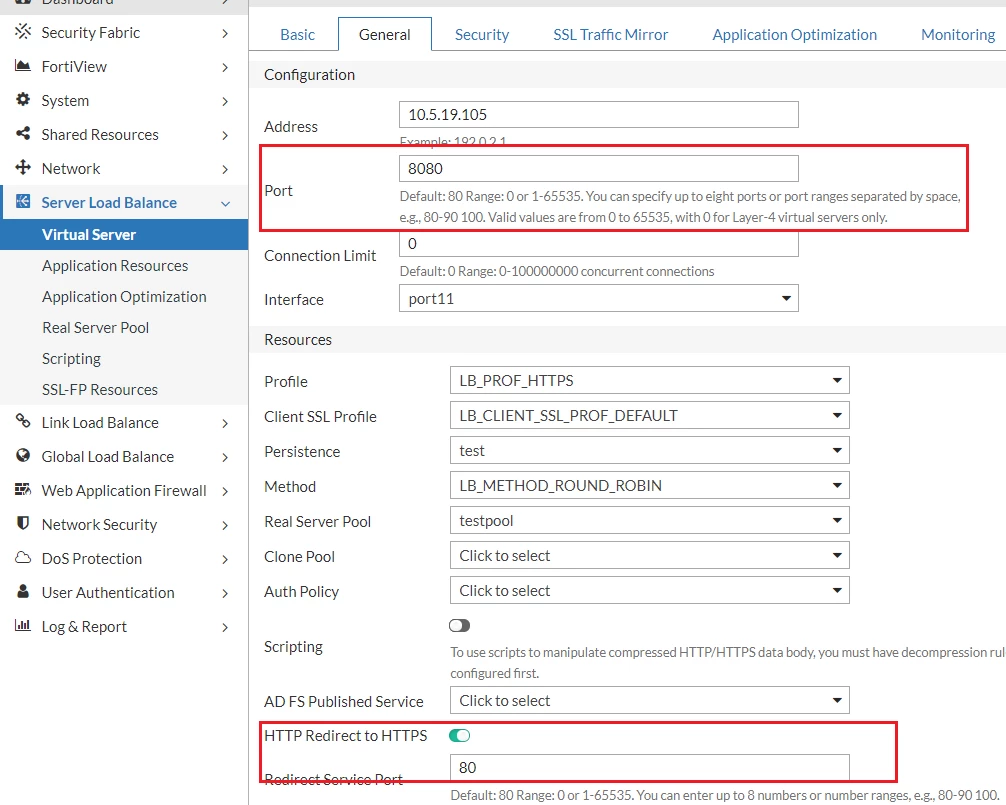

1) Using the 'HTTP Redirect to HTTPS' option in the Virtual Server configured for HTTPS service.

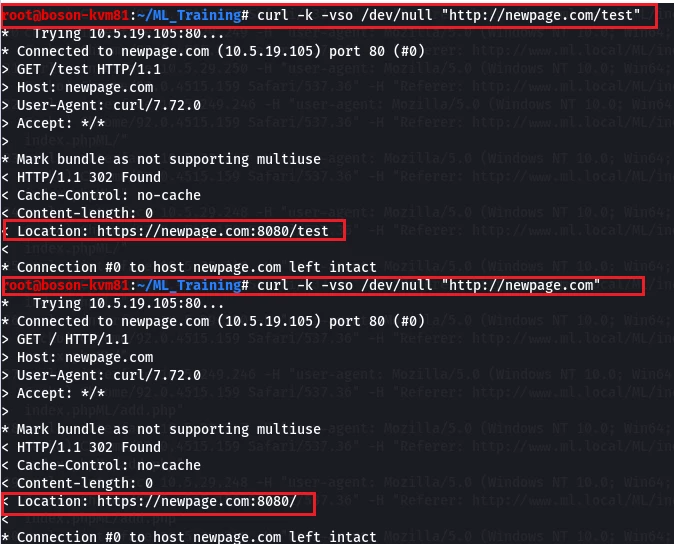

  • Test Results




OR



2) Using the Content Rewriting feature.

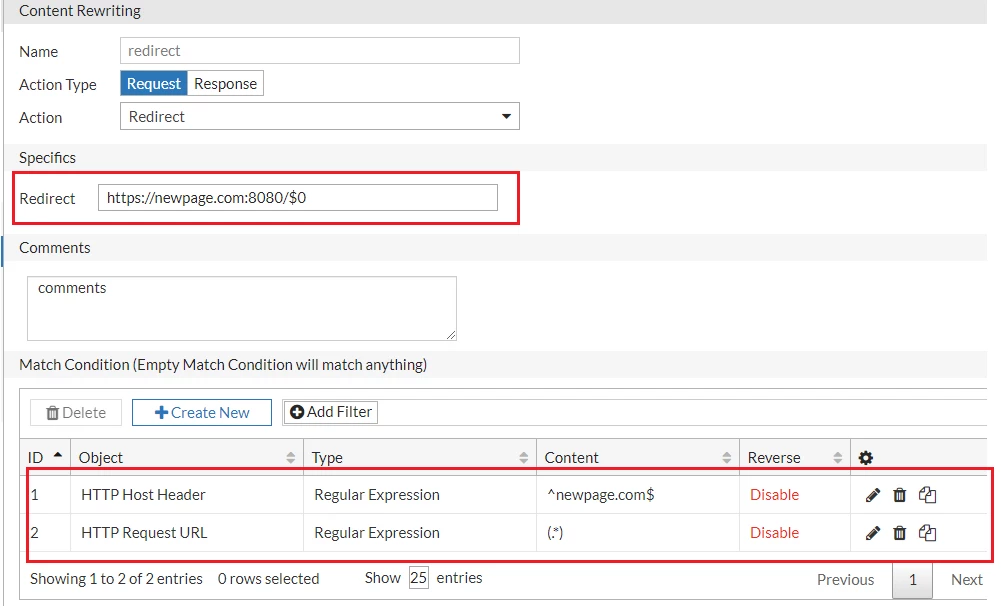

  • Create a Content Rewriting profile

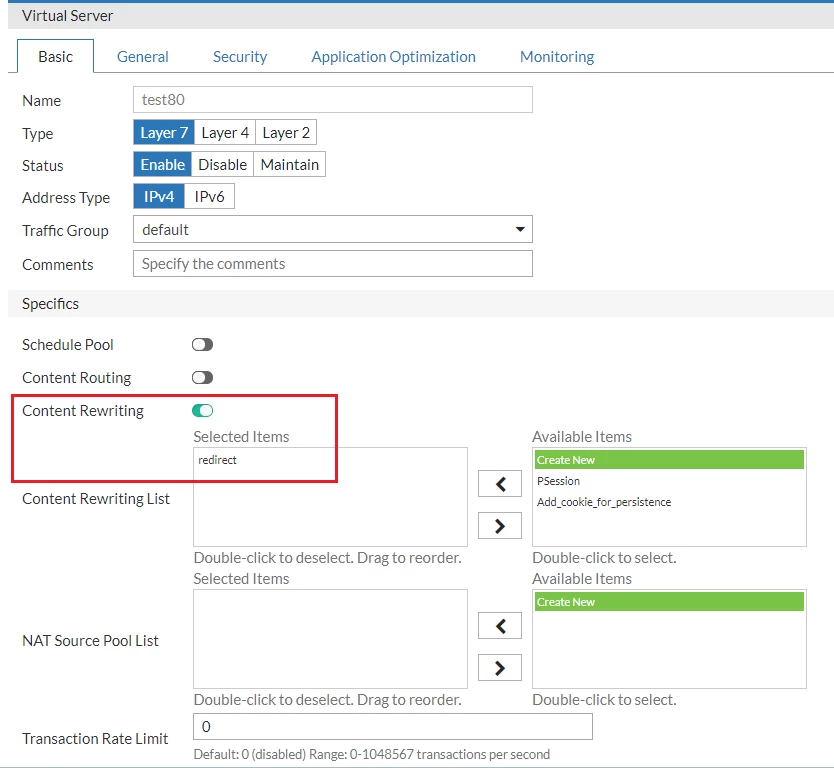

  • Call the Content Rewriting profile in the Virtual Server configured for the HTTP service.

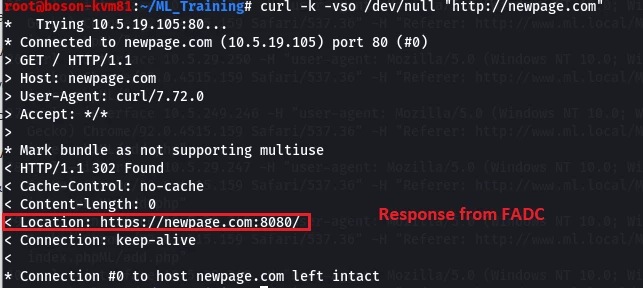

  • Test Results




If you want the request containing  http://newpage.com to be translated to https://newpgae.com:8080 while forwarding to the real server, please let me know. I can add some examples in this thread.

    BJBee
    BJBeeAuthor
    Visitor III
    December 10, 2021

    Thanks, we will try both solutions and will let you know which one works best.
