Format Fortianalyzer

Hi there, please change "Operation Mode" to Analyzer and try to rebuild DB again:

exe sql-local rebuild-db

Regards,

hz

Now I require is completely format the disk and load the firmware and make a new database.

 using below steps

1. upgrade to latest release like FAZ 5.2.4 0738

2. on FAZ GUI - System Settings - Dashboard - System Information widget, backup "System Configuration"

3. exec reset all-settings

4. exec format disk

5. re-config IP

6. you can restore config from 2, or you can just re-add device into Device Manager and re-config other config like report etc on FAZ

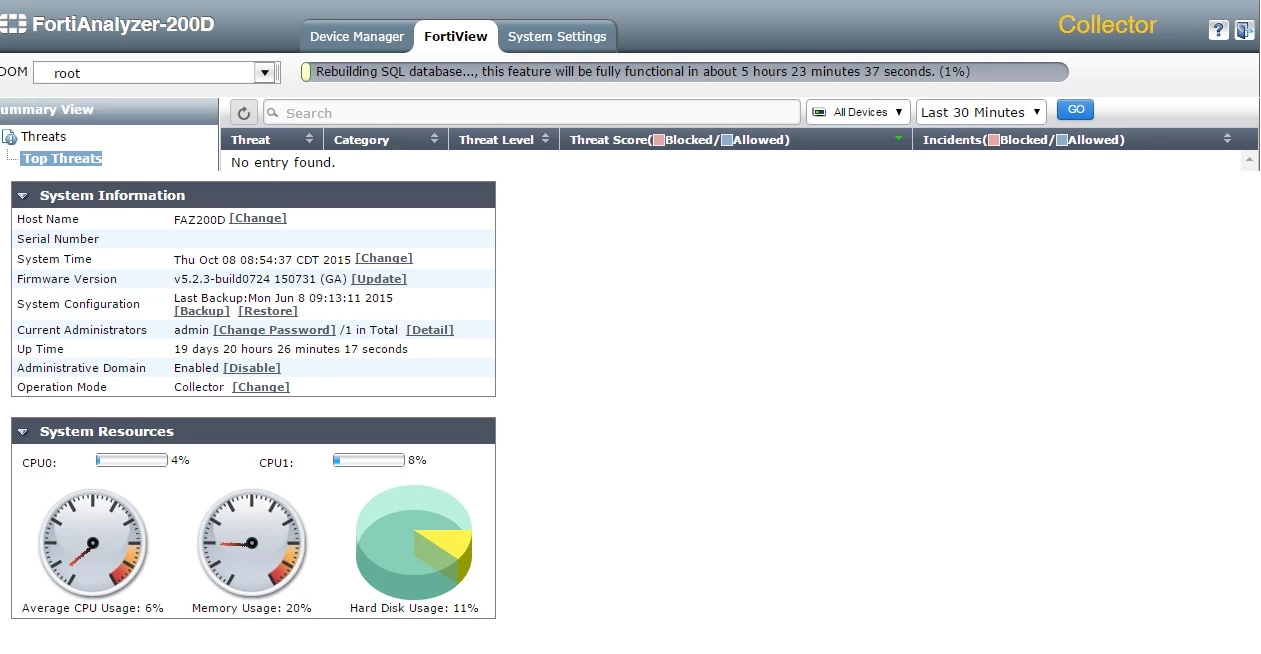

but normally, FAZ just need to rebuild SQL db "exe sql-local rebuild-db" and if this still not working, and your 1st pic is in collector mode, can you provide more details for "try a consumption report bandwidth but my device showed me a error telling me not find a specific column in the database.", so how you generate a report and what error you see from where?

also, is it for a predefined report or a user created report? what FGT version send logs to FAZ?

Thanks

Simon
