Forinac sometime not send CoA

Forum|Forum|30 days ago
July 10, 2026
9 replies
128 views

If the endpoint was idle for some time then when i change the group on the NAC, I can see the fortinac not send the CoA to the switch.

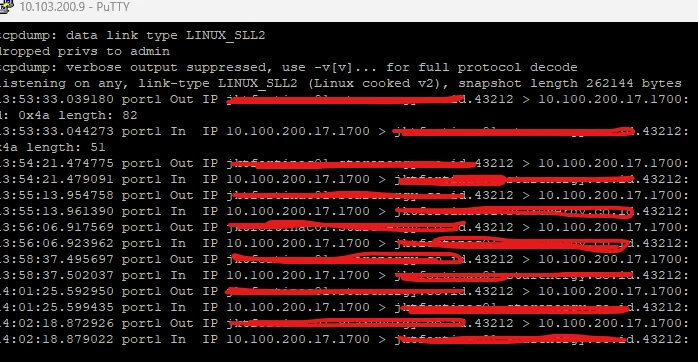

We can see here the last fnac send the CoA is 14:02:18 then i change the group for that host at 14:30 and there is no CoA bsend to the switch

FortiNAC

ebilcari

Staff

The host must be online in FNAC and during policy evaluation, be detected as connected to the wrong network for the CoA/DM to be sent.

Emirjon

HS08Author

Explorer

yes the host is online, the client can ping to the fnac also from fnac can send message to the host. But when i change the group then there is no CoA. Any other thing should be checked? Also we no need to have PA for changing the vlan right?

ebilcari

Staff

Actually, FNAC needs to see the host as connected/online through the network device to which the host is connected, direct communication with the host itself is not required.
Once the CoA/DM is sent, the port is typically bounced (disabled and re-enabled), and the IP address is renewed. PA Optimization when enforced through the agent, can help accelerate the IP renewal process but an agent is not required for FNAC to change the hosts network assignment.

Emirjon

ebilcari

Staff

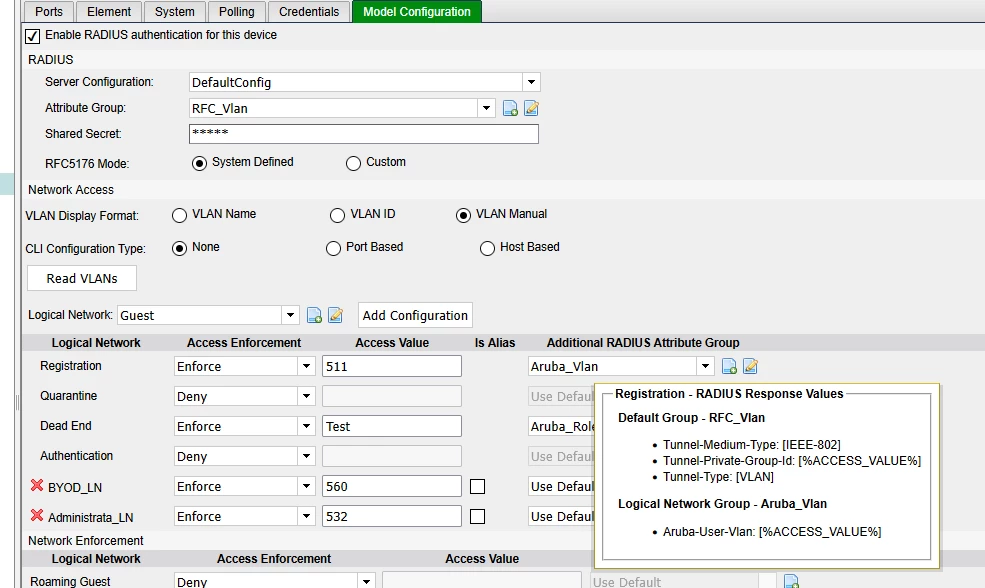

This appear to be a custom attribute added in the ‘Access-Accept’ and is not a dedicated CoA/DM message. Check in the model configuration the attributes that are configured (hover mouse). By default FNAC will try to merge the attributes from the default group and additional ones.

Emirjon
