Fnac mac address discovery filter

  • October 2, 2024
  • 2 replies
  • 1965 views

Hi Forticollegues,

I'm implementing a Fortinac solution to manage dynamic vlans via unique WiFi SSID.

The wifi networks and all wired networks are managed by Fortigate.

In Fnac inventory I see all Fortigates ports mapped and FNAC learn all client mac address from wired and wireless ports.

There is some methods to instruct the Fnac to learn mac address only by wireless networks? I don't need to manage all wired networks and I see a lot of rogue devices from Fortigate wired ports.

Thank you

Vincenzo

Best answer by scitlak

Hi,



Unfortunately, it is not possible to exclude a port or SSID in FortiNAC for L2 Polling. You may disable L2 polling for your FortiGate in FortiNAC but in this case, you will lose also visibility for WIFI clients.



2 replies

AEK
SuperUser
AEK
SuperUser
October 2, 2024

Hi Enzo

One the three pillars of FortiNAC is visibility. If you remove it then you are like bling in your network and your FortiNAC is like useless.

AEK
    vincenzo
    vincenzoAuthor
    Explorer
    October 2, 2024

    Hi Aek,

    I don't wont remove Fnac, but in this case i don't need visibility of wired network. I collect a lot of rogue devices learned by wired net, but my single point of access is the SSID managed by Fortinac.

    AEK
    SuperUser
    AEK
    SuperUser
    October 2, 2024

    I mean if you remove visibility (even partially), not FNAC.

    AEK
      ebilcari
      Staff
      ebilcari
      Staff
      October 2, 2024

      FNAC will try to find all connected hosts in the network devices it manages as long as they are present in their MAC address and ARP table. The case of the FGT is a bit unique since it manages both wired and WiFi hosts. Currently there is no way to filter the information and learn only the WiFi hosts.

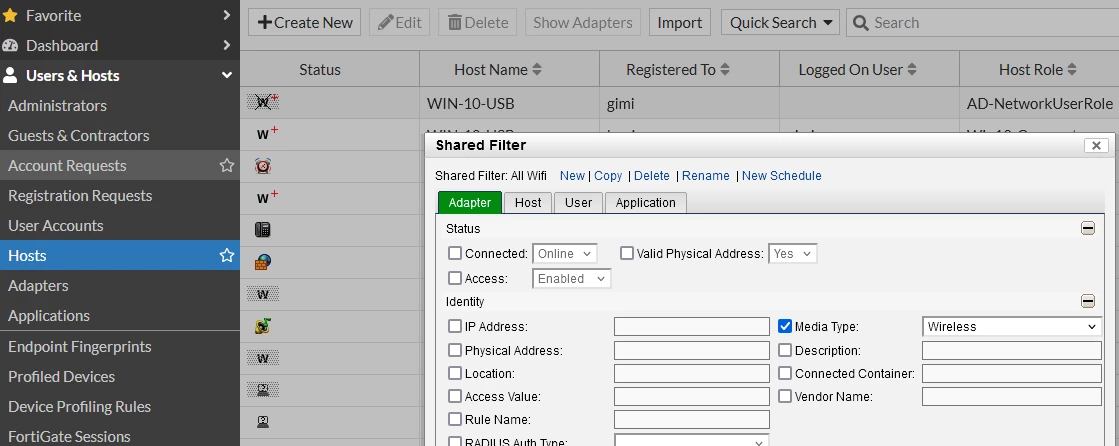

      The rogue devices will not consume any license. For better visibility, you can create a custom filter in Hosts/Adapters to show only Wireless hosts:

      host filter.PNG

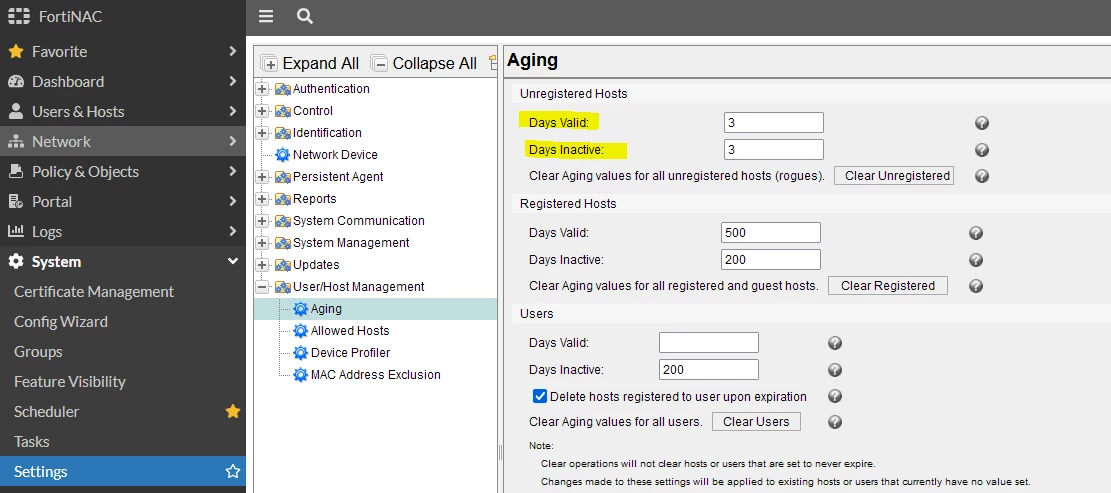

      If the wired ports have a high turnover rate (new guest hosts daily), you can lower the aging time to a few days so the rouges are frequently cleaned up:


      Emirjon
