Fnac License consumption

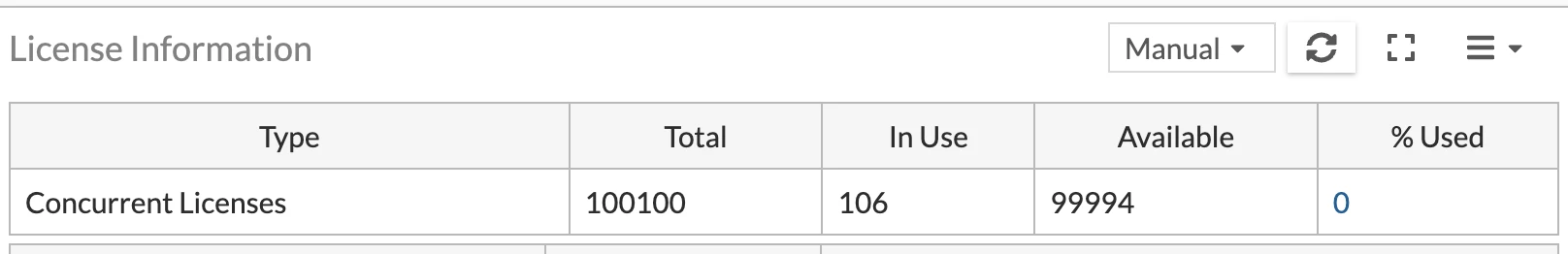

As per doc you should be able to click on the In Use number


The registered clients that are currently online (connected) are those who consume license slots.
Two conditions: Registered and online.

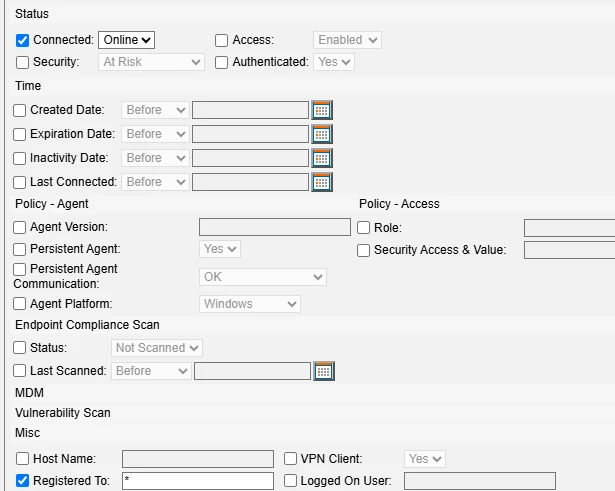

You can see them from hosts view using filters or custom filter.

Hi HS

The filter seems correct. This document explains in details how license slots are consumed.

The following endpoint state will consume a License:

• Online hosts in the Host view( including registered hosts and IP Phones).
• Online, non-infrastructure devices in Topology View (servers, printers, IP Phones).

This count includes hosts, servers, or devices that are online on the network at any given time. When a host, server, or device disconnects from the network, the license is released and can be used for another connection.
The following endpoint state will not Consume a License:

• Rogues.
• Switches, routers, wireless controllers, and wireless access points in Topology View.

I’m not 100% sure but if I understand well the logic I think it doesn’t matter if .1x is enabled for some or all clients, the most important is if the client is registered and online.
