Explorer II

Question

FMG-VM installed on Hyper-V on Windows 10 Pro

Forum|Forum|4 years ago
July 24, 2022
8 replies
5274 views

Hello

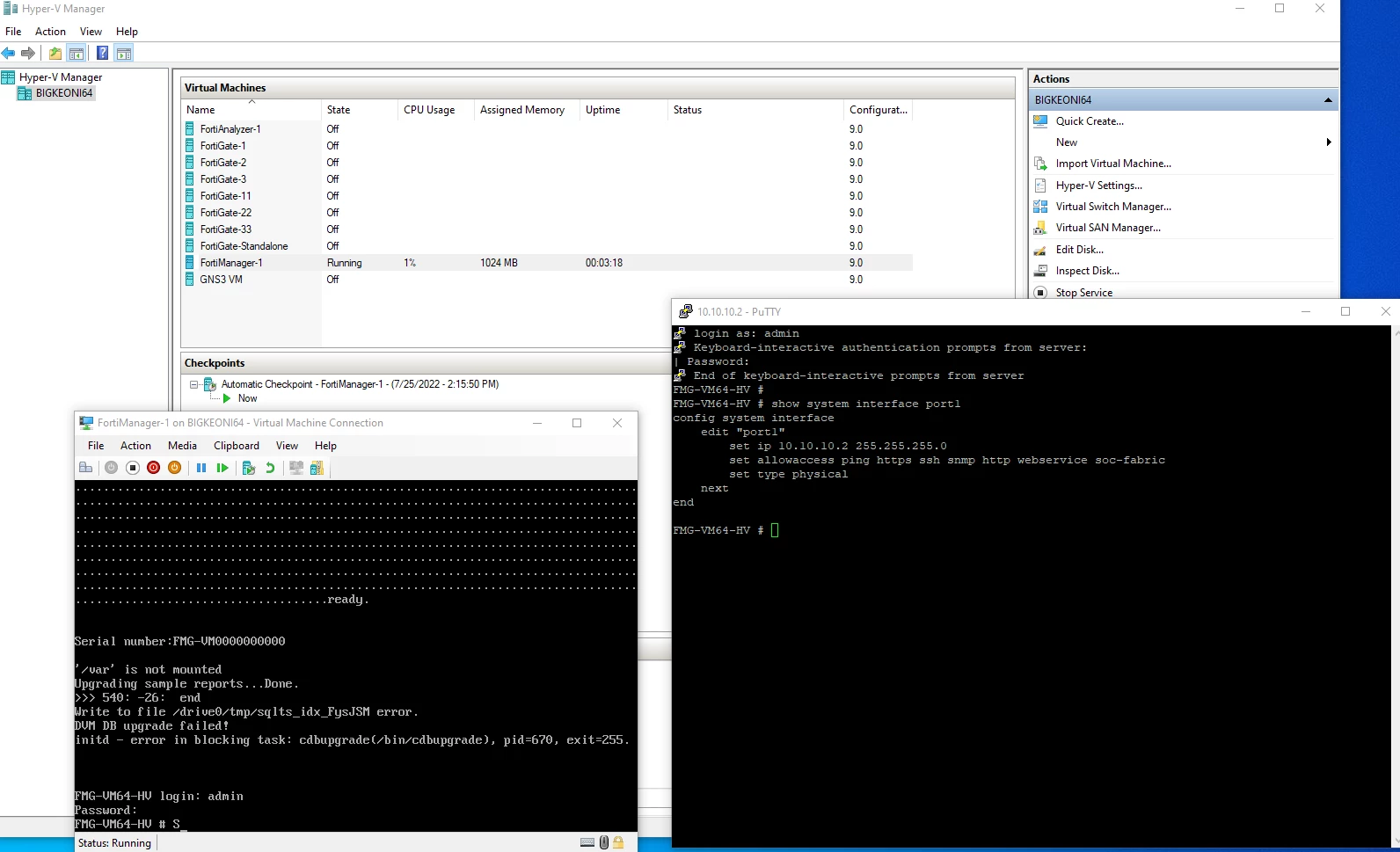

I currently am SSHd into the FMG-VM and I can ping port1 from my host machine. Everything is on this host machine and it is all created on an internal hyper-V switch. My host Vnic is 10.10.10.10 and my FMG port1 is 10.10.10.2

I am able to ping the 10.10.10.2 from Windows DOS CMD and I can see the FMG port1 mac in the hosts arp table.

However, I cannot seem to web GUI to the FMG from a browser on the host machine, even though I can ping th einterface. Here is how my port1 is setup:

edit "port1"

set ip 10.10.10.2 255.255.255.0

set allowaccess ping https ssh snmp http webservice

set type physical

Thank you for your assistance.

Fortimanager

ssudhakar

Staff

Hi there:

Can I know what port are using to access the FMG GUI ?

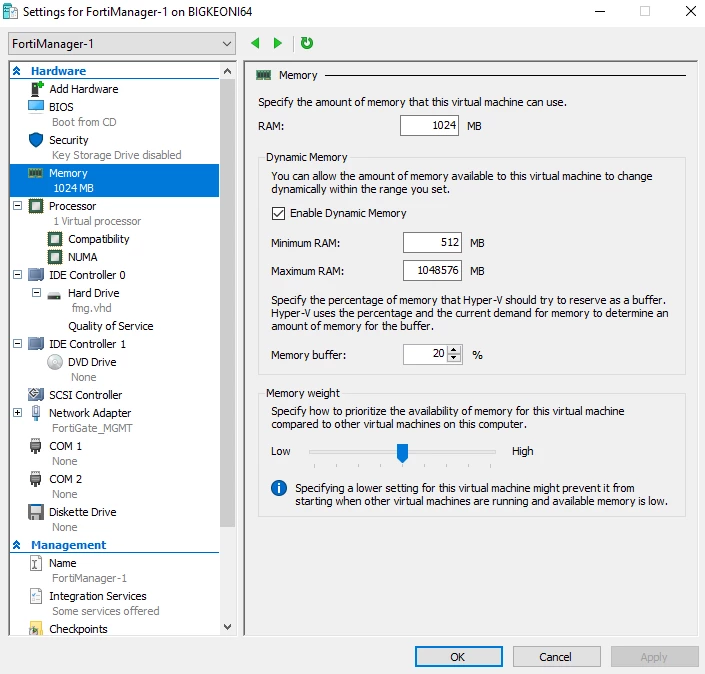

Can you try expanding your disk size and then try web service ?

Thank you,

Hope.

bigkeoni64Author

Explorer II

Hello Hope - you sure can! Please let me know if I can provide anything else.

ckarwei

Staff

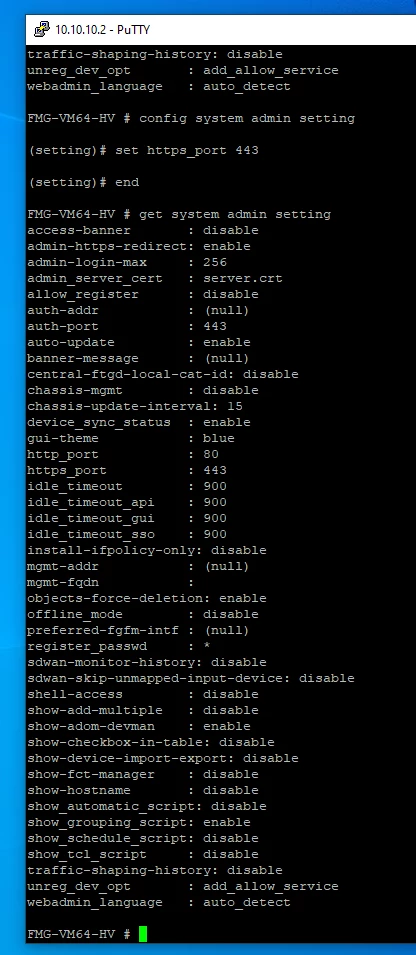

Have you verify the https port?

config system admin setting

set https_port xxx
end

bigkeoni64Author

Explorer II

Thanks Kar, still no luck - I appreciate your suggestions.

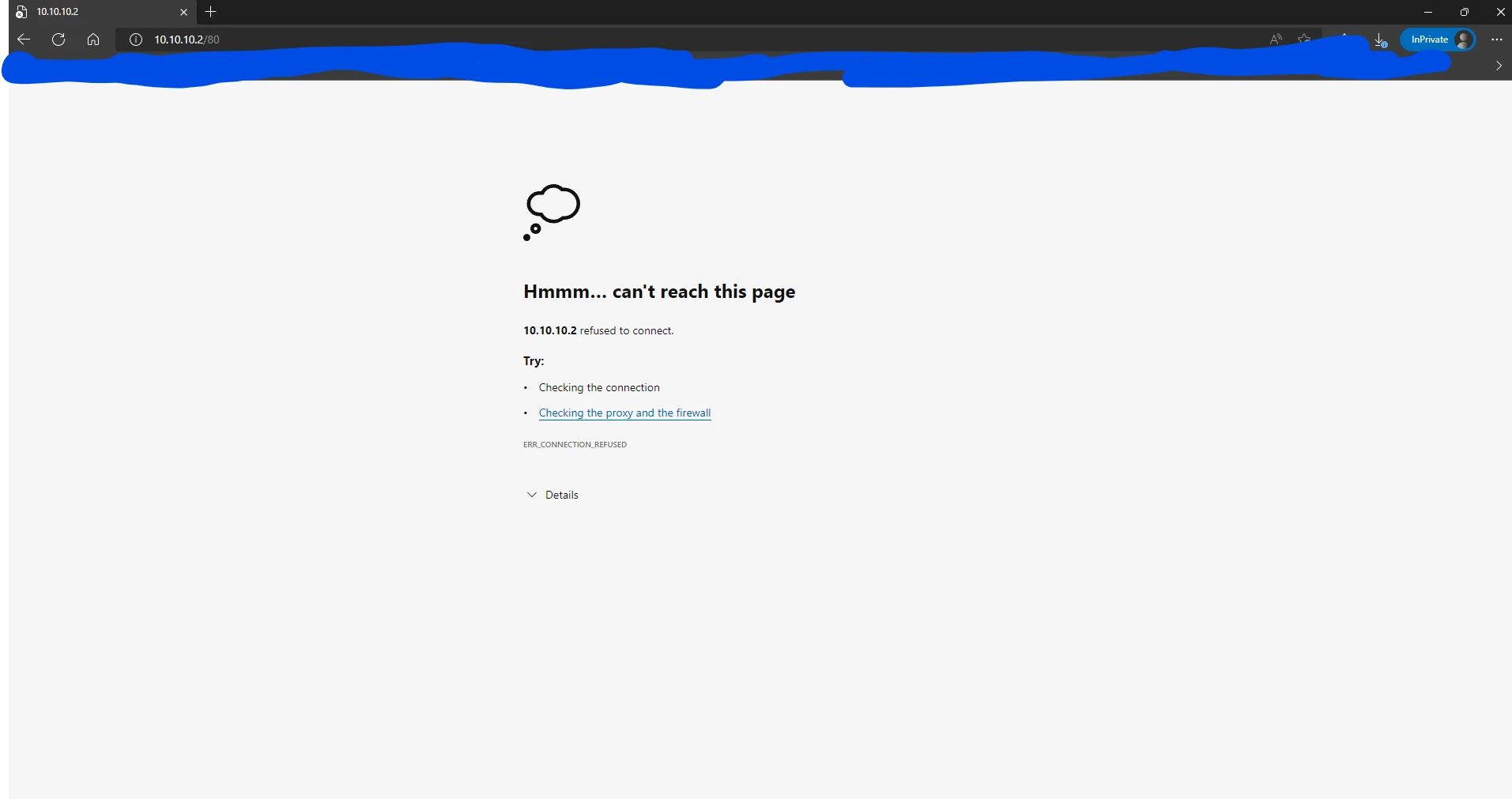

Even Inprivate window does not work:

ckarwei

Staff

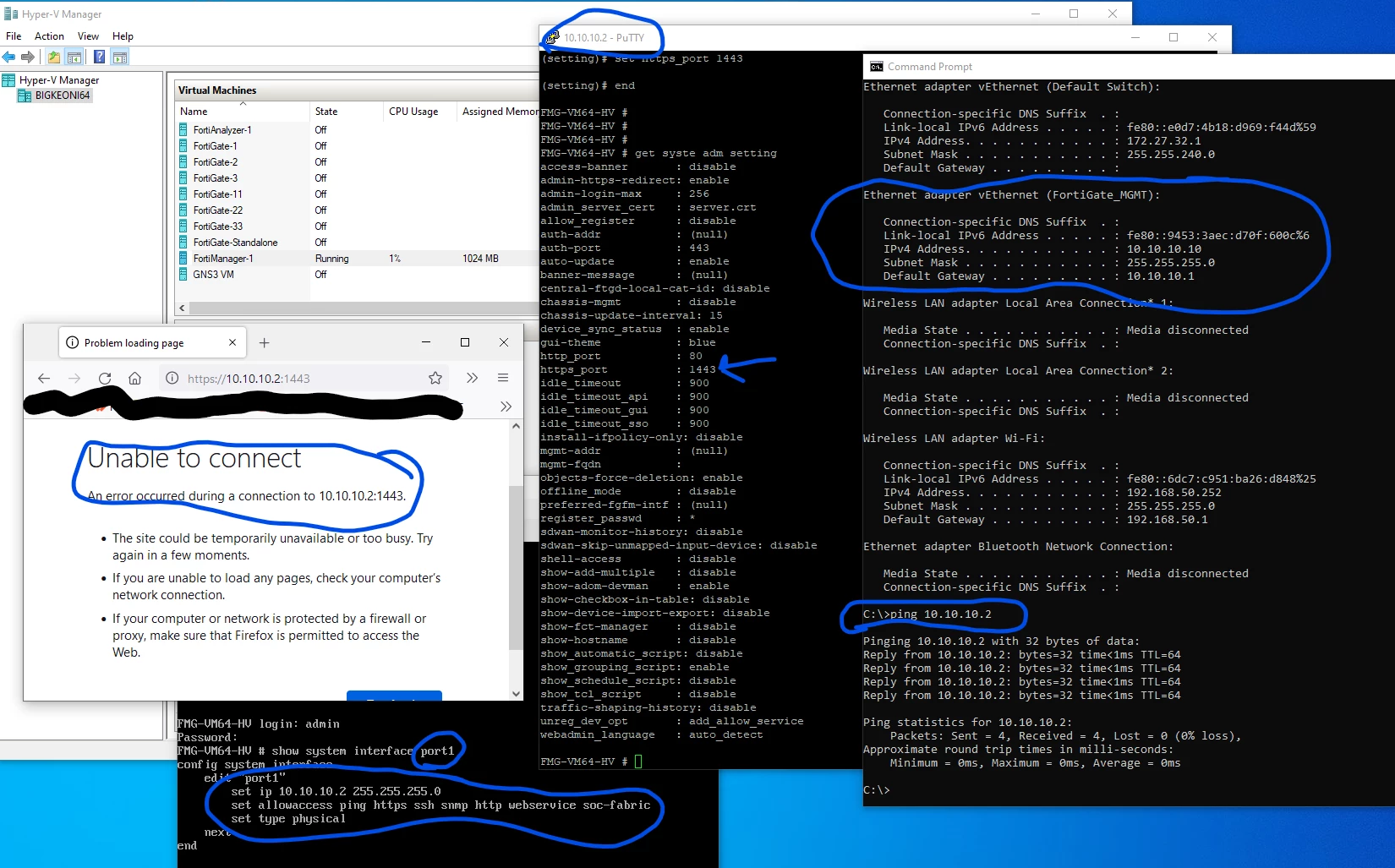

I'll suggest to try using custom https port. Probably something to do with the multihome setup.

config system admin setting

set https_port 1443
end

https://10.10.10.2:1443

bigkeoni64Author

Explorer II

This is most definitely a stump-er. Not sure what else to try.

ckarwei

Staff

Running a sniffer on the FMG may show us some clue here. Try filter 1443, 22, icmp and check the difference.

https://docs.fortinet.com/document/fortimanager/6.4.7/cli-reference/742130/sniffer

bigkeoni64Author

Explorer II

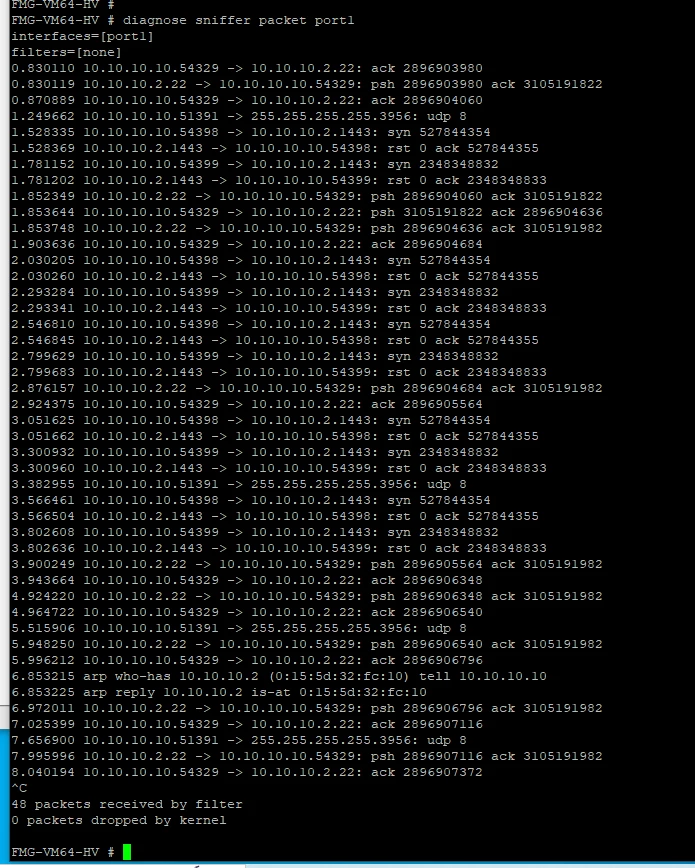

Whelp, tomorrow is another day - it does not want to seem to get past the 3 way handshake:
