Firewall Rule won't let me chose Mac Addresses as source or destination

Forum|Forum|1 year ago
March 22, 2025
5 replies
1238 views

Hi, I have 2 computers in 2 separate VLAN's, and I need to make them see each other. There are many other computers in both VLAN's but I only want these 2 specific computers to talk with each other. I made Addresses for both computers (for their mac addresses) but it doesn't let me chose that as source and destination. Any ideas ?

Thanks

firewall policy

Best answer by AEK

In the interface field put "any" and redo the test.

AEK

SuperUser

Can you post a screenshot of the MAC address object?

AEK

d3xmeister1Author

Visitor III

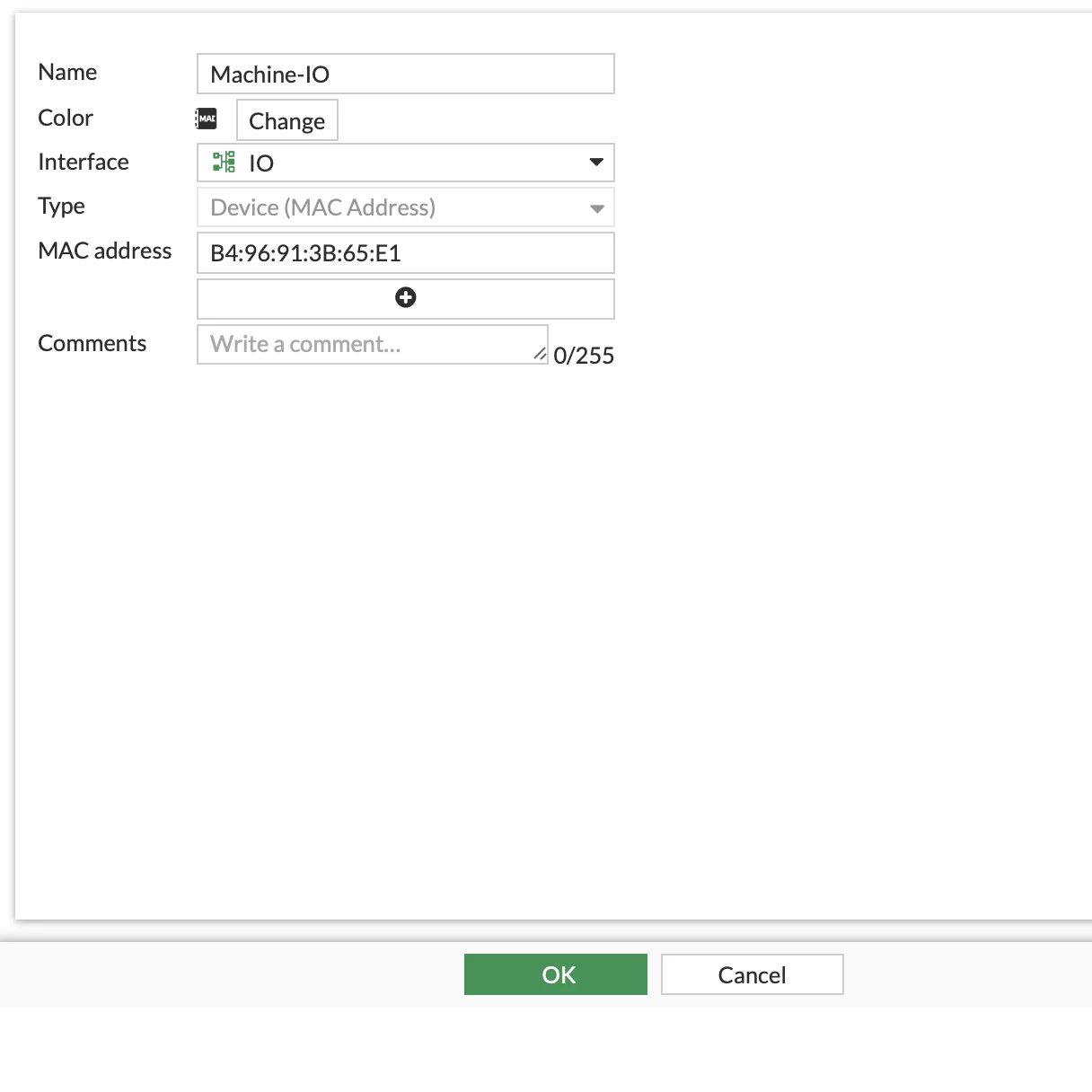

Sure, attached Screenshot 2025-03-22 at 22.32.34.png

AEKAnswer

SuperUser

In the interface field put "any" and redo the test.

AEK

d3xmeister1Author

Visitor III

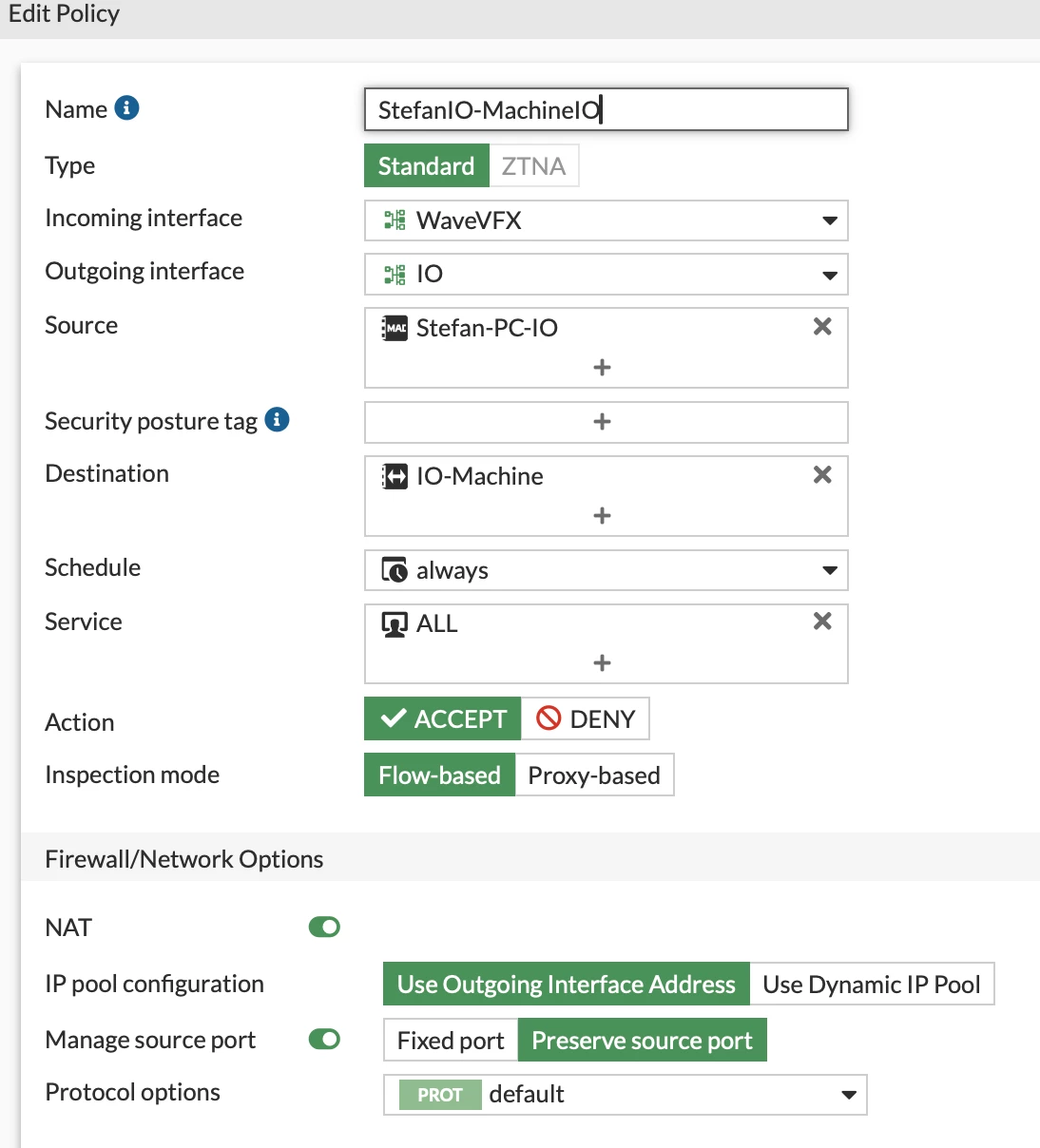

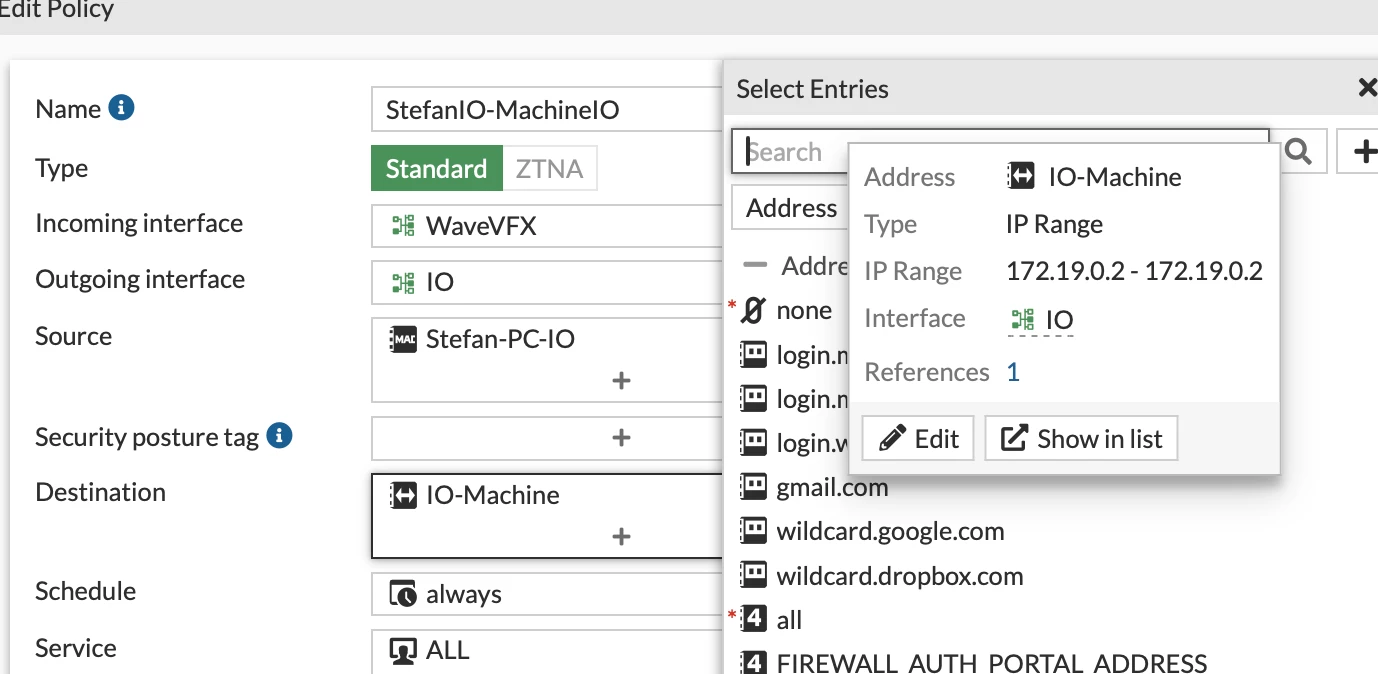

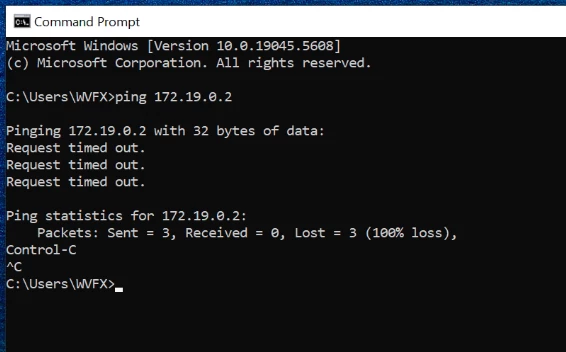

Still doesn't let me chose the Machine IO address as a destination. Here's the firewall rule I made. From WaveVFX VLAN which Stefan-PC belongs, to the IO VLAN which the Machine IO belongs. For destination I made an address with ip range which is the fixed ip of the Machine IO. But as you can see, Stefan PC cannot ping or reach Machine IO even with this rule enabled

Screenshot 2025-03-23 at 15.31.11.png Screenshot 2025-03-23 at 15.30.49.png Screenshot 2025-03-23 at 15.29.44.png
