Firewall just WON'T LET THIS TRAFFIC OUT!

Forum|Forum|5 years ago
May 21, 2021
13 replies
15630 views

Hello ya'lll.

I'm having an issue, and I have no doubt I'm missing something simple, but try as I might I can't figure it out.

I'm setting up some Policies for "bypass" to allow servers to get out to the Internet for updates for certain products, and for our RMM tool.

Thing is, I've added bypasses for HTTP (80) and HTTPS (443) for several domains (*.packages.chocolatey.org and *.activeupdate.trendmicro.com) and they STILL show up in the "DENY" log. I can't figure out why it keeps getting "blocked".

I'm sure I'm missing something simple. Any guidance it massively appreciated.

-jb

40james_FTNT

Staff

Run a debug flow and see what it says. https://docs.fortinet.com...ugging-the-packet-flow

jason1Author

New Member

Thanks for the reply.

I followed the instructions, using the IP of the site that the Fortinet Logs are showing hitting the "deny" policy, and the debug screen shows...nothing.

Undoubtedly I'm doing something wrong, because the FW is showing the traffic as being dropped in the Logs, but the debug screen shows Jack and Shiza....

Thanks again for the help. This profiel is multi-vdom and is Profile Mode, if that makes a dfference.

Yurisk

SuperUser

I'd start by looking attentively at the drop log - it says the reason for a drop, what is it?

yurisk.info - all things Fortinet blog, no ads

trixsta

New Member

Is your firewall in NGFW Mode with Central NAT?

jason1Author

New Member

No to Central SNAT. It is Multi-VDOM Profile Based (not policy based).

PTM

New Member

Quick question.

How are you matching a site such as *.packages.chocolatey.org ?

jason1Author

New Member

Thanks for the reply! I'm using FQDN and wildcard specification for this.

Specific to "chocolately.org", the FG is saying "unresolved FQDN". However, we have this same problem on many, many other domains, that do resolve the wildcard addresses.

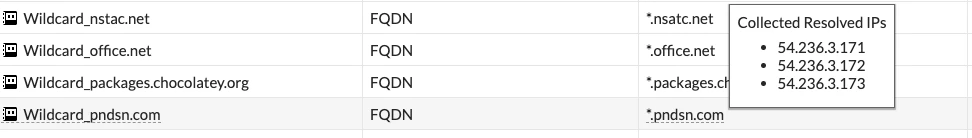

Example attached:

Screen Shot 2021-0_26 at 4_57_12 PM.png

sw2090

SuperUser

just some hint:

if you use urlfilter rules check the order and mode of your rules. Deny rules have to be the last and allowing rules have to come before it as rules are processed top down. Also if there is a deny rule in urlfilter you have to set allowing rules to "exempt" instead of "allow" to have the urrlfilter stop processing rules once it hit the first one that matched.

Otherwise traffic would be denied even if there is an allowing rule before the deny one.

Policies are processed the same way. So make sure you bypass policies come in front of the deny policy(s). Otherwise the deny policy(s) would match first and policies - so to say - are allways "exempt".
