Filter blocks only insecured web sites

  • February 12, 2020
  • 2 replies
  • 13176 views

Hello

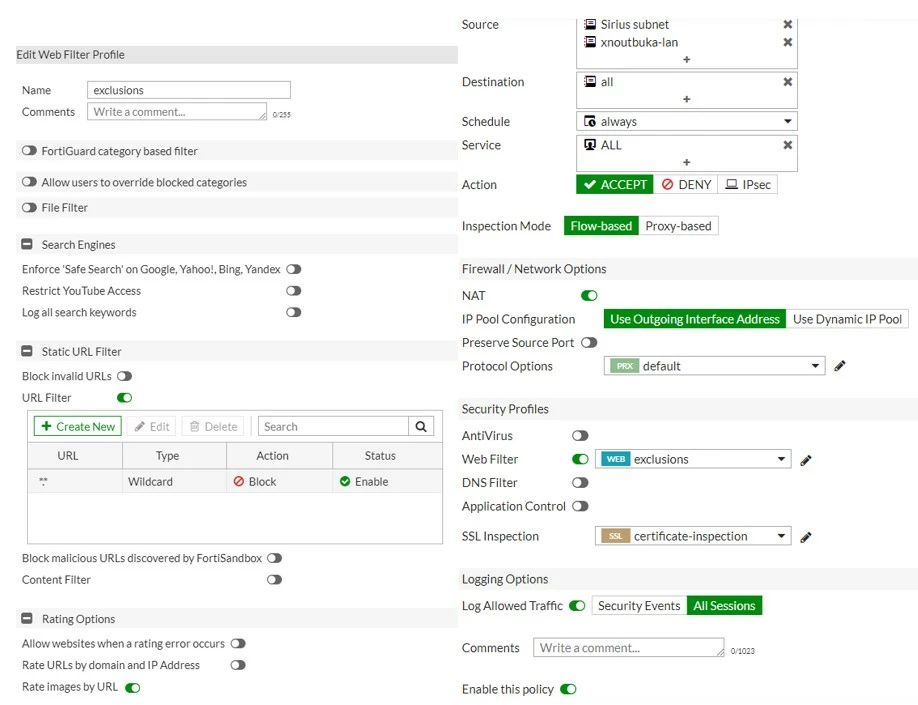

I would like to create a policy that consists of the white list URLs and a rule that block all other URLs. So I started with creating a WEB filter and added only one rule that block everything.

Then I added the filter into the policy. Unfortunately this filter blocks only insecured web sites (http) but not secured (https).



Could you please help?



Thanks



    Best answer by Johan_Witters

    Hi Zigfridus,



    like Dave already stated your Fortigate will try to inspect the ssl certificate for the CN or ALT names and match that info to your web filter settings. If the info on the certificate does not 100% match with your filter, it will not block/allow the traffic, depending on what you have set. It will not inspect the packets themselves as this is encrypted traffic and cannot be read.



    Best way to process your traffic is by enabling ssl "deep inspection", that way the Fortigate can inspect all packets and work on different levels to check and allow/block traffic according to your policies and utm profiles. It will however require you to by an official ssh certificate, or to install the self-signed fortigate certificate on your clients.



    If you can't or don't want to use deep inspection you would mainly focus on dns and webfilter to check your traffic.



    regards,



    Johan

    2 replies

    Johan_Witters
    Johan_Witters
    New Member
    February 12, 2020

    Hi,



    I recommend you to use a DNS filter if possible as it will block the name resolution itself, and not HTTP or other traffic.



    If you want to use a web filter you have to configure ssl inspection (certificate inspection or deep inspection) so the Fortigate can at least check the certificate of the website to check the url, but the browser might present a "certificate warning". This is due to the fact https traffic is encrypted so the Fortigate can't see which site the request is for.

    You can also try with a webfilter "*.*:443", but I haven't tried that myself, so I can't promise it'll work.



    Good luck,



    Johan

    zigfridus
    zigfridusAuthor
    New Member
    February 12, 2020

    Thank you Johan for your reply.

    As I understood the DNS filter parse only DNS requests. So when a user sends a request not to the WEB site name, but it's IP address then DNS filter will not block it.

    Am I right?

    zigfridus
    zigfridusAuthor
    New Member
    February 14, 2020

    I figured out something weird. Fortigate blocks https web sites but not all. For example it's successfully blocks https://itc.ua:



    2020-02-14T09:35:04.355876+02:00 192.168.60.2 date=2020-02-14 time=09:35:03 devname="fortigate" devid="xxx" logid="0315012544" type="utm" subtype="webfilter" eventtype="urlfilter" level="warning" vd="root" eventtime=1581665704323571840 tz="+0200" urlfilteridx=1 urlfilterlist="Auto-webfilter-urlfilter_qka27jppz" policyid=15 sessionid=3770186 srcip=192.168.60.17 srcport=5247 srcintf="lan" srcintfrole="lan" dstip=93.183.199.243 dstport=443 dstintf="wan1" dstintfrole="wan" proto=6 service="HTTPS" hostname="itc.ua" profile="exclusions" action="blocked" reqtype="direct" url="https://itc.ua/" sentbyte=517 rcvdbyte=0 direction="outgoing" urlsource="Local URLfilter Block" msg="URL was blocked because it is in the URL filter list" crscore=30 craction=8 crlevel="high"



    But it doesn't block https://facebook.com and https://youtube.com at all. I don't understand why the web filter's rule "*" works so selectively. Maybe it's SSL inspection allows requests.

    Johan_Witters
    Johan_WittersAnswer
    New Member
    February 28, 2020

    Hi Zigfridus,



    like Dave already stated your Fortigate will try to inspect the ssl certificate for the CN or ALT names and match that info to your web filter settings. If the info on the certificate does not 100% match with your filter, it will not block/allow the traffic, depending on what you have set. It will not inspect the packets themselves as this is encrypted traffic and cannot be read.



    Best way to process your traffic is by enabling ssl "deep inspection", that way the Fortigate can inspect all packets and work on different levels to check and allow/block traffic according to your policies and utm profiles. It will however require you to by an official ssh certificate, or to install the self-signed fortigate certificate on your clients.



    If you can't or don't want to use deep inspection you would mainly focus on dns and webfilter to check your traffic.



    regards,



    Johan

    zigfridus
    zigfridusAuthor
    New Member
    February 28, 2020

    Hello



    I've decided to enable deep inspection and installed Forigate's self-signed certificated on all PCs.

    Tomorrow I'm going to install Fortigate  as a main router.

    Hope everything will be fine.



    Thanks everyone for your advices and help.
