FGT 60F with 2 IPs on WAN1 and want to use them both

  • November 14, 2022
  • 3 replies
  • 5161 views

Hello,



I have a FGT 60F and have multiple WAN IP configured on WAN1
(Network >> Interfaces >> WAN1 ; Manual settings + "Secondary IP address" configured





Is this the right way to configure it?



The second thing:

one internal IP should route all traffic over the second WAN IP Address and all the other internal devices should route over the "normal/default" WAN IP.







Best answer by sidewaysguy14

Are the IP's in the same subnet?  If so I'd configure the subnet on the wan interface with the first IP and provided subnet mask.  Use an IP Pool specifying the second IP address and use it in policy for the single device.  In this case, if you needed the second IP to have an admin function, then list it as a secondary IP (eg. ping).





3 replies

distillednetwork
distillednetwork
Explorer II
November 14, 2022

If you are just trying to use the two IP addresses as NAT IPs, not need to do that.  Simply put the one IP address on WAN1 then in the firewall policies just enable NAT with "Use Outgoing Interface Address" for the devices that you want to use that IP.



For the other IP address, create an IP Pool.  You can then create firewall policies for those hosts and when you enable NAT, select "Use Dynamic IP Pool" and use your IP Pool instead of "Use Outgoing Interface Address"




    sidewaysguy14
    Staff
    sidewaysguy14Answer
    Staff
    November 14, 2022

    Are the IP's in the same subnet?  If so I'd configure the subnet on the wan interface with the first IP and provided subnet mask.  Use an IP Pool specifying the second IP address and use it in policy for the single device.  In this case, if you needed the second IP to have an admin function, then list it as a secondary IP (eg. ping).





      FGTuser0
      FGTuser0Author
      Explorer
      November 15, 2022

      Is this the right way??

      (exemple IPs used)

      WAN 88.88.77.70 / 255.255.255.248
      GW 88.88.77.69

      I want to use 88.88.77.70 & 88.88.77.71



      Configuration:

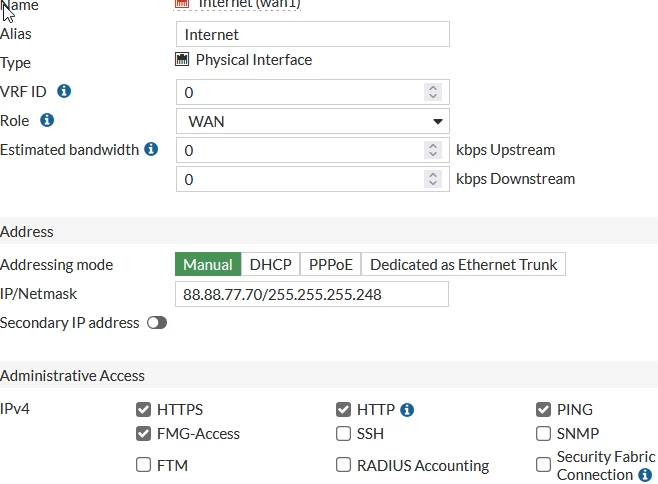

      Network > Interfaces > WAN1

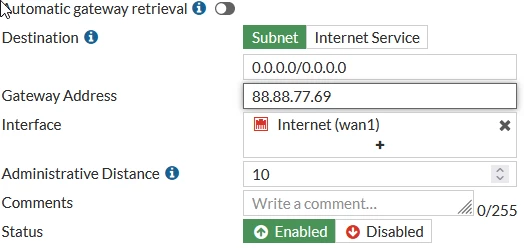

      Static Route




      IP Pool








      sidewaysguy14
      Staff
      sidewaysguy14
      Staff
      November 15, 2022

      Hi @FGTuser0



      In general yes that would be correct, with you selecting the IP Pool in the IPv4 policy.



      I think the first thing to confirm is your actual subnet info as when I double-checking the usable range would be x.x.x.65-x.x.x.70 for the x.x.x.64/29 subnet.  This would mean that your gateway would typically be the x.x.x.65 and the broadcast address would be x.x.x.71 which cannot be used as an IP.  I'd use x.x.x.66 as the IP on the wan interface and x.x.x.67 as the second IP for the IP Pool.



      But please double-check your subnet info and my math before implementing. :)



      Hope that helps!

      FGTuser0
      FGTuser0Author
      Explorer
      November 16, 2022

      Thanks!
      IP's in the screenshots are not the actual IP's. :)
